Bridge the gap between copper and fiber-optic networking infrastructure with the TRENDnet Gigabit Intelligent Fiber Media Converter (Model TFC-1000MSC). This commercial-grade network appliance functions seamlessly as a standalone desktop utility or integrated directly into enterprise server enclosures. It translates 1000Base-T structured copper cabling to 1000Base-SX multi-mode fiber strands with pristine accuracy, allowing administrators to push internal network topologies across distances up to 550 meters (1,800 feet) without structural latency.
Engineered for high-reliability backend links, the TFC-1000MSC supports Link Loss Carry Forward (LLCF) and Link Loss Return (LLR) features to guarantee instant failover tracking and zero silent drops. It features a physical multi-mode SC-type termination alongside a standard RJ-45 Gigabit drop, operating at a full-duplex transfer speed of 2000Mbps. Advanced network architecture enables it to accept high-capacity Jumbo Frames up to 10KB. When nested into the optional TRENDnet TFC-1600 16-slot chassis, this intelligent unit opens up port-level SNMP configurations to track port statuses, fiber link diagnostics, and operational performance directly from your main network control deck.
Key Features
- Long-Distance Multi-Mode Extension: Easily extends a 1000Base-T copper connection up to 550m (1,800 ft.) via 850nm multi-mode SC-type fiber optic lines.
- 2000Mbps Full-Duplex Bandwidth: Unlocks wire-speed Gigabit performance, processing simultaneous incoming and outgoing traffic without bottlenecks.
- LLCF and LLR Diagnostics Support: Integrates Link Loss Carry Forward and Link Loss Return mechanics to ensure immediate downstream alerts during physical layer link failure.
- Flexible Dual-Mode Deployment: Deploys as a compact, standalone localized desktop converter or mounts neatly as an individual node into a 16-slot TFC-1600 rack enclosure.
- Advanced SNMP Management Readiness: Monitors and configures fiber mode settings, duplex options, and link states from afar via centralized tracking (requires optional chassis and management module).
- Manual DIP Switch Configuration: Built-in front-facing hardware DIP switches provide immediate on-site control over Forced/Auto-Negotiation states and link diagnostic overrides.
- Rugged Component Construction: Encased inside a compact, durable metal protective housing optimized for clean thermal dissipation and wall-mounting options.
Technical Specifications
| Specification Category | Technical Details |
|---|---|
| Model Number | TFC-1000MSC |
| Network Standards | IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX |

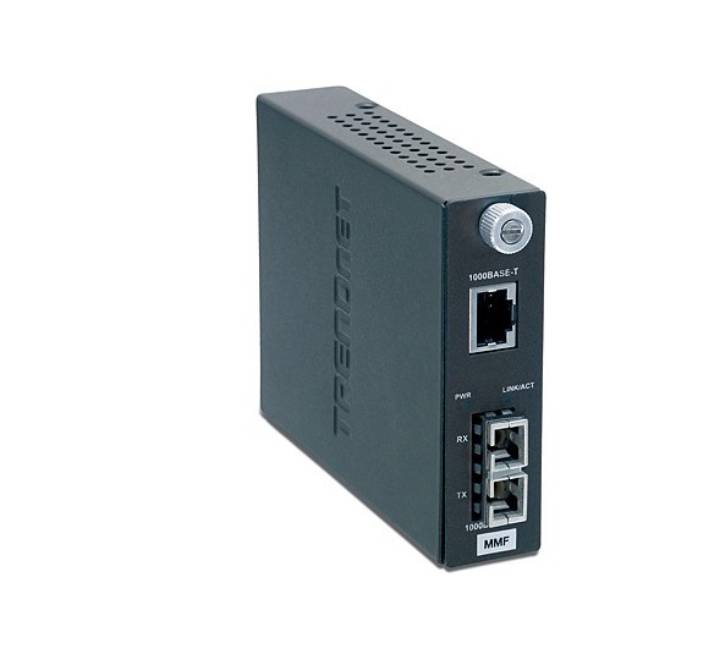

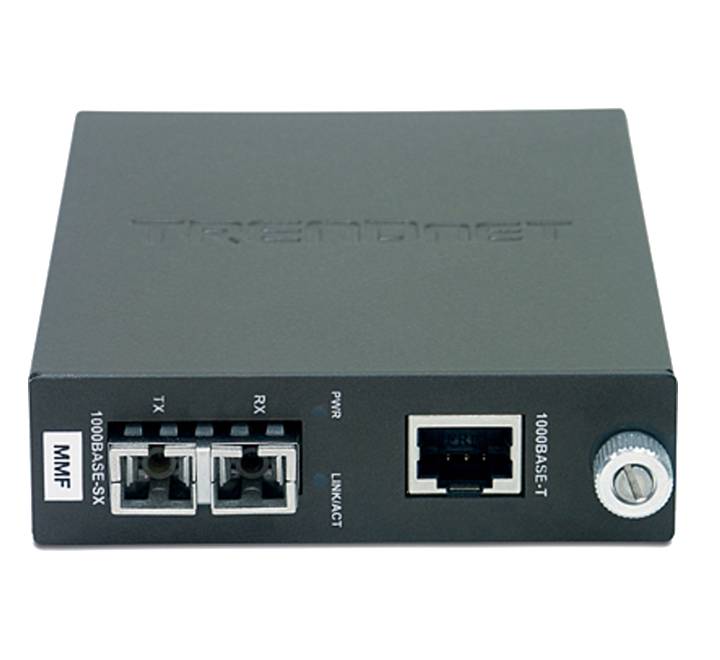

| Physical Interfaces | 1 x 1000Base-T RJ-45 copper port 1 x 1000Base-SX Multi-Mode SC-type fiber port |
| Wavelength & Optical Distance | 850nm optical wavelength | Up to 550 meters (1,800 ft.) maximum transmission distance |
| Data Transfer Rate | 2000Mbps Full-Duplex Mode auto-negotiated |
| Supported Frame Size | Standard Ethernet up to 10KB Jumbo Frames |
| Diagnostic Protocols | LLCF (Link Loss Carry Forward), LLR (Link Loss Return) |
| Hardware DIP Switches | Switch 1: Fiber Mode (Forced / Auto-Negotiation) Switch 2: LLR Functionality (Enable / Disable) |
| Status Indicators | System: Power LED Per Port: Link / Activity Status LED indicators |
| Power Input & Draw | External Power Adapter (5V DC, 1A) | Max. Power Consumption: 2.7 Watts |
| Dimensions & Weight | 120 x 88 x 25 mm (4.7 x 3.46 x 0.98 in.) | 354g (12.5 oz.) |
| Compliance Certifications | CE, FCC, TAA & NDAA Compliant |
| Manufacturer Warranty | 6 Months |
