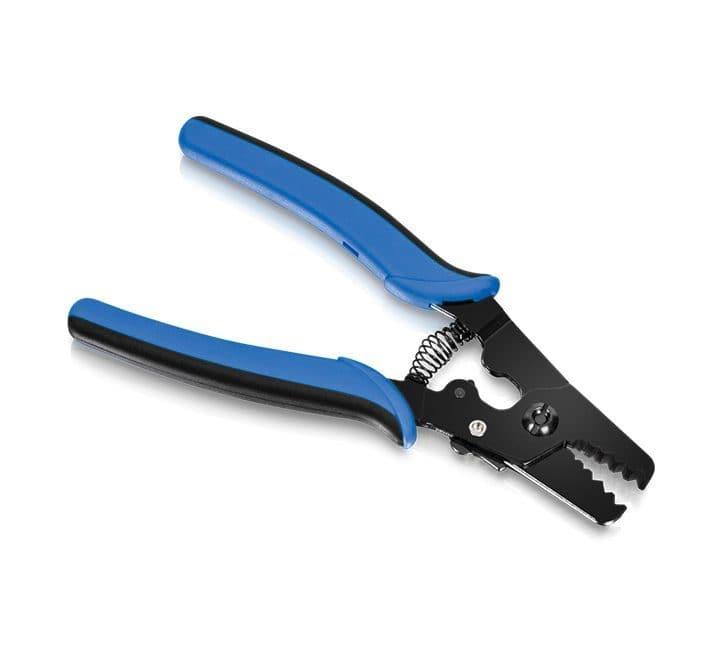

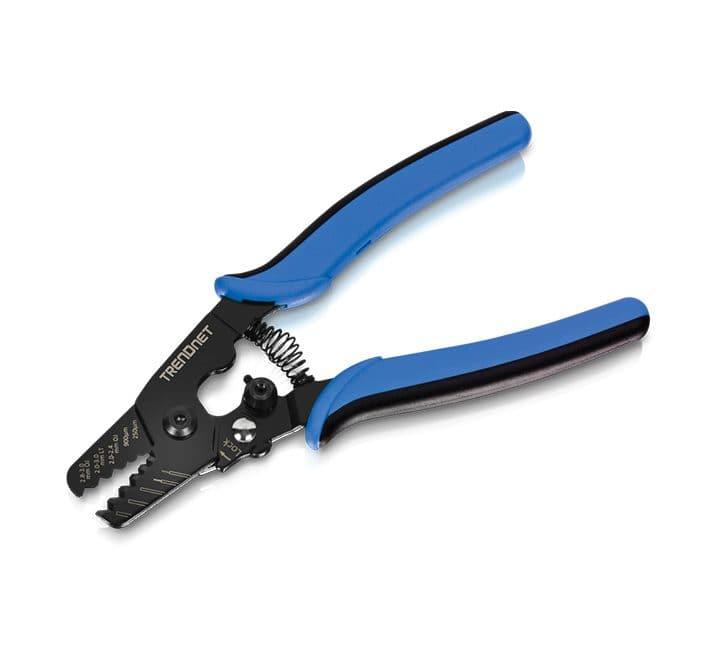

Ensure flawless terminations and clean splices with the professional-grade TRENDnet Fiber Optic Stripping Tool (Model TC-FST). Engineered explicitly for network technicians, fiber installers, and IT professionals, this versatile tool simplifies fiber preparation by performing multiple strip functions within a single, heavy-duty unit. Whether you are prepping for mechanical splicing, fusion splicing, or connector installation, the TC-FST delivers the exacting precision required to handle delicate glass fibers without causing surface damage or micro-fractures.
Constructed from high-grade, heavy-duty carbon steel, this premium tool guarantees long-lasting edge sharpness and robust field durability. It features a sequence of precisely calibrated stripping notches designed to step down cleanly through the complex layers of a fiber optic cable—efficiently slicing away everything from the rugged outer jackets down to the micron-thin internal protective coatings. Complete with an integrated lockable handle for safe storage and a high-traction rubberized handle, this tool brings optimal control and professional repeatability to your network kit.
Key Features
- Comprehensive Multi-Stage Stripping: A true all-in-one prep solution expertly engineered to strip outer cable jackets, loose buffer tubes, buffer insulation, and thin acrylate coatings.
- Outer Jacket & Loose Tube Versatility: Cleanly strips exterior jackets from 2.0mm to 2.4mm and 2.8mm to 3.0mm cabling, as well as internal loose tubes ranging from 2.0mm to 3.0mm.
- Precision Buffer & Coating Micro-Notches: Removes 900µm buffer insulation effortlessly and strips away the fine 250µm acrylate protective layer down to the bare glass core.
- Heavy-Duty Carbon Steel Build: Hardened carbon steel construction preserves notch alignment and structural integrity over thousands of repetitive field cuts.
- Ergonomic Non-Slip Grip: Wrapped in high-comfort, rubberized tactile handles that optimize leverage, prevent hand slippage, and minimize operational fatigue.
- Integrated Safety Handle Lock: Built-in safety latch securely locks the blades closed when not in use, protecting the precision edges and preventing accidental cuts inside your tool bag.
- Field-Adjustable Calibration: Built-in tuning capability allows fine adjustments to accommodate non-standard or highly specialized fiber optic cable gauges.
Technical Specifications
| Specification Category | Technical Details |
|---|---|
| Model Number | TC-FST |
| Primary Material | Heavy-duty industrial carbon steel |
| Outer Jacket Stripping Capacity | 2.0mm – 2.4mm fiber cable jackets & 2.8mm – 3.0mm fiber cable jackets |
| Loose Tube Stripping Capacity | 2.0mm – 3.0mm loose tube diameters |
| Buffer Insulation Micro-Stripping | 900µm buffer insulation (removes buffer layer cleanly without pulling on underlying acrylate) |
| Coating Micro-Stripping | 250µm acrylate coating (exposes the bare underlying glass core) |
| Handle & Grip Style | Ergonomic, dual-color rubberized comfort grip |
| Safety Mechanism | Mechanical lockable handle mechanism |
| Tool Length | 17.8 cm (7 inches) |
| Tool Weight | 130g (4.6 oz.) |
| Regulatory & Compliance | TAA & NDAA Compliant, WEEE, RoHS |
| Manufacturer Warranty | 6 Months |
