Consolidate your server infrastructure and eliminate server-room console clutter with the data-center grade TRENDnet 8-Port Stackable Rackmount KVM Switch (Model TK-801R). Designed for network operation centers (NOC), server closets, corporate IT labs, and industrial control rooms, this high-density hardware controller allows an administrator to manage up to eight independent computer nodes or server chassis using a single desktop keyboard, mouse, and high-resolution monitor. By centralizing management terminal inputs, the TK-801R drastically reduces equipment expenditures, saves premium rack space, and lowers operational power footprints.
Constructed within a rugged, 1U EIA standard 19-inch metal enclosure, this professional KVM matrix delivers ultimate scalability. It features an advanced daisy-chain stack interface that allows up to 16 compatible KVM units to be linked together, putting management access of up to 128 multi-platform servers under the command of a single master console. Administrators can toggle instantly between server nodes using convenient front-panel manual pushbuttons, rapid-fire keyboard Hot-Key commands, or an intuitive On-Screen Display (OSD) navigation menu. Equipped with intelligent microprocessor terminal emulation on every port, the TK-801R simultaneously maintains persistent keyboard and mouse signals across all unselected systems to eliminate boot-up errors and peripheral dropouts.
Key Features
- 8-Port High-Density Control: Dictate operations across 8 independent servers or workstation computers from a single shared monitor, PS/2 keyboard, and PS/2 mouse console.
- Massive Stackable Expansion: Daisy-chain up to 16 KVM stations together to scale network administration control across up to 128 corporate servers.
- Three Flexible Switching Methods: Fluidly cycle between active server nodes using physical front-panel buttons, keyboard Hot-Key commands, or a rich On-Screen Display (OSD) layout.
- Persistent Microprocessor Emulation: Simulates constant keyboard and mouse connections across all channels simultaneously, preventing system freeze-ups and boot device errors.
- Crystal Clear VGA Real Estate: High-bandwidth video circuitry supports crisp analog resolutions up to $1920 \times 1440$ pixels at an ultra-smooth 60Hz video refresh pattern.
- Programmable Auto-Scan Mode: Features customizable monitoring scan intervals ranging from 5 to 99 seconds to automatically cycle displays and oversee multi-system server tasks.
- Rugged 1U Metal Chassis: Fits perfectly into standard EIA 19-inch server racks; includes a complete heavy-duty structural rackmount hardware kit.
Technical Specifications
| Specification Category | Technical Details |
|---|---|
| Model Number | TK-801R |
| Device Connections Count | 8 x Servers / Computers (Natively stackable up to 128 systems via cascade) |

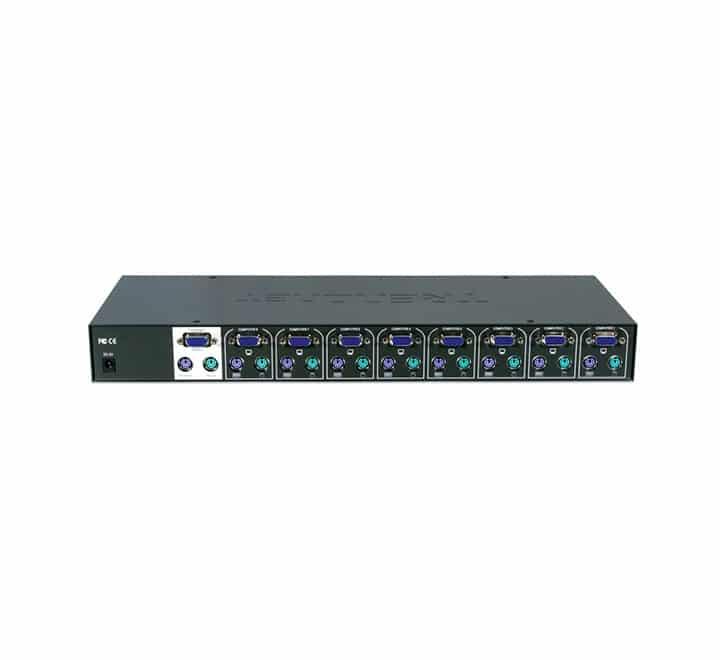

| Console Interface Ports | 1 x VGA HD-Sub 15-Pin (Female, Video) 1 x PS/2 6-Pin Mini-DIN (Female, Keyboard) 1 x PS/2 6-Pin Mini-DIN (Female, Mouse) |
| Server/PC Port Sockets | 8 x Custom high-density proprietary VGA HD-Sub 15-Pin Female connectors (Combines video, keyboard, and mouse signals per channel) |
| Daisy-Chain Stack Port | Dedicated DB25 Female cascade port loopback structure |
| Peak Dynamic Resolution | $1920 \times 1440$ pixels maximum resolution; 200MHz video bandwidth profile |
| Auto-Scan Tracking Sequence | User-programmable stepping parameters from 5 seconds up to 99 seconds |
| Server Operating System Support | Windows®, Linux, Unix, NetWare, DOS, and traditional legacy platform kernels |
| Power Supply Input | 9V DC, 600mA external hardware power adapter |
| Front Panel Controls | 8 x Port selection pushbuttons, 8 x Orange LED Online status links, 8 x Green LED Selected status active nodes, Power indicator pin |
| Enclosure Form Dimensions | 407 x 165 x 45 mm (16.0 x 6.5 x 1.8 inches) — Standard 1U Rack Height |
| Net Structural Weight | 2.04 kg (4.5 lbs) durable industrial steel casing build |
| Certifications | CE, FCC Mark, RoHS Directive Compliant, NDAA Compliant |
| Manufacturer Warranty Protection | 6 Months |
