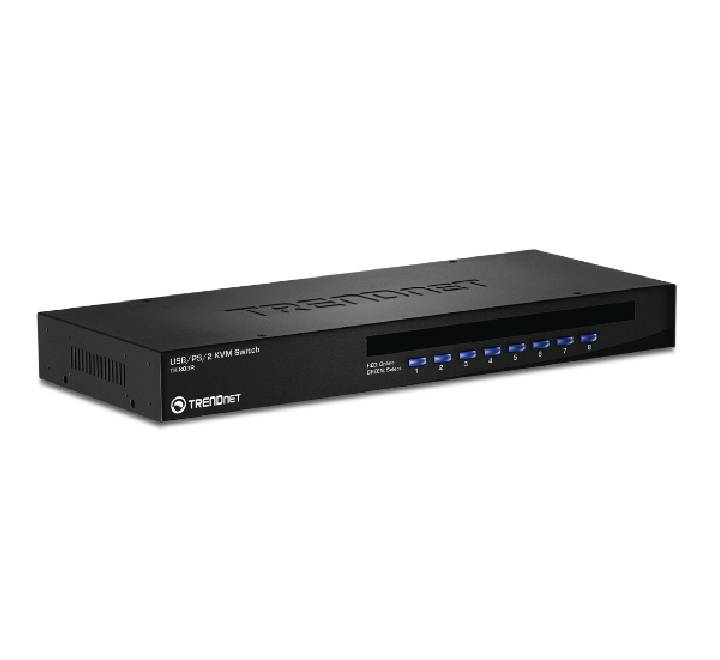

Streamline your server room operations and declutter your workstation with the TRENDnet 8-Port Rackmount USB KVM Switch (Model TK-803R). This commercial-grade, 1U rackmount KVM switch allows an administrator to seamlessly monitor and manage up to 8 computers, servers, or workstations using just a single set of keyboard, monitor, and mouse controls. Engineered for high-density IT environments, server racks, and data centers, the TK-803R eliminates the costly overhead of purchasing individual peripherals while dramatically maximizing functional workspace.
The TK-803R offers outstanding hardware flexibility by providing universal support for both USB and PS/2 console connections on the user-control side, alongside an optimized USB-only interface on the PC server side. Cross-platform compatibility ensures that your Windows, Linux, and Mac OS systems run effortlessly together under a single control unit. With on-the-fly Hot-Pluggable functionality, you can effortlessly add or remove connected servers without having to power down the switch, completely mitigating costly infrastructure downtime.
Key Features
- Consolidated 8-Port Server Control: Control up to 8 distinct computers or rack-integrated servers from a unified desktop workstation console.
- Flexible Console Support: Designed with a versatile console interface that supports both legacy PS/2 and modern USB standards for mouse and keyboard peripherals.
- High-Resolution VGA Output: Delivers crisp, high-fidelity analog video quality supporting sharp resolutions up to 2048 x 1536 for clear server monitoring.
- Dual Switching Methods: Toggle between channels with maximum convenience using front-panel push buttons or automated keyboard hot-key commands.
- Zero Downtime Hot-Plugging: Add, swap, or disconnect target computers and servers on the fly without interrupting the KVM switch power cycle.
- Adjustable Auto-Scan & LEDs: Set your custom automated scanning sequences (variable intervals from 10 to 99 seconds) with clear, instant audio feedback and front-facing status LEDs.
- 1U Rack-Ready Chassis: Durable, heavy-duty metal 19-inch 1U enclosure cleanly integrates into standard enterprise networking server racks (rackmount kit included).
Product Overview & Setup Video
Technical Specifications
| Specification Category | Technical Details |
|---|---|
| Console Ports (Local Control) | 1 x USB Type-A (Keyboard), 1 x USB Type-A (Mouse), 1 x PS/2 (Keyboard), 1 x PS/2 (Mouse), 1 x VGA HDB 15-pin (Female) |
| Computer Interface Ports (x8) | Keyboard/Mouse: USB Type-A connection via proprietary KVM cabling Monitor: VGA HDB 15-pin (Female) |
| Maximum Video Resolution | Up to 2048 x 1536 VGA resolution |
| Switching Methods | Front-Panel Manual Push Buttons & Programmable Keyboard Hot-Key Commands |
| Operating Systems Supported | Windows®, Linux®, Mac OS®, Unix, and more |
| Auto-Scan Interval | Adjustable cycle between 10 to 99 seconds |
| Power Adapter | Input: 100 – 240V AC, 50/60Hz, 0.8A Output: 9V DC, 1.33A External Power Adapter (Max. consumption: 0.7W) |
| Enclosure & Form Factor | Sturdy Metal, Standard 19-inch 1U Rackmount form factor |
| Dimensions & Weight | 407 x 165 x 45mm (16 x 6.5 x 1.8 in.) | 1.8kg (4 lbs.) |
| Certifications & Standards | CE, FCC, TAA & NDAA Compliant | Package Contents | TK-803R, Quick Installation Guide, Power Adapter, 19" Rackmount Hardware Kit |
