PoE+ Power
A 65W PoE power budget supports up to eight Power over Ethernet devices.
Description
_1.jpg)
- Easy installation
- 8 x Gigabit PoE+ ports
- Enable the DIP switch to extend PoE+ signal up to 200m (656 ft.) at 10Mbps
- DIP switch supports VLAN port isolation and QoS
- 16Gbps switching capacity
- 65W PoE budget
- Wall mountable design
- Sturdy metal switch
- Use with TRENDnet's PoE splitter to network and power non-PoE devices
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3p
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
- Device Interface
- 8 x Gigabit PoE+ ports
- LED indicators
- DIP switch
- Data Transfer Rate
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit Ethernet: 2000Mbps (full duplex)
- Performance
- Switch Fabric: 16Gbps
- RAM Buffer: 192KB
- MAC Address Table: 4K entries
- Jumbo Frames: 9KB
- Forwarding rate: 11.9Mpps (64-byte packet size)
- Special Features
- Long range PoE+ up to 200m at 10Mbps
- VLAN port isolation
- 802.1p Class of Service (CoS)
- Wall mountable
- Power
- Input: 100 – 240 V AC, 50/60Hz, 2.5A
- Output: 55V DC, 1.3A external power adapter
- Max. consumption: 70.6W
- PoE
- PoE budget: 65 Watts
- PoE Mode A: Pins 1,2 for power and pins 3,6 for power
OVERVIEW

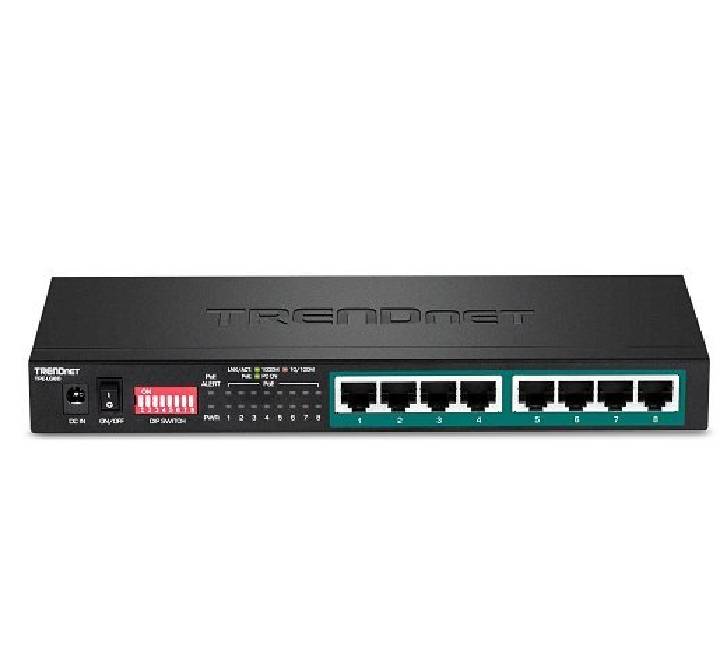

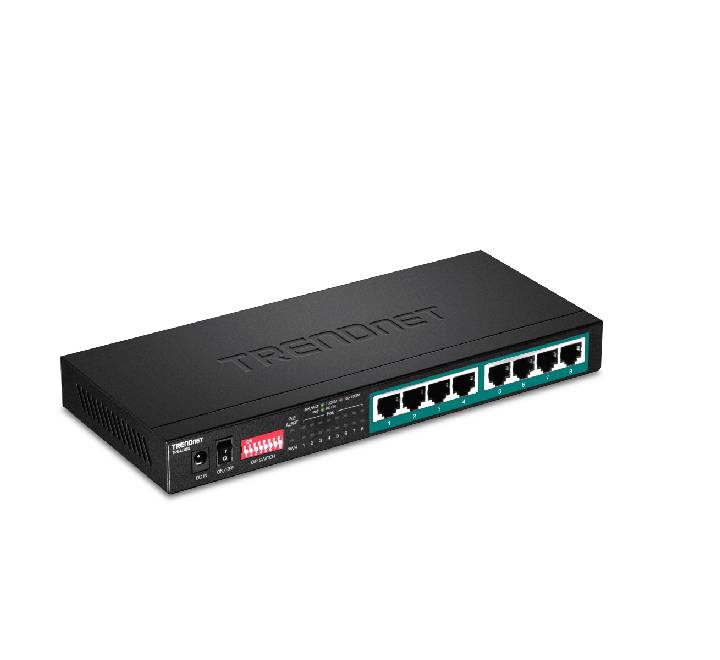

The 8-Port Gigabit Long Range PoE+ Switch, model TPE-LG80, delivers data and power over Ethernet cables to PoE devices such as access points, VoIP phones, and IP cameras. It supports both PoE and PoE+ devices with a 65W PoE power budget. Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps for long distance PoE installations. Plug and play this sturdy metal switch for reliable high-speed PoE networking. Its fanless design is perfect for quiet environments that require silent operation.
Gigabit
Eight gigabit ports provide a 16Gbps switching capacity to support edge network installations.
Long Range PoE+ Switch
Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps.
PoE+
Supplies up to 30W of PoE+ power per PoE port with a 65W total power budget
Ports
Eight gigabit PoE+ ports
Long Range PoE+ Switch
Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) for long distance PoE installations
Port Isolation
Ideal for surveillance networking applications, the DIP switch also enables port isolation
Switching Capacity
16Gbps switching capacity
Housing
Wall mountable metal housing
LED Indicators
LED indicators convey PoE and port status
