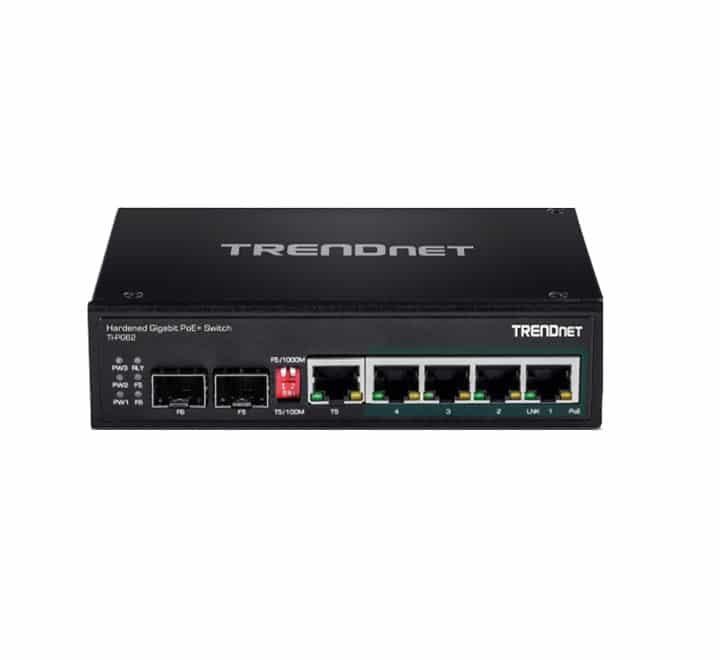

The TRENDnet TI-PG62 6-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch is a heavy-duty, unmanaged network switch engineered for deployment in high-demand industrial, automation, and outdoor surveillance environments. Equipped with a rugged IP30-rated metal enclosure, this resilient hardware platform delivers both high-speed data transfer and robust Power over Ethernet capability to connected devices, operating reliably even under intense physical stress and environmental fluctuations.
This industrial switch features four dedicated Gigabit PoE+ ports capable of supplying up to 30W of power per port, providing an efficient way to network power-hungry edge equipment like PTZ IP cameras, wireless access points, and physical access control panels. For long-distance backhaul connectivity, it incorporates a flexible layout consisting of one dedicated Gigabit SFP slot alongside a shared Gigabit port (RJ-45 or SFP) to enable high-bandwidth fiber optic links directly to your core network infrastructure.
Built for continuous uptime, the TI-PG62 features dual redundant power inputs with overload current protection, ensuring seamless failover if your primary power line drops. An integrated master alarm relay contact can be wired to trigger automatic physical alerts during a power disruption event. With high resistance to extreme heat, cold, vibration, and mechanical shock, it is optimized for cabinet installations utilizing standard integrated DIN-rail or wall-mount tracking hooks.
Key Features
- Industrial Grade Hardened Frame: Built using a rugged IP30-rated compact metal enclosure engineered to withstand high vibration, mechanical drop forces, and heavy shocks.
- 120-Watt Power Budget: Supplies up to 30 Watts of dedicated IEEE 802.3at PoE+ power per port across its four Gigabit Ethernet channels to easily drive high-draw industrial endpoints.
- Flexible Fiber Integration: Designed with one dedicated Gigabit SFP slot and one shared Gigabit port (RJ-45/SFP) to accommodate long-range multi-mode or single-mode fiber line links.
- Extreme Temperature Resilience: Engineered to function flawlessly in unconditioned industrial enclosures across an extreme operational range of -40°C to 75°C (-40°F to 167°F).
- Dual Redundant Power Inputs: Features a 6-pin removable terminal block that accepts primary and backup DC inputs with built-in current overload protection to maximize network uptime.
- Hardware Alert Relay Contact: Equipped with an automated output relay that closes or opens a diagnostic warning circuit to notify technicians immediately during an input power failure.
- High ESD and Surge Shielding: Features advanced integrated structural protection against electrostatic discharge (ESD) up to 8kV and line surges up to 2kV.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TI-PG62 |
| Standards | IEEE 802.3 (10Base-T) IEEE 802.3u (100Base-TX) IEEE 802.3ab (1000Base-T) IEEE 802.3z (1000Base-SX/LX) IEEE 802.3x (Flow Control) IEEE 802.3af (PoE) IEEE 802.3at (PoE+) |
| Device Interfaces | 4 x Gigabit PoE+ ports 1 x Shared Gigabit port (RJ-45 or SFP) 1 x Dedicated SFP slot 6-pin removable terminal block LED diagnostic status array Grounding point |
| PoE Performance | PoE Budget: Up to 120 Watts (at 56V DC supply parameters) PoE Pin Assignments: Mode A (Pins 1, 2, 3, and 6) |
| Switching Capacity | 12 Gbps fabric matrix | 1024KB Data RAM Buffer | 1K MAC Address Entries | 9KB Jumbo Frame support |
| Power Input Requirements | 48 to 56V DC power inputs (Power supply sold separately — compatible with TI-S12048, TI-S24048, or 48VDC3000 blocks) Max. Consumption: 5.76 Watts (with no active PoE load) |
| Alarm Relay Contact | Relay output with a current carrying capacity of 1A at 24V DC (triggers an open circuit sequence if power failure occurs) |
| Environmental Ratings | Operating Temp: -40°C to 75°C (-40°F to 167°F) Operating Humidity: Max 95% non-condensing Shock/Vibration/Freefall Compliance: IEC 60068-2-27 / -6 / -32 |
| Chassis Footprint | 143 x 105 x 36 mm (5.6 x 4.1 x 1.4 in.) | 500 g (1.1 lbs) | Fanless Passive Metal Design |
