Streamline your workstation and reclaim valuable desk space with the TRENDnet TK-400K 4-Port PS/2 KVM Switch Kit. Designed for multi-PC setups, server management, and IT testing environments, this compact hardware solution allows you to effortlessly control up to four computers using just a single PS/2 keyboard, VGA monitor, and PS/2 mouse.
With its true plug-and-play functionality, the TK-400K eliminates the hassle of constant cable swapping. Switch between active systems in seconds using the convenient physical push-buttons on the unit or customizable hot-key commands right from your keyboard. The device also features PS/2 emulation to prevent boot errors, ensuring that your background computers remain stable and fully functional even when they aren't actively selected.
Key Features
- 4-Port Workstation Control: Manage four separate computers using one monitor, keyboard, and mouse console setup.

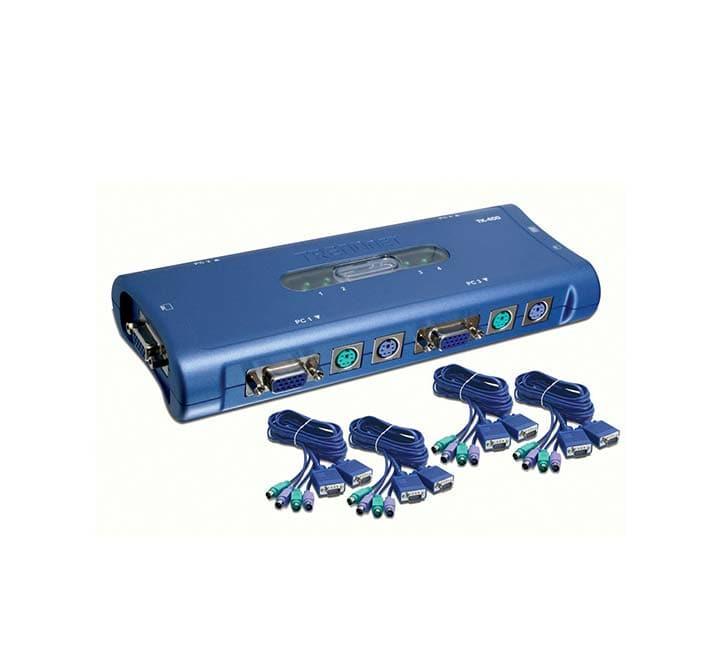

- Complete Kit Included: Comes bundled with four sets of high-grade 1.8M (6ft.) VGA and PS/2 KVM combo cables to save you time and money.
- High Video Resolution: Supports crystal-clear analog display outputs up to 1920 x 1440 pixels with a 200MHz bandwidth.
- Flexible Switching Options: Toggle between computers on the fly using integrated device push-buttons or rapid keyboard hotkey commands.
- Auto-Scan & Audio Feedback: Monitor background PCs hands-free with a 4-second auto-scan interval and helpful audible beeps confirming your connection ports.
- Hot-Pluggable Maintenance: Add, swap, or remove connected PCs for maintenance without powering down the KVM switch or interrupting your surrounding operating workflows.
- Bus-Powered Simplicity: Draws its power directly from the connected computer ports, completely removing the need for bulky external wall adapters.
Product Overview Video
Technical Specifications
| Specification | Details |
|---|---|
| Hardware Management | Controls up to 4 Computers |
| Cables Included | 4 Sets of 1.8M (6ft.) VGA & PS/2 KVM Cables |
| Cable Interface (To KVM) | 1 x PS/2 Mouse (6-pin Mini-DIN), 1 x PS/2 Keyboard (6-pin Mini-DIN), 1 x VGA/SVGA HDB (15-pin) - All Male |
| Cable Interface (To PC) | 1 x PS/2 Mouse (6-pin Mini-DIN), 1 x PS/2 Keyboard (6-pin Mini-DIN), 1 x VGA/SVGA HDB (15-pin) - All Male |

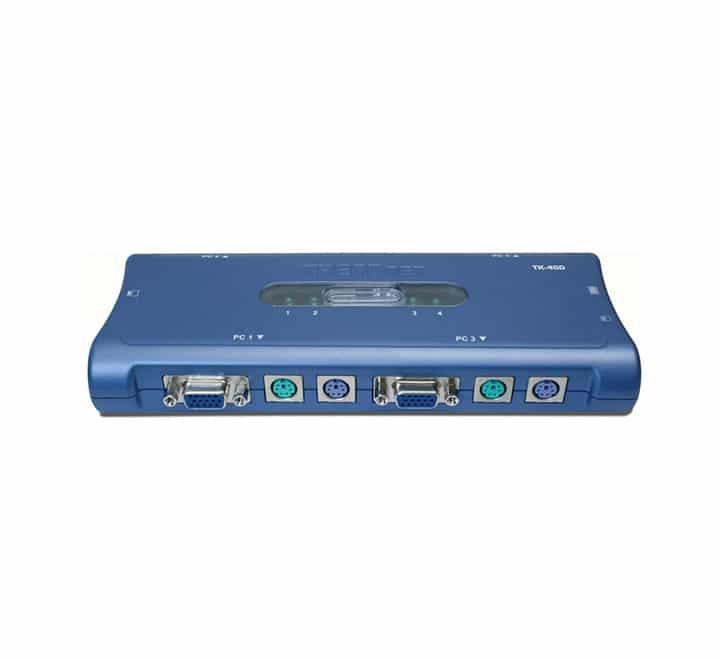

| Console Ports (Female) | 1 x PS/2 Mouse, 1 x PS/2 Keyboard, 1 x VGA/SVGA HDB 15-pin |
| Port Selection | Face-panel Push Buttons and Keyboard Hot-Key Commands |
| Auto-Scan Interval | 4 Seconds |
| Video Resolution | Up to 1920 x 1440 with 200MHz bandwidth |
| Power Type | Bus-Powered (Optional 9VDC 800mA external adapter not included) |
| Dimensions | 192 x 81 x 31 mm (7.5 x 3.2 x 1.2 in.) |
| Weight | 240g (8.5 oz.) |
| Certifications | CE, FCC |
