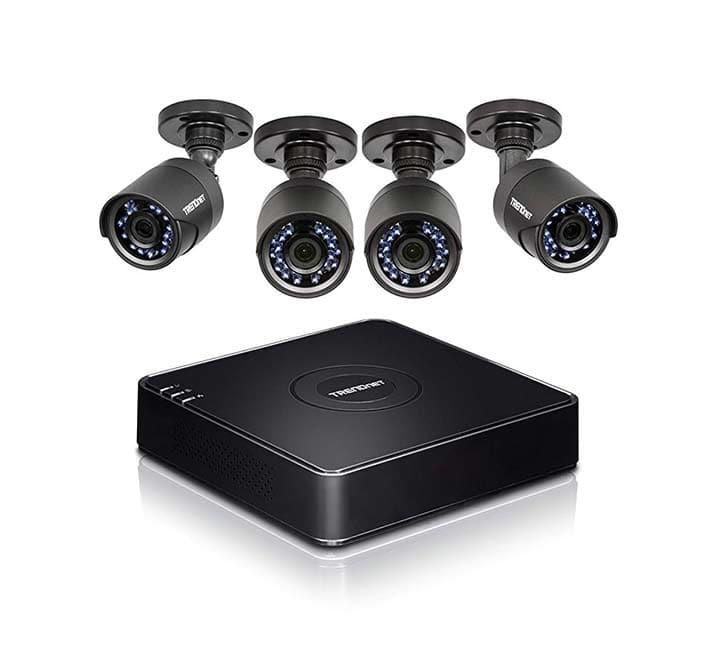

Deploy a comprehensive, high-definition security perimeter around your home or business with the commercial-grade TRENDnet 4-Channel HD CCTV Analog DVR Surveillance Kit (Model TV-DVR104K). This turnkey hardware bundle includes a robust 4-channel digital video recorder (DVR) pre-installed with a 1TB security-grade hard drive, paired with four indoor/outdoor high-definition bullet cameras. By providing all necessary cabling and hardware power configurations in a single box, this plug-and-play monitoring station removes the guesswork from setting up local video architectures.
Each of the four included surveillance cameras features a rugged IP66 weather-rated housing designed to withstand severe outdoor environments while capturing crisp, high-definition video. Equipped with high-intensity infrared (IR) LED arrays, these cameras provide continuous night-vision recording over distances up to 20 meters (66 feet) in complete darkness. The centralized DVR manages multi-channel recording setups with advanced options for motion detection tuning, scheduling, and continuous capture modes. Optimized with advanced H.264 video compression, the pre-installed 1TB HDD stores up to 6.5 days of non-stop video across all channels simultaneously, while free mobile apps enable secure, real-time remote live views from anywhere worldwide.
Key Features
- Complete Turnkey Security Kit: Packs a 4-channel HD DVR station, 4 weather-sealed bullet cameras, power adapters, and 4 premium 18.3m (60-foot) BNC/power combo cables into one box.
- Pre-Installed 1TB Security Storage: Includes an integrated 1TB surveillance-grade hard drive optimized for continuous read/write cycles, supporting up to 6.5 days of non-stop 4-channel HD recording.
- IP66 Weatherproof Cameras: Heavy-duty camera enclosures shield delicate imaging sensors against heavy rain, dust storms, and extreme sub-zero temperatures.
- 20-Meter Infrared Night Vision: High-powered integrated IR LEDs automatically activate in low-light conditions to provide clear black-and-white nocturnal video tracking.
- Smart Motion-Triggered Recording: Saves valuable hard drive space by configuring target motion detection zones that activate video recording and dispatch immediate email warnings.
- On-the-Go Remote Monitoring: Log directly into live video feeds or play back archived footage on your iOS® or Android™ mobile devices using free network viewing apps.
- Dual-Output Monitor Support: Features native HDMI and VGA video output interfaces to display multi-camera grid screens on standard office monitors or HD televisions.
Technical Specifications
| Specification Category | Technical Details |
|---|---|
| Model Number | TV-DVR104K |
| DVR Video Video Channels | 4 x BNC Interface analog input channels |
| Monitor Output Ports | 1 x HDMI Port (Up to 1920 × 1080 resolution) 1 x VGA D-Sub 15-Pin Port (Up to 1920 × 1080 resolution) |
| Audio Interface Ports | 1 x RCA Input (For microphone connection) 1 x RCA Output (For audio playback line) |
| Compression Architecture | H.264 Video Compression standard tracking |
| Internal Storage Subsystem | 1TB Pre-installed SATA 3.5-inch Surveillance HDD (Supports expansion up to 6TB total capacity) |
| Camera Sensor Resolution | 720p High-Definition analog video capture |
| Camera Weather Rating | IP66 Certified waterproof dust-tight structural chassis |
| Night Vision Performance | Smart IR night illumination tracking up to 20 meters (66 feet) away |
| Network LAN Interface | 1 x Fast Ethernet RJ-45 10/100Mbps port (For router/internet bridge connection) |
| Auxiliary Data Connections | 2 x USB 2.0 Type-A interfaces (For mouse manipulation and system archiving backups) |
| Bundled Cable Matrix | 4 x 18.3-meter (60-foot) integrated BNC data and DC electrical power combo lines |
| DVR Box Dimensions | 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inches) |
| Camera Body Dimensions | 70 × 154 × 61 mm (2.8 × 6.1 × 2.4 inches) per camera unit |
| Regulatory Certifications | CE, FCC Mark, RoHS Directive Compliant |
| Manufacturer Warranty | 6 Months |
