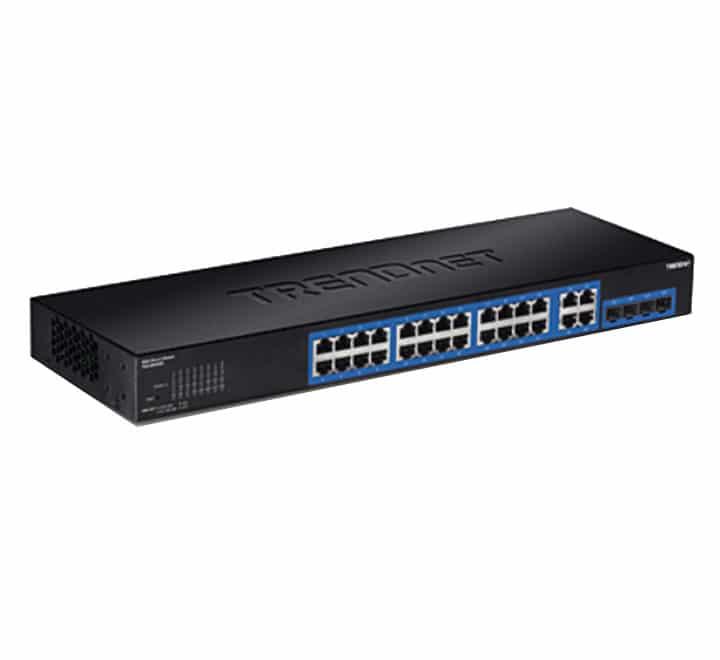

The TRENDnet TEG-284WS 28-Port Gigabit Web Smart Managed Switch delivers an advanced L2+ networking backbone engineered to meet the evolving traffic demands of growing small-to-medium businesses (SMB). Outfitted with 24 dedicated Gigabit RJ-45 ports and 4 shared Gigabit ports supporting either RJ-45 or SFP fiber modules, this switch offers exceptional integration flexibility. It gives network administrators deep, granular control over their corporate infrastructure without the complexity of traditional enterprise systems.
Designed to optimize and secure your operations, the TEG-284WS features an intuitive web-based GUI management interface as well as compatibility with the TRENDnet Hive remote cloud platform for offsite monitoring and configuration. Packed with robust traffic management tools—such as L2+ IPv4/IPv6 static routing, 802.1Q VLAN segmentation, Voice VLAN prioritization, and Link Aggregation (LACP)—this fanless 1U rackmountable switch balances silent operation with heavy-duty commercial performance.
Key Features
- 56Gbps Switching Capacity: High-bandwidth non-blocking fabric effortlessly processes large data sets across all 28 ports simultaneously without experiencing latency or packet delays.
- Shared SFP Fiber Slots: Includes 4 shared Gigabit SFP expansion ports to deploy long-distance fiber optic connections back to your core server infrastructure or remote nodes.
- Advanced L2+ Management & Routing: Offload resource demands from your main router by utilizing onboard L2+ static routing protocols to manage Inter-VLAN traffic at the switch level.
- TRENDnet Hive Cloud Integration: Compatible with centralized remote cloud management ecosystems to monitor system health, check memory utilization, and tweak settings from any browser.
- Optimized Voice Performance: Built-in Voice VLAN technology isolates and automatically prioritizes critical VoIP traffic from traditional web data to guarantee crystal-clear calls.
- Layered Access Security Control: Shields your architecture against malicious intrusions via Dynamic ARP Inspection, Access Control Lists (ACL), 802.1X authentication, and DHCP Snooping.
- Fanless 1U Hardware Housing: Encased inside a heavy-duty, compact metal chassis with a passive fanless cooling design that guarantees completely silent deployment in standard 19-inch racks.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TEG-284WS |
| Hardware Interfaces | 24 x Gigabit RJ-45 Ports (10/100/1000Mbps) 4 x Shared Gigabit Ports (RJ-45 or SFP Slot Combo) LED Status Indicators |
| Performance & Fabric | Switching Fabric Capacity: 56 Gbps Forwarding Rate: 41.7 Mpps (64-byte packets) RAM Buffer: 512 KB MAC Address Table: 8K Entries Jumbo Frames: 10 KB |
| Management Ecosystems | Web Browser Graphical User Interface (HTTP/HTTPS), TRENDnet Hive Cloud (subscription based), SNMP v1/v2c/v3, RMON v1, LLDP-MED, Virtual Cable Diagnostics |
| Layer 2+ Capabilities | IPv4 & IPv6 Static Routing (Up to 32 entries), Spanning Tree (STP/RSTP/MSTP), 802.3ad Dynamic LACP Link Aggregation, IGMP Snooping v1/v2/v3 |
| VLAN Architecture | 802.1Q Tagged VLAN, Asymmetric VLAN, Private VLAN (Protected Ports), Voice VLAN (10 user-defined OUIs), Up to 256 VLAN groups |
| Traffic Prioritization (QoS) | 802.1p Class of Service (CoS), DSCP, Per-Port Bandwidth Control, Queue Scheduling (Strict Priority, WRR) |
| Power & Energy Efficiency | Internal Power Supply (100 - 240V AC, 50/60Hz) | Max Consumption: 19.3 Watts | IEEE 802.3az Power Saving Control |
| Cooling Infrastructure | Fanless passive hardware ventilation design for silent operations |
| Dimensions & Weight | 440 x 180 x 44 mm (17.3 x 7.1 x 1.74 in.) | 1U Rackmountable Height | 2.2 kg (4.85 lbs.) |
| Regulatory Certifications | CE, FCC, UL |
