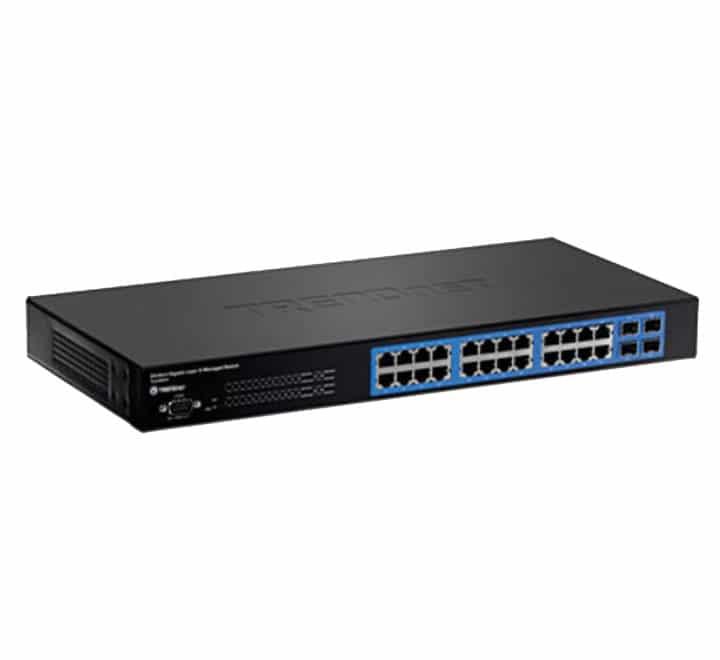

The TRENDnet TL2-G244 24-Port Gigabit Layer 2 Managed Switch delivers a reliable, high-performance foundation for managed enterprise networks. Equipped with 24 Gigabit RJ-45 ports and 4 shared SFP slots for long-distance fiber uplink configurations, this managed switch provides small-to-medium businesses with advanced traffic controls, deep security protocols, and the high-speed processing power required to eliminate corporate network bottlenecks.
Engineered for seamless administrative control, the TL2-G244 features an intuitive web-based interface alongside industry-standard Command Line Interface (CLI) management management. Packed with essential Layer 2 capabilities—including detailed VLAN segmentation, Link Aggregation for expanded bandwidth, QoS traffic prioritization, and robust security access filtering—this rackmountable switch keeps your operational infrastructure fast, secure, and resilient.
Key Features
- 48Gbps Switching Capacity: High-bandwidth fabric effortlessly processes data packets across all 24 ports concurrently without signal drop or packet latency.
- Shared SFP Uplink Slots: Includes 4 shared Gigabit SFP slots for connecting high-speed fiber modules to safely bridge remote distribution or core network nodes.
- Enterprise L2 Management: Take total control of your infrastructure via 802.1Q VLAN routing, IGMP Snooping, Link Aggregation (LACP), and Spanning Tree (STP/RSTP) architectures.
- Robust Security Filtering: Shields your perimeter using advanced Access Control Lists (ACL), IP-MAC-Port Binding, 802.1X authentication, and strict MAC address lockdown parameters.
- Smart Traffic Prioritization: Assign critical bandwidth profiles using advanced Quality of Service (QoS) management controls to ensure crystal-clear VoIP and video feeds.
- 19-Inch Rackmountable Frame: Housed inside a heavy-duty, fanless metal enclosure optimized to fit perfectly into standard 1U commercial networking racks.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TL2-G244 |
| Hardware Interfaces | 24 x Gigabit RJ-45 Ports (10/100/1000Mbps) 4 x Shared Gigabit SFP slots 1 x RJ-45 Console configuration port |
| Switching Performance | Switching Capacity: 48 Gbps Forwarding Rate: 35.7 Mpps MAC Address Table: 8K Entries |
| Management Access | Web Graphical User Interface (HTTP/HTTPS), Command Line Interface (CLI via Console/Telnet/SSH), SNMP v1/v2c/v3 |
| Layer 2 Features | Link Aggregation (up to 8 groups), Spanning Tree (STP, RSTP), IGMP Snooping v1/v2/v3, Loopback Detection |
| VLAN Architecture | 802.1Q Tagged VLAN, Asymmetric VLAN, Voice VLAN, Up to 256 VLAN groups |
| Quality of Service (QoS) | 802.1p CoS, DSCP, Queue Scheduling (Strict Priority, WRR) |
| Power Delivery | Internal power supply (100 - 240V AC, 50/60Hz) | Max consumption: 17.5 Watts |
| Fan & Cooling Architecture | Fanless passive hardware design for silent operations |
| Dimensions & Weight | 440 x 140 x 44 mm (17.3 x 5.5 x 1.73 in) | 1U Rackmount height | 2.1 kg (4.6 lbs) |
| Certifications | CE, FCC |
