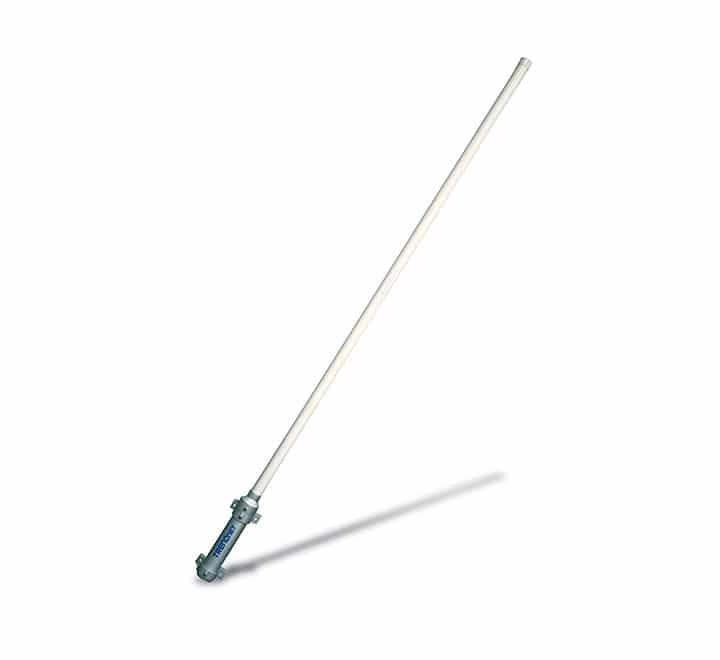

The TRENDnet TEW-AO12O 12dBi Outdoor Omni-Directional Antenna is a premium, high-gain networking accessory designed to blanket large spaces with a powerful and continuous 360-degree wireless signal. Engineered to broadcast across the 2.4GHz frequency band, this antenna effectively eliminates single-direction dead spots, making it an excellent infrastructure choice for outdoor public Wi-Fi hotspots, school campuses, resort grounds, and busy industrial yards.
Constructed to survive long-term outdoor exposure, the TEW-AO12O is built inside a heavy-duty, rustproof aluminum alloy housing capable of handling high wind speeds and extreme shifts in temperature. Equipped with an industry-standard integrated N-Type female connector, it links directly to any standard outdoor access point or wireless bridge via optional high-grade extension cabling for a lightning-fast, driverless hardware boost.
Key Features
- 360-Degree Omni-Directional Output: Projects a broad horizontal wireless blanket across all directions simultaneously, making it ideal for central network node positioning.
- High-Gain 12dBi Signal Boost: Significantly strengthens 2.4GHz network transmission and reception capabilities to stretch your effective wireless coverage radius.
- All-Weather Aluminum Housing: Ruggedized metallic structural frame is fully weatherproofed to protect your infrastructure against extreme elements, downpours, and frost.
- High Wind Resistance: Clean, aerodynamic cylindrical profile is architecturally rated to withstand harsh wind loads up to 134 mph (215 km/h).
- Universal N-Type Connection: Built-in terminal interface allows effortless coupling with standard enterprise outdoor networking hardware using standard LMR400 or equivalent cabling.
- Pole and Wall Mount Hardware Included: Complemented by an adjustable U-bolt assembly bracket kit out of the box for fast, flexible high-elevation installation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TEW-AO12O |
| Frequency Range | 2.4 GHz to 2.5 GHz |
| Antenna Gain | 12 dBi |
| Polarization | Linear Vertical |
| HPBW Beamwidth | Horizontal: 360° | Vertical: 7° |
| VSWR & Impedance | 1.92 Max (VSWR) | 50 Ohms Nominal Impedance |
| Connector Interface | N-Type Female (Connector integrated at base) |
| Power Handling | 1 Watt Max Maximum capacity input |
| Mounting Options | Pole mount or Wall mount bracket structure options |
| Operating Temperature | -30°C to 80°C (-22°F to 185°F) |
| Dimensions & Weight | 1420 x 38 mm (56 x 1.5 in) | 840 g (1.85 lbs) |
| Certifications | CE, FCC, RoHS Compliant |
