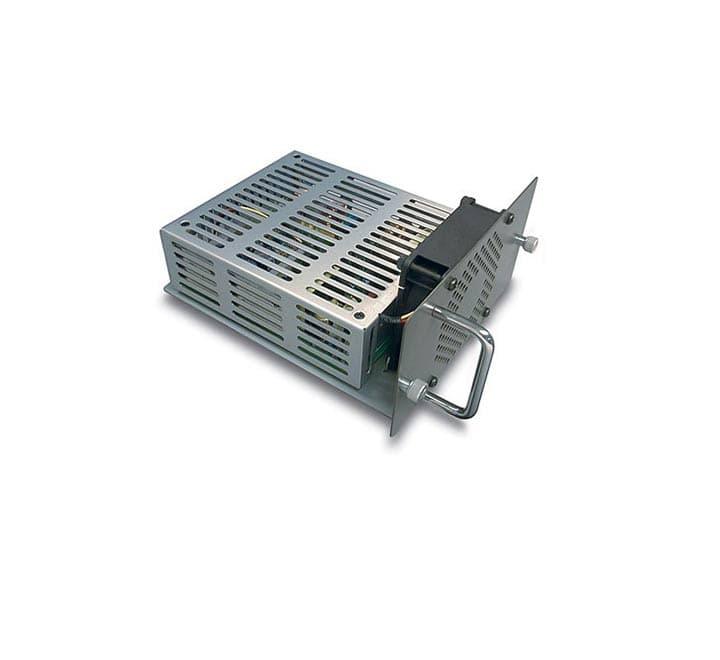

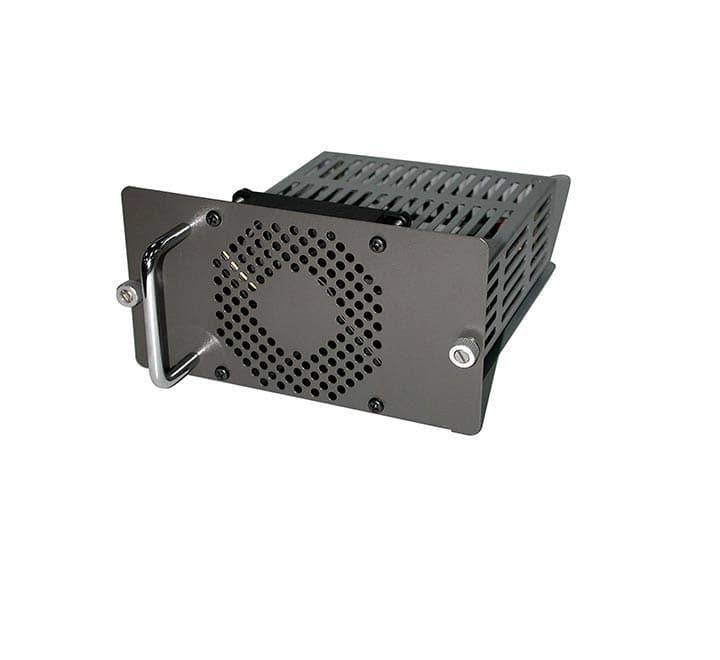

The TRENDnet TFC-1600RP Redundant Power Supply Module is engineered to deliver unwavering power reliability and ensure zero downtime for your critical enterprise fiber infrastructure. Acting as a hot-swappable power backup, this module integrates into the TRENDnet TFC-1600 16-Bay Fiber Converter Chassis System to maintain uninterrupted data transmission across your entire media converter deployment.
Designed for heavy-duty operational demands, the TFC-1600RP features built-in electrical defenses including over-voltage, over-current, and short-circuit protection to protect your backend networking investments. Its modular, plug-and-play architecture allows IT administrators to perform seamless hot-swap replacements or additions without needing to power down the chassis system or disrupt ongoing network workflows.
Key Features
- Zero Downtime Redundancy: Supplies critical power backup architecture to ensure your multi-module fiber chassis operates continuously without data dropping.
- Hot-Swappable Performance: Effortlessly slide the module into or out of the rear bays of the chassis while active—no hardware shutdowns required.
- Comprehensive Electrical Protection: Safeguards expensive fiber transceivers and internal components via active over-voltage, short-circuit, and over-current defensive micro-logic.
- Universal Voltage Compatibility: Handles standard global electrical variances comfortably via an adjustable auto-switching 100 ~ 240V AC power configuration range.
- Load Sharing Capability: Dynamically splits the electronic power delivery load when paired alongside an identical internal chassis power block to minimize system heat and wear.
- Industrial Metal Housing: Enclosed inside a heavy-duty sheet-metal casing optimized for rapid cooling and rackmount chassis integration.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TFC-1600RP |
| Device Type | Redundant Power Supply Module (Internal bay format) |
| Chassis Compatibility | TRENDnet TFC-1600 16-Slot Fiber Converter Chassis System |
| Input Voltage Range | AC 100 ~ 240V AC Auto-Switching, 50/60Hz |
| Output Power Rating | 150 Watts Max capacity draw matching full converter layout loads |
| Hardware Protections | Over-Voltage protection, Short-Circuit condition lock with automatic hardware recovery |
| Interface Type | Proprietary multi-pin chassis slide connector (Rear bay docking) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Humidity | 5% to 90% non-condensing limits |
| Housing Material | Durable industrial steel sheet metal casing |
| Compliance & Safety | CE, FCC, NDAA Compliant |
