Description

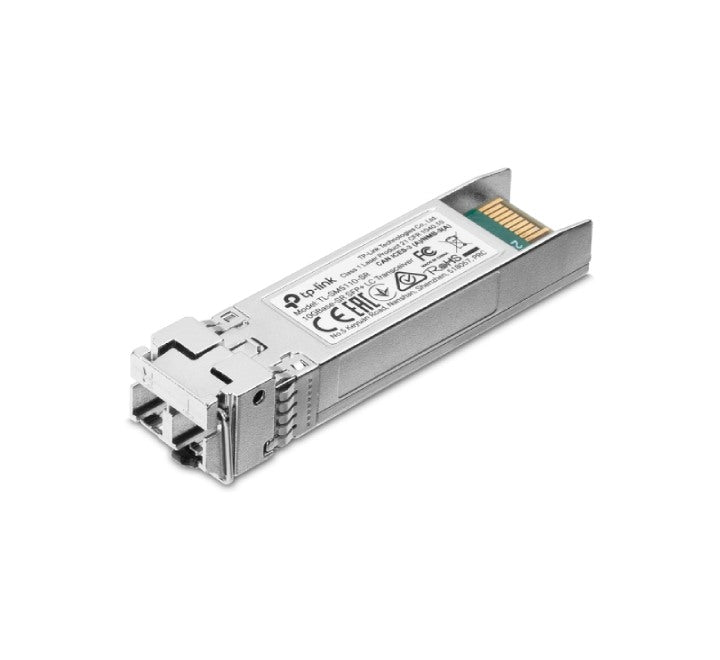

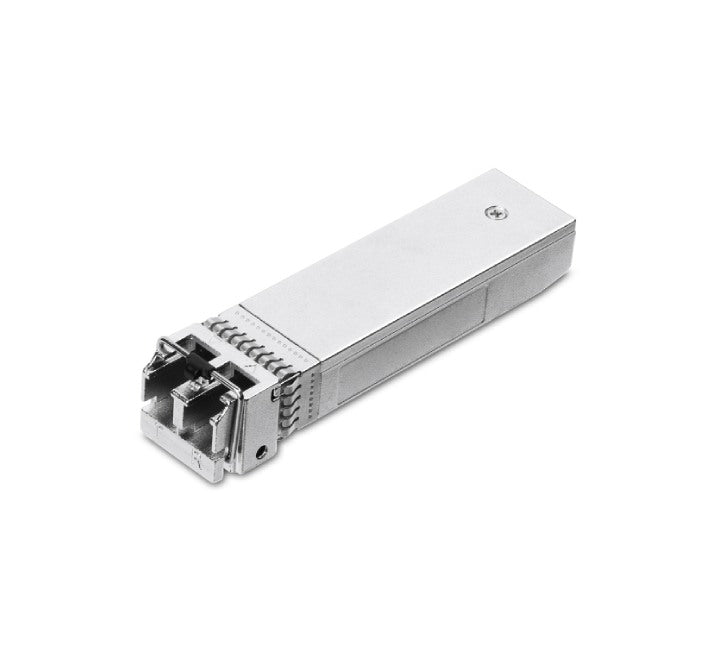

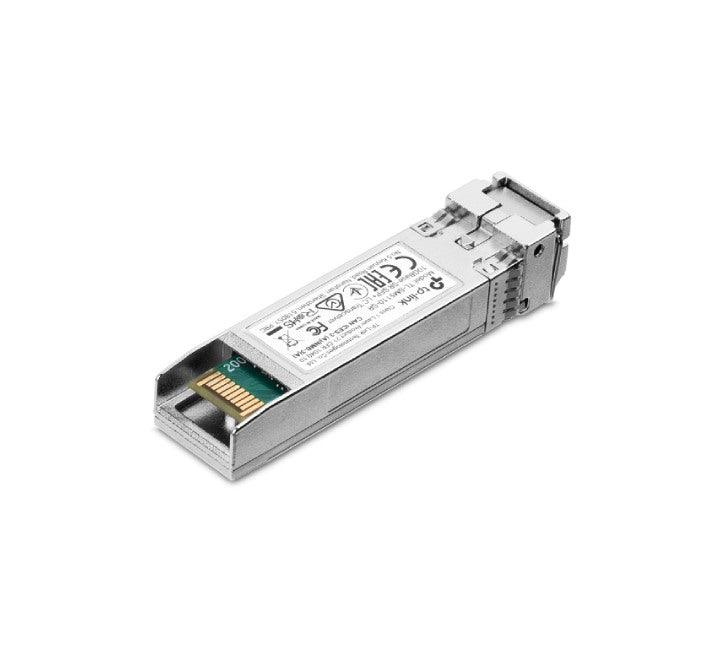

Achieve lightning-fast, high-capacity enterprise networking with the TP-Link TL-SM5110-SR 10GBase-SR SFP+ LC Transceiver. Designed to meet the demanding requirements of modern data centers, server rooms, and enterprise backbones, this high-performance 850nm multi-mode transceiver extends 10Gbps Ethernet connectivity effortlessly, ensuring low-latency and maximum throughput for key virtualized applications.
Key Features
- Blazing-Fast 10G Speeds: Unleash full 10Gbps bandwidth capacity to support virtualized environments, rapid server-to-server data transfers, and high-capacity network expansion.
- Long-Distance Multi-Mode Support: Extends full-duplex 10G Ethernet connections up to 300 meters using OM3/OM4 50/125μm multi-mode fiber, or up to 33 meters using legacy 62.5/125μm multi-mode cables.
- Hot-Pluggable Design: Maintain absolute uptime. Install or swap out this compact metal transceiver on-the-fly without needing to power down your enterprise switch, router, or server.
- Digital Diagnostic Monitoring (DDM): Supports Real-Time DDM (SFF-8472) to continuously track crucial system parameters—such as internal operating temperature, laser transmitter power, receiver optical power, and supply voltage—for simplified troubleshooting and proactive network health management.
- Universal SFP+ Compatibility: Complies with the standard 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA) for seamless interoperability. Integrates effortlessly with TP-Link JetStream and Omada switches (such as the TL-SG3428X and TL-SG3428XMP series) as well as third-party network modules.
- Low EMI Construction: Housed in a fully enclosed metallic casing to keep electromagnetic interference (EMI) at bay and guarantee stable, reliable operations in high-density rack environments.
Technical Specifications
| Specification Type | Details |
|---|---|
| Product Code | TL-SM5110-SR |
| Standards and Protocols | IEEE 802.3ae, TCP/IP, SFF-8472 |
| Form Factor | SFP+ (Hot-Pluggable) |
| Port / Connector Type | LC Duplex / LC UPC |
| Fiber Type | 50/125μm or 62.5/125μm Multi-mode |
| Wave Length | 850 nm |
| Max Cable Distance | 300m (using 50/125μm OM3 fiber) / 33m (using 62.5/125μm fiber) |
| Data Rate | 10 Gbps (Gigabit) |
| Digital Diagnostic Monitoring (DDM) | Yes (SFF-8472 compliant) |
| Power Supply | 3.3V (provided by host SFP+ slot) |
| Dimensions (W x D x H) | 2.4 × 0.6 × 0.5 inches (61.3 × 14.5 × 12.2 mm) |
| Certifications | FCC, CE, RoHS |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
