Description

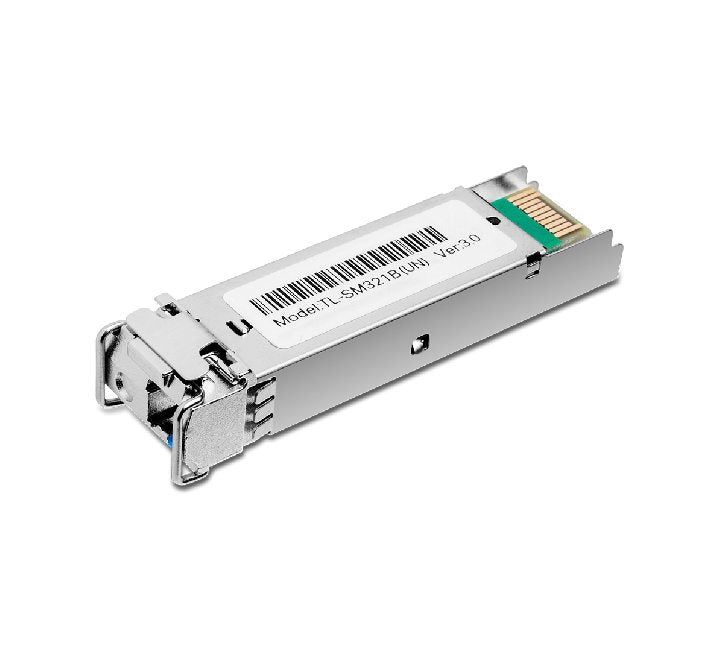

Streamline your business fiber network with the high-efficiency TP-Link TL-SM321B-2 1000Base-BX WDM Bi-Directional SFP Module. Formulated in compliance with the rigid Small Form Pluggable Multi-Source Agreement (SFP-MSA), this industrial-grade optical transceiver uses advanced Wave Division Multiplexing (WDM) to transmit and receive data concurrently over just a single single-mode fiber strand up to 2 km. It is the ultimate mini-GBIC component for expanding network ranges safely across switches, core routers, and cloud server frames without doubling cable layout costs.
Key Features & Benefits
- Advanced WDM Bi-Directional Technology: Transmits data at 1310 nm and receives at 1550 nm over a single fiber strand, cutting down infrastructure physical installation overhead by up to 50%.
- Extended Range Gigabit Throughput: Achieves highly responsive 1.25 Gbps full-duplex data paths across 9/125 μm Single-Mode Fiber (SMF) spanning up to 2 km (1.24 miles).
- Digital Diagnostic Monitoring (DDM): Complies with SFF-8472 to provide network admins real-time health metrics including interior temperature, voltage performance, laser power, and transceiver loop currents.
- Hot-Swappable Module Convenience: Designed to minimize corporate downtime by allowing operators to plug or pull out modules effortlessly without resetting switch chassis systems.
- Perfect Integration Match: Specifically engineered to work in tandem as a matched terminal pair alongside the TP-Link TL-SM321A-2 module on the opposing node endpoint.
Technical Specifications
| Specification Class | Technical Data Details |
|---|---|
| Standards & Protocols | IEEE 802.3z, TCP/IP, SFP-MSA, SFF-8472 |
| Max Data Link Rate | 1.25 Gbps (Full Duplex Mode) |
| Operating Wavelength | TX (Transmit): 1310 nm | RX (Receive): 1550 nm |
| Interface Port Type | 1 × LC Simplex Connector Type |
| Cable Medium | 9/125 μm Single-Mode Fiber (SMF) |
| Max Transmission Distance | 2 KM (1.24 Miles) |
| Power Voltage | 3.3V Low-Voltage Line Drive |
| Special Hardware Support | Digital Diagnostic Monitoring (DDM), Hot Swappable Structure |
| Safety Emissions | FCC, CE, RoHS Compliant |
| Dimensions (W x D x H) | 55.4 × 14.6 × 12.9 mm (2.2 × 0.6 × 0.5 in) |
