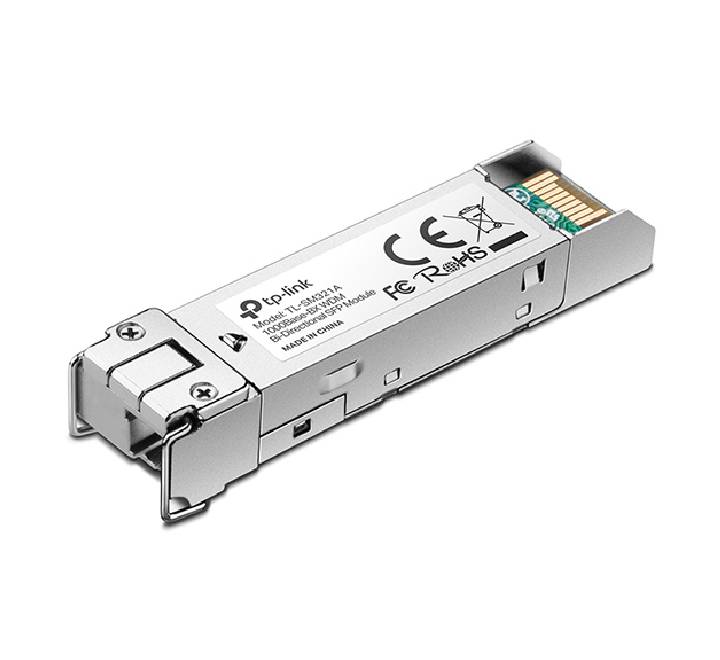

TP-Link TL-SM321A-2 1000Base-BX WDM Bi-Directional SFP Module – High-Performance Gigabit Fiber Link
Extend your commercial networking range cleanly and cost-effectively with the TP-Link TL-SM321A-2 1000Base-BX WDM Bi-Directional SFP Module . Designed for switches, routers, and enterprise servers, this high-performance MiniGBIC transceiver enables ultra-fast gigabit optical transmissions over a single strand of single-mode fiber .
By leveraging advanced Wavelength Division Multiplexing (WDM), the TL-SM321A-2 transmits data at 1550 nm and receives at 1310 nm over one single fiber strand . This cuts physical cabling deployment costs in half by removing the need for traditional dual-strand fiber configurations .
Key Features & Performance Benefits
- 2 km Transmission Distance: Transmits reliable Gigabit data speeds over 9/125 μm Single-Mode Fiber (SMF) at ranges up to 2 kilometers .
- SFP-MSA Standard Compliance: Engineered to match the global Small Form Pluggable Multi-Source Agreement, ensuring broad physical compatibility with standard SFP slots .
- Digital Diagnostic Monitoring (DDM): Features SFF-8472 compliant real-time monitoring, allowing IT managers to view critical metrics like laser temperature, transceiver current, and Tx/Rx optical power .
- Hot-Swappable Design: Offers seamless physical installation and hot-swappable module swaps without needing to power down network switches, keeping your system online .
- LC Simplex Connection: Features a secure, integrated LC Simplex connector port designed for high-density patch panel networks .
Technical Specifications
| Parameter | Specifications |
|---|---|
| Brand | TP-Link |
| Model | TL-SM321A-2 |
| Standards & Protocols | IEEE 802.3z, TCP/IP |
| Wavelength | TX: 1550 nm / RX: 1310 nm |
| Power Supply | 3.3 V |
| Safety & Emissions | FCC, CE |
| Fiber Type | 9/125 μm Single-Mode Fiber (SMF) |
| Max. Cable Length | 2 km (1.2 Miles) |
| Data Rate | 1.25 Gbps (Gigabit Speed) |
| Port Type | LC Simplex |
| DDM Support | Yes (SFF-8472 Compatible) |
| SFP-MSA Standard | Yes |
| Hot Swappable | Yes |
| Dimensions (W x D x H) | 55.4 × 14.6 × 12.9 mm (2.2 × 0.6 × 0.5 in) |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Warranty | 1 Year |
