Description

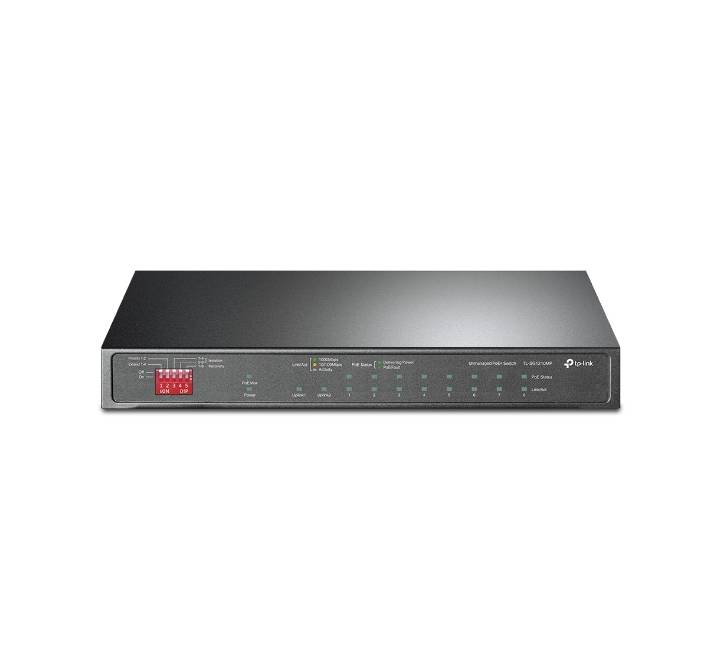

Streamline Your Network Infrastructure with the TP-Link TL-SG1210MP
The TP-Link TL-SG1210MP is a professional-grade, unmanaged 10-port gigabit desktop switch engineered to deploy effortless data and high-power delivery over a single Ethernet cable. Outfitted with 8 dedicated PoE+ (Power over Ethernet) ports, a total power budget of 123W, and a flexible Gigabit combo SFP/RJ45 uplink port, this switch is the perfect foundation for small-to-medium businesses, smart home offices, and professional IP security surveillance systems.
Key Features
- High-Power 123W PoE+ Budget: Complies with the robust IEEE 802.3af/at standard, delivering up to 30W of power on each individual port to easily fuel IP cameras, wireless access points, and VoIP hardware.
- 250-Meter PoE Transmission (Extend Mode): Overcome standard Ethernet distance limitations. Toggle Extend Mode to deliver power and data to remote devices up to 250 meters (820 feet) away—ideal for large-scale camera rollouts.
- Self-Healing PoE Auto Recovery: Eliminates manual tech support calls. The switch automatically monitors connected equipment and reboots dropped or unresponsive PoE devices on the spot.

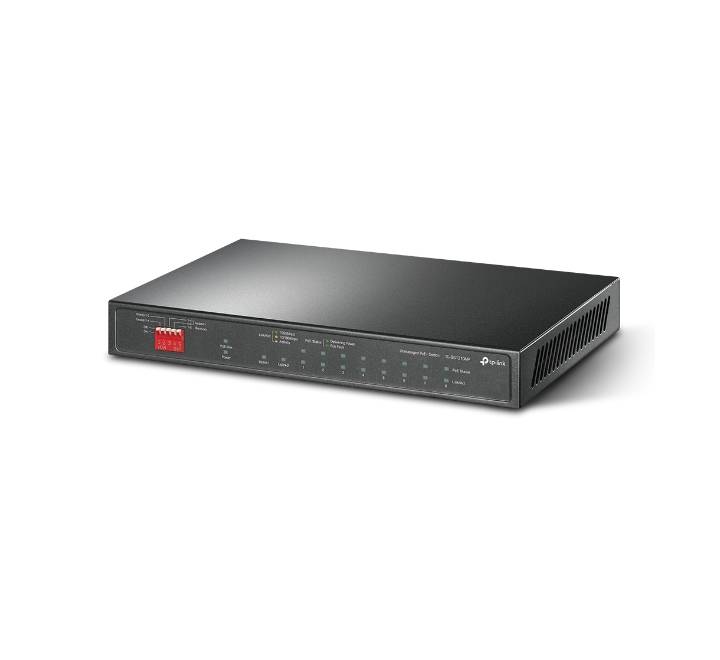

- Advanced Traffic Optimization: Features one-click physical toggle switches to isolate sensitive broadcast streams (Isolation Mode) and prioritize voice or video streams on ports 1–2 (Priority Mode) to avoid lag.
- Quiet and Durable Engineering: Constructed inside a premium, heavy-duty compact metal casing with a fanless thermal design ensuring 100% silent deployment in noise-sensitive office spaces.
Technical Specifications Table
| Hardware Component | Technical Parameters |
|---|---|

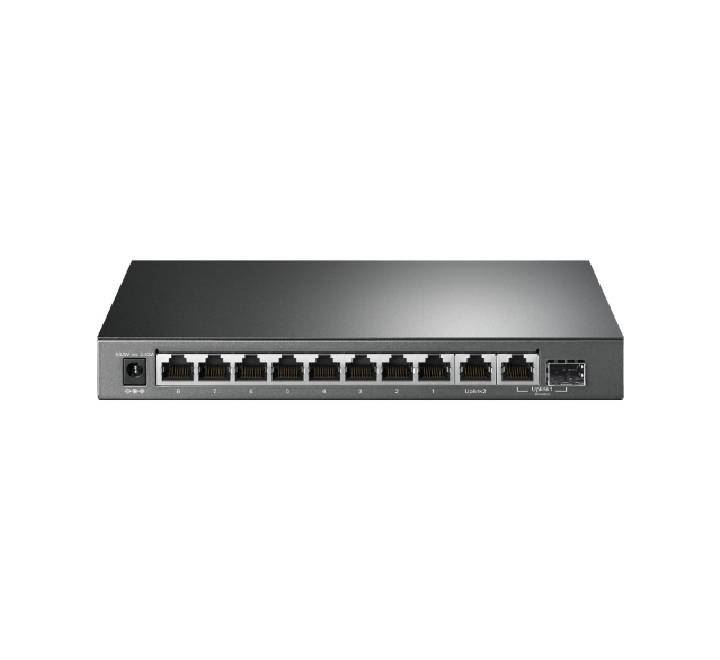

| Total Ethernet Interface | 9× 10/100/1000 Mbps RJ45 Ports & 1× 1000 Mbps Combo SFP/RJ45 Uplink Port |
| PoE Standard Compliance | IEEE 802.3af/at Compliant (Ports 1 to 8) |
| PoE Power Budget | Total Budget: 123 Watts | Maximum per individual port: 30 Watts |
| Switching Architecture | 20 Gbps Switching Capacity | Store-and-Forward Transmission Method |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Management | 4K Capacity Table with Auto-Learning and Auto-Aging features |
| Advanced Hardware Toggles | • Extend Mode: Up to 250m power & data range on Ports 1–4 (speeds capped at 10 Mbps) • Priority Mode: High-priority indexing on Ports 1–2 for latency-sensitive applications • Isolation Mode: One-click client traffic division for Ports 1–4 and 5–8 to prevent snooping • PoE Auto Recovery: Smart network ping mechanism to cycle dropped nodes |
| Jumbo Frame | 16 KB |
| Thermal Design | Fanless Passive Cooling for complete operating silence |
| Power Requirements | External Power Supply Brick (Output: 53.5 VDC / 2.43 A) |
| Maximum Power Draw | 7.93 W (with no devices attached) up to 141.40 W (fully loaded at 123W PoE draw) |
| Structural Dimensions | 8.2 × 4.9 × 1.0 inches (209 × 126 × 26 mm) |
