Description
TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch – Intelligent, High-Speed Network Control
Elevate your home or small business network beyond basic plug-and-play with the TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch. Specially designed for users who require simple yet powerful network management, this switch serves as the ideal upgrade from a standard unmanaged switch. It delivers full Gigabit speeds across 5 ports while providing critical diagnostic and traffic optimization tools.
Housed in a rugged, fanless metal casing, the TL-SG105E operates in absolute silence while protecting your system with advanced features like VLAN segmentation, QoS prioritization, and IGMP Snooping for smooth media delivery.
Key Features & Performance Benefits

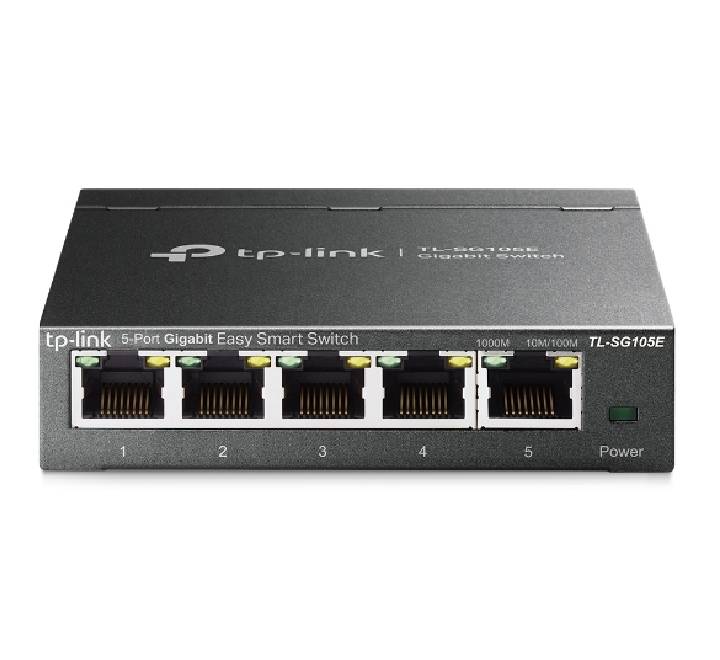

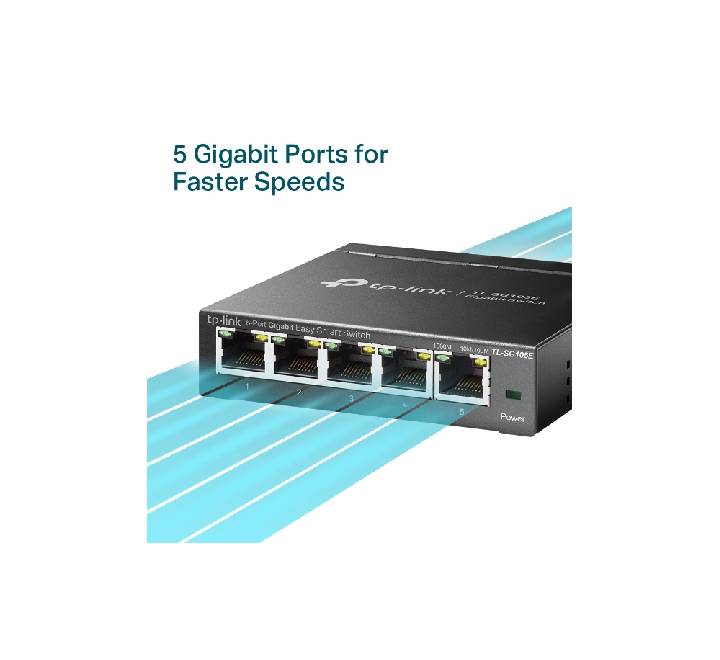

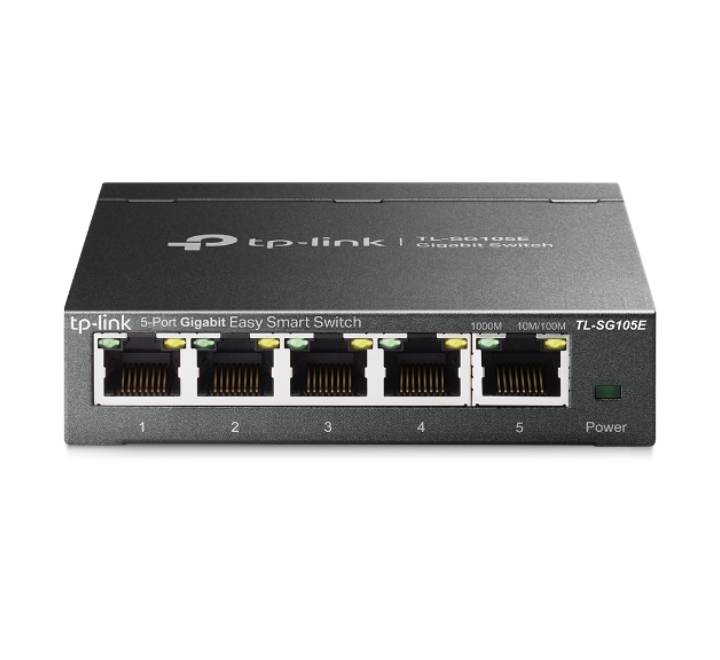

- 5 Gigabit RJ45 Ports: Equipped with 5× 10/100/1000 Mbps auto-negotiation ports to support high-speed file transfers and eliminate data bottlenecks.
- Intelligent Easy Management: Provides essential network monitoring, traffic prioritization, and VLAN division through an intuitive, easy-to-use utility and web interface.
- VLAN Support for Enhanced Security: Easily segregate your network (MTU/Port-based/802.1Q VLAN) to isolate sensitive office data or partition smart home IoT devices from your main system.
- Advanced QoS Traffic Optimization: Prioritize crucial services such as voice (VoIP) and video streams using Port-Based/802.1p/DSCP QoS, ensuring lag-free operation.
- IGMP Snooping for IPTV: Optimizes multicast traffic delivery automatically, delivering a dramatically improved streaming experience for IPTV and media systems.

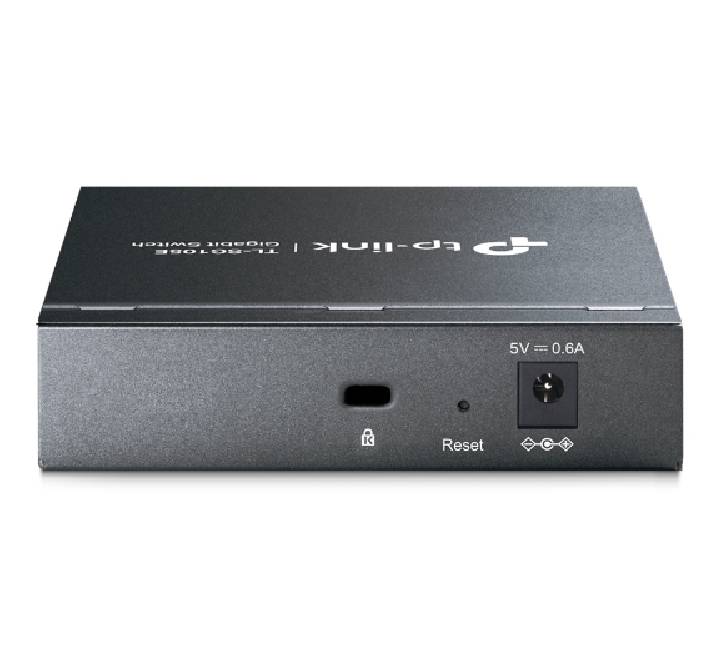

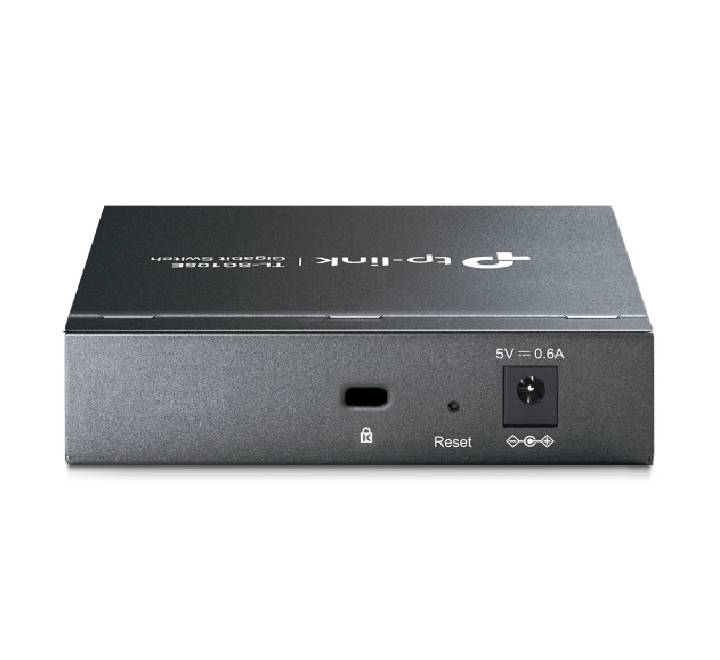

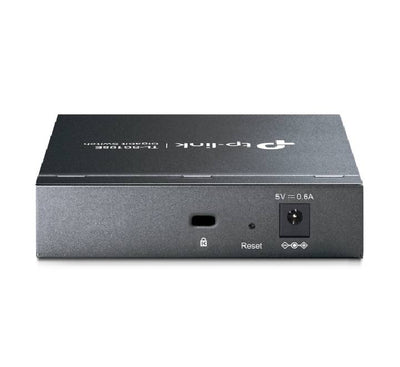

- Durable, Fanless Metal Casing: Built with a high-quality, shielded metal chassis that can be placed on a desktop or wall-mounted, running cool and completely silent.
- Green Ethernet Technology: Automatically adjusts power consumption according to link status and cable length, helping to lower your network's carbon footprint.
Unboxing & Network Configuration Guide
Technical Specifications
| Parameter | Specifications |
|---|---|
| Brand | TP-Link |
| Model | TL-SG105E |
| Standards & Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Ports | 5× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation, Auto MDI/MDIX) |
| Network Media | UTP/STP Cat 5, 5e, 6 or above cabling |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
| L2 Software Features | IGMP Snooping v1/v2/v3, Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
| Power Consumption | Max 2.8W (220V/50Hz) |
| Dimensions (W x D x H) | 100 × 98 × 25 mm (3.9 × 3.9 × 1.0 in.) |
