Description
- Standards and Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3z
- Operating Temperature: 0˚C to 50˚C (32˚F to 122˚F)
- Storage Temperature: -40˚C to 70˚C (-40˚F to 158˚F)
- Operating Humidity: 10% to 90% RH non-condensing
- Storage Humidity: 5% to 90% RH non-condensing
- Interface
- 1× Gigabit SC Fiber Port
- 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
- Network Media
- Single-mode Fiber
- UTP category 5, 5e cable (maximum 100m)
- Power Supply: External Power Adapter: 5 V/0.6 A
- LED: PWR, Link/Act
- Dimensions ( W x D x H )
- 3.7 × 2.9 × 1.1 in
- (94.5×73.0×27.0 mm)
- Wave Length: 1550 nm TX, 1310 nm RX
- Fiber Type : 9/125 μm single-mode fiber (2 km max.)
- Package Contents

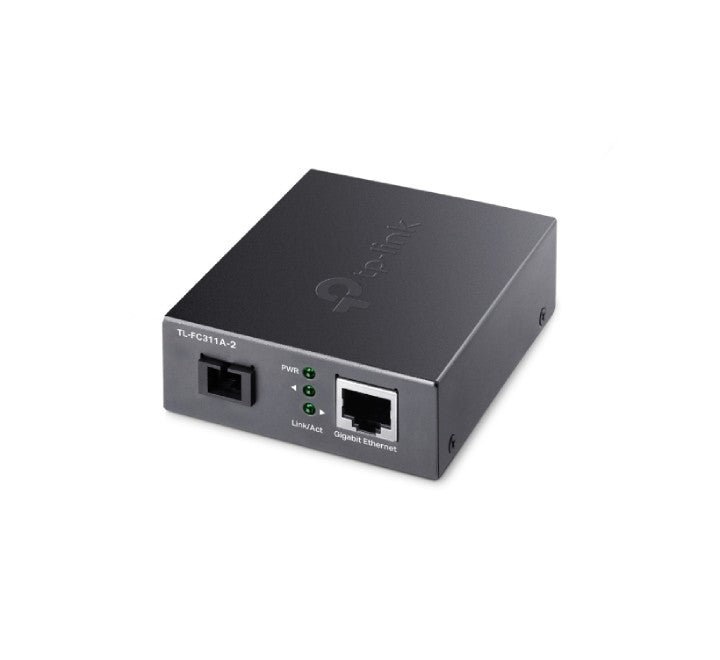

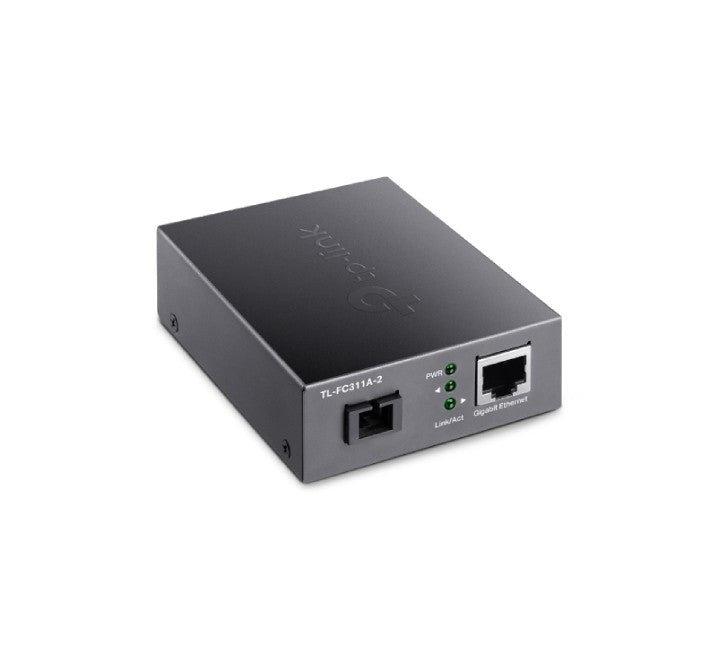

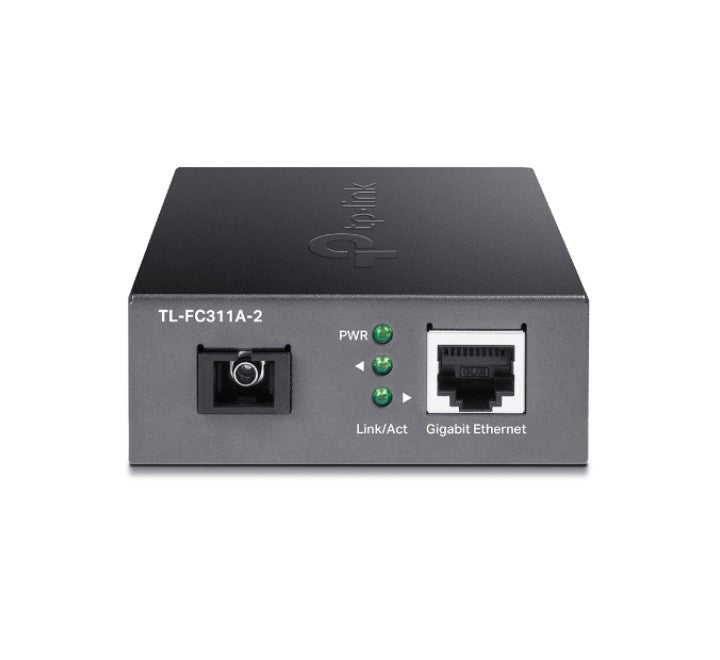

- Media Converter TL-FC311A-2
- Power Adapter
- Installation Guide
