Description

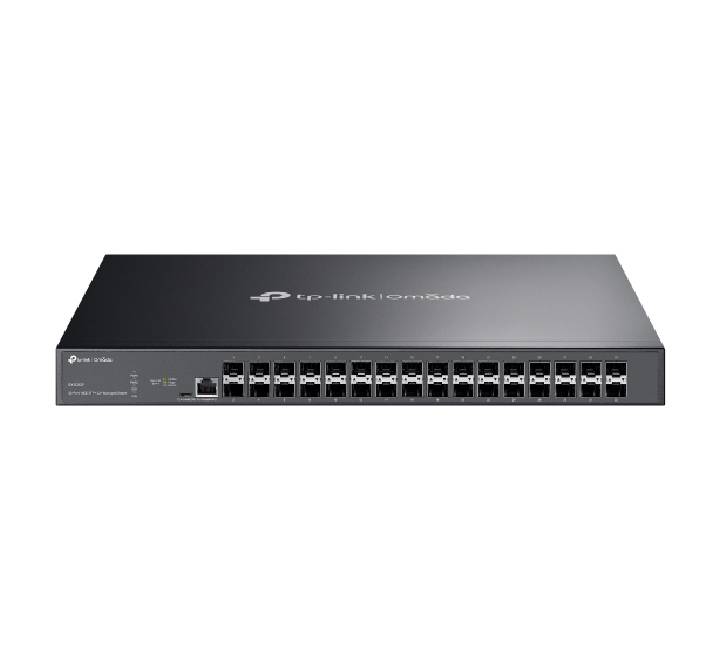

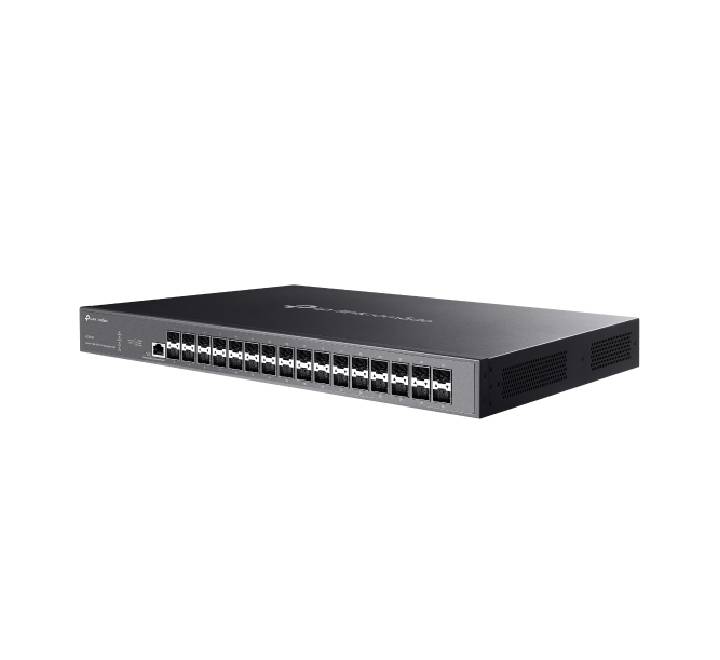

Deliver ultra-high performance, scalability, and robust security to your data center or enterprise core network with the TP-Link Omada SX3032F 32-Port 10G SFP+ L3 Managed Switch. Equipped with 32 high-density 10G SFP+ slots and a switching capacity of up to 640 Gbps, this enterprise-grade switch is designed to handle heavy traffic loads effortlessly while integrating smoothly into the Omada Software Defined Networking (SDN) platform.
Key Features
- High-Density 10G SFP+ Connectivity: Features 32× 10Gbps SFP+ slots, providing high-bandwidth switching capability for core-to-aggregation and server-to-switch architectures.
- Omada SDN Integration: Centralized cloud management via the Omada app or web UI enables zero-touch provisioning (ZTP) and remote management from anywhere.
- -Advanced L3 Features: Supports static routing, RIP, OSPF, PIM-SM/PIM-DM, and VRRP to build scalable and resilient enterprise routing topologies.
- Robust Security Strategy: Includes IP-MAC-Port Binding, ACL, Port Security, DoS Defend, 802.1X, and Radius/TACACS+ authentication.
- Redundant Power System: Supports dual removable power supply slots with hot-swappable AC power supplies for carrier-class reliability.
Technical Specifications
| Specification Category | Details |
|---|---|
| Interfaces | 32× 10Gbps SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port, 1× RJ45 Management Port |
| Switching Capacity | 640 Gbps |
| Packet Forwarding Rate | 476 Mpps |
| L3 Features | Static Routing, RIP v1/v2, OSPF v2, OSPFv3, PIM-SM/PIM-DM, IGMP Snooping, VRRP |
| Power Supply | 100-240 V~ 50/60 Hz (Supports Dual Redundant Power Supplies) |
| Dimensions (W x D x H) | 17.3 × 8.7 × 1.7 in. (440 × 220 × 44 mm), 1U Rack-Mountable |
