Description

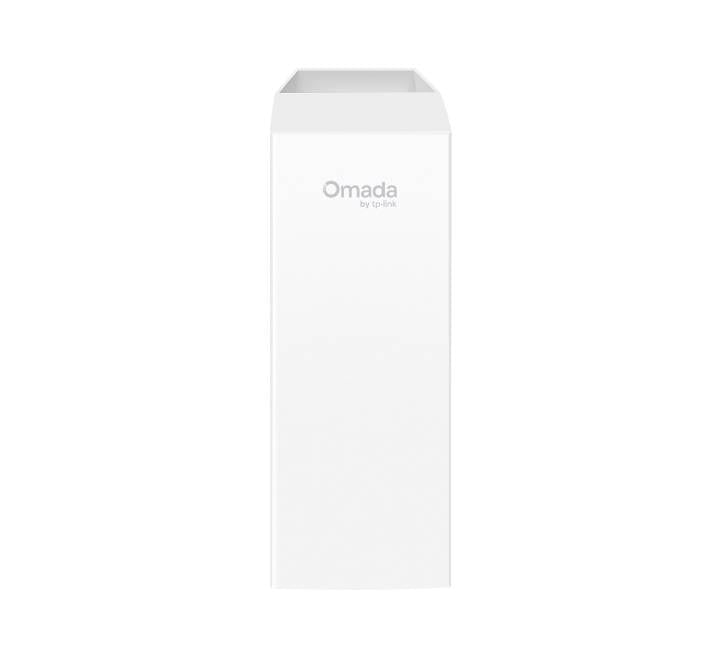

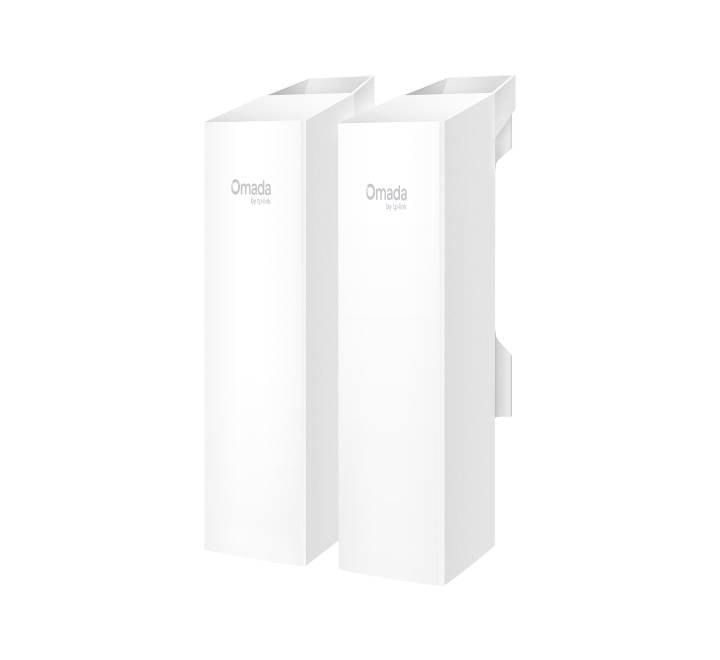

Seamlessly extend your high-speed internet connection across long distances with the TP-Link Omada EAP100-Bridge KIT 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge. Preconfigured for instant plug-and-play point-to-point (PtP) auto-pairing out of the box, this kit enables stable wireless coverage up to 1,640 ft (500 meters). Featuring an IP65 weatherproof casing, 6 kV lightning protection, and 3× Fast Ethernet ports per node, the EAP100-Bridge KIT is the ultimate solution for bridging networks between remote buildings, IP surveillance cameras, barns, and detached garages.
Key Features
- Long-Range Wireless Transmission: High-power directional 8 dBi 2×2 MIMO antennas transmit 2.4 GHz Wi-Fi up to 1,640 ft (500 meters) with line-of-sight.
- Plug-and-Play Auto-Pairing: Factory pre-paired units automatically establish a secure point-to-point link upon power-up—no complicated configuration required.
- 3× Fast Ethernet Ports: Connect up to 3 wired devices (such as IP security cameras, switches, or access points) directly to each edge node.
- Flexible Power Options: Supports standard 802.3af PoE, 24V passive PoE, and 12V DC power inputs (compatible with TP-Link solar power systems).
- App-Guided Alignment: LED signal strength indicators and the Omada app provide step-by-step installation guidance for precise antenna positioning.
- Rugged Weatherproof Construction: IP65-rated dust- and water-resistant enclosure with 6 kV surge/lightning protection withstands harsh outdoor climates (-40°C to 70°C).
- Centralized Cloud Management: Integrates into the Omada Software Defined Networking (SDN) platform for unified remote management, monitoring, and maintenance via web or app.
Technical Specifications
| Category | Specification |
|---|---|
| Wireless Standards | IEEE 802.11b/g/n (2.4 GHz) |
| Maximum Data Rate | Up to 300 Mbps (2.4 GHz) |
| Maximum Range | Up to 1,640 ft / 500 meters (Line of Sight) |
| Antenna System | Integrated 8 dBi 2×2 MIMO Directional Antennas (70° Horizontal Beamwidth) |
| Physical Interfaces | 3× 10/100 Mbps Fast Ethernet Ports per Unit, Reset / Pairing Button, Mode Selector Switch |
| Power Supply Options | 802.3af PoE, 24V Passive PoE, or 12V DC Input |
| Enclosure & Durability | IP65 Weatherproof Enclosure, 6 kV Lightning/Surge Protection |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Network Management | Omada Centralized Controller (SDN), Web Management UI, Omada App, Standalone Mode |
| Operation Modes | Point-to-Point (PtP), Point-to-Multipoint (PtMP up to 3 clients) |
| Dimensions (W×D×H) | 3.11 × 2.37 × 8.82 in (79 × 60.3 × 224 mm) |
