Description
TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+ (SG2210P)
- Brand: TP-Link
- Model: SG2210P
-
Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
- 8× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP slots
- 61 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
-
HARDWARE FEATURES

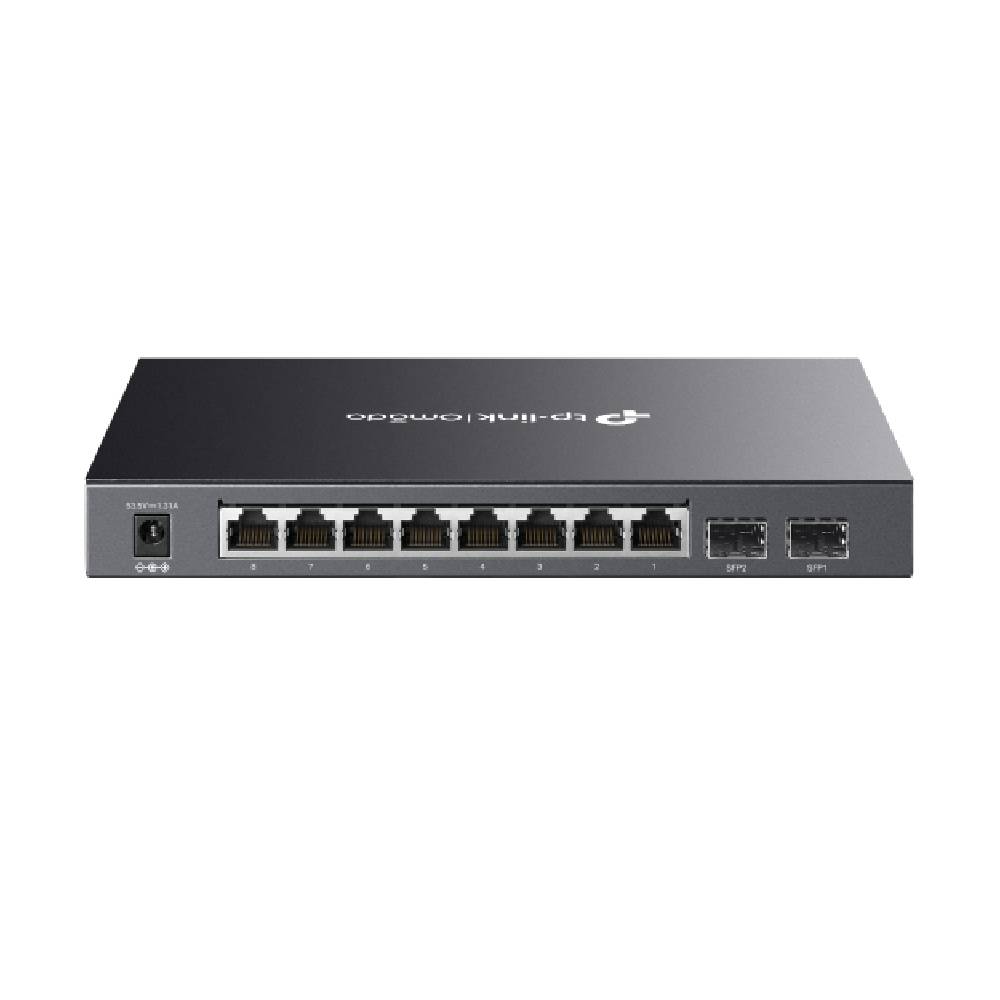

- Interface: 8× 10/100/1000Mbps PoE+ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
- 2× 100/1000 Mbps SFP Slots
- Fan Quantity: Fanless
- Physical Security Lock: √
- Power Supply: External Power Adapter (Output: 53.5VDC/1.31A)
- PoE Ports (RJ45): Standard: 802.3af/at compliant
- • PoE Ports: 8 Ports
- • PoE Power Budget: 61 W*
- Dimensions ( W x D x H ): 8.2×4.9×1.0 in (209×126×26 mm)
- Mounting: Desktop / Wall-Mounting
- Max. Power Consumption: 77.8 W (110 V/60 Hz) (with 61 W PD connected)
- Max. Heat Dissipation: 265.3 BTU/hr (110 V/60 Hz) (with 61 W PD connected)
-
PERFORMANCE
- Switching Capacity: 20 Gbps
- Packet Forwarding Rate: 14.88 Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1 Mbit
- Jumbo Frame: 9 KB
- Warranty : 2 Years
