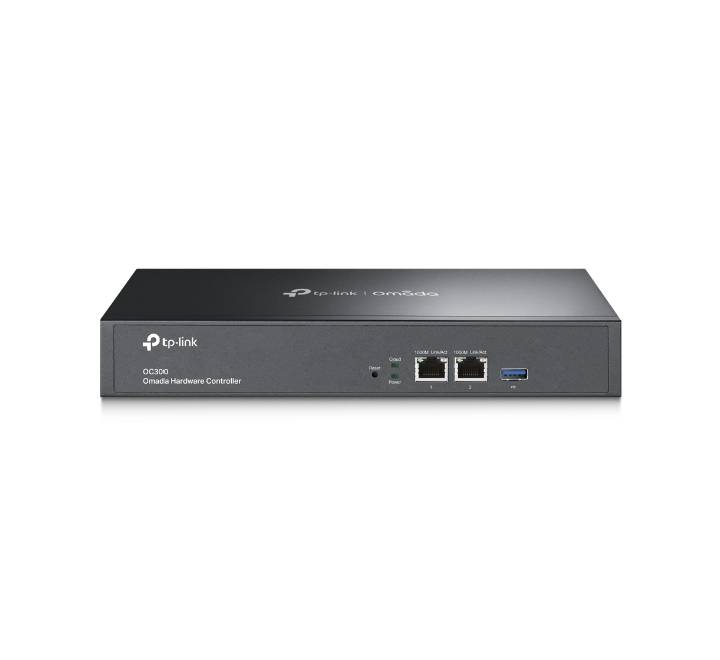

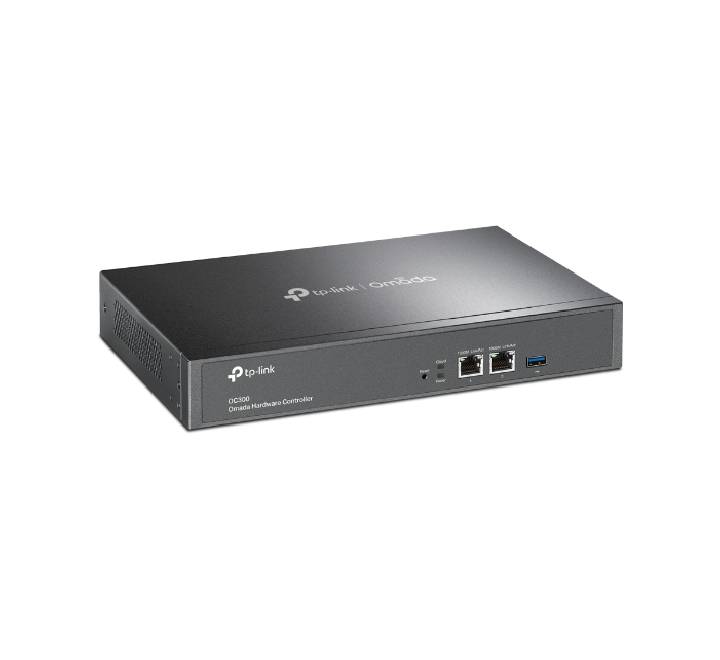

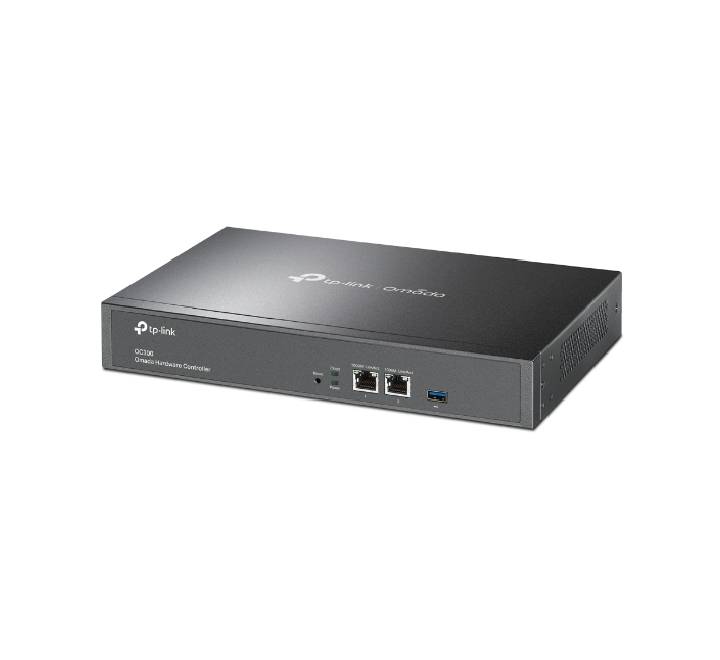

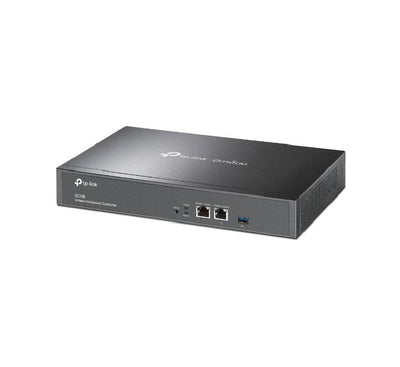

TP-Link OC300 Omada Hardware Controller
- Brand: TP-Link
- Model: OC300
- Omada Hardware Controller
- PORT: 2× 10/100/1000 Mbps Ethernet Ports, 1× USB 3.0 Port

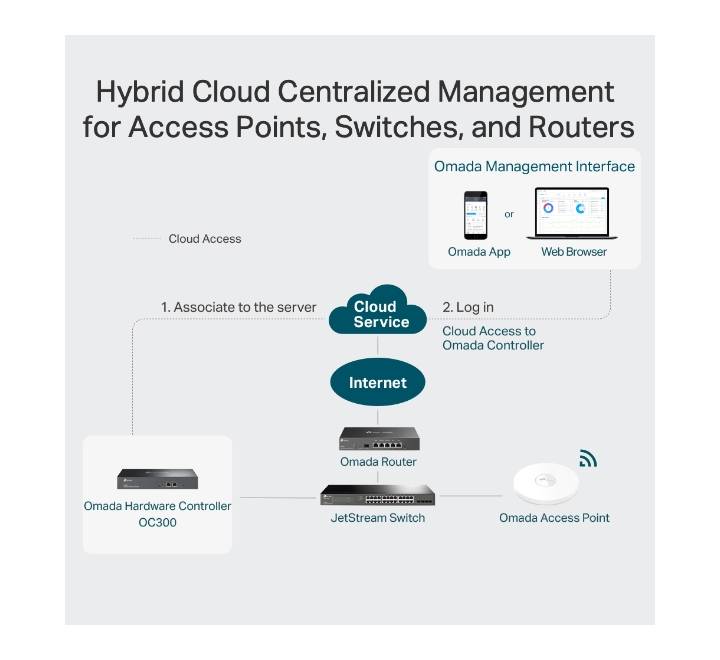

- FEATURE: Cloud Access, Centralized Management for up to 500 Omada EAPs,
- JetStream switchs and
- SafeStream routers, Multi-site Management, Omada App, Metal casing, Rack-Mountable

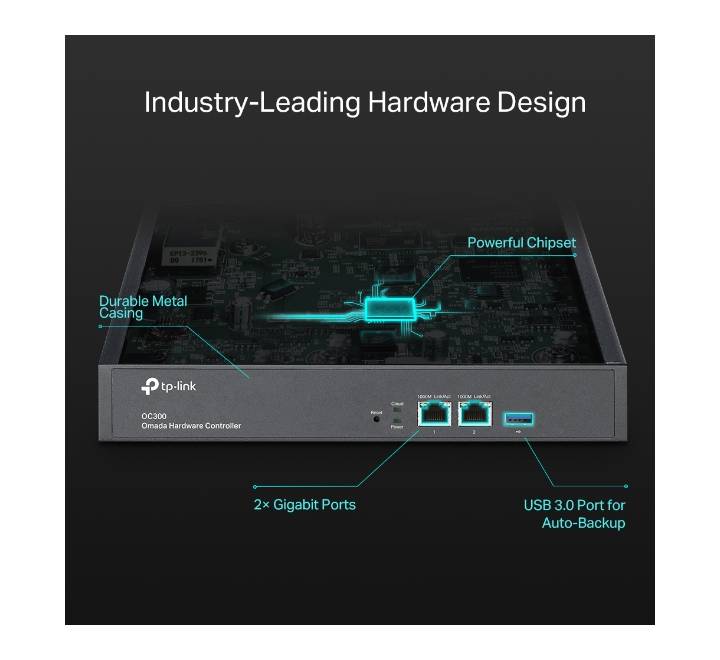

- HARDWARE FEATURES
- Interface
- 2× 10/100/1000 Mbps Ethernet Ports
- 1× USB 3.0 Port

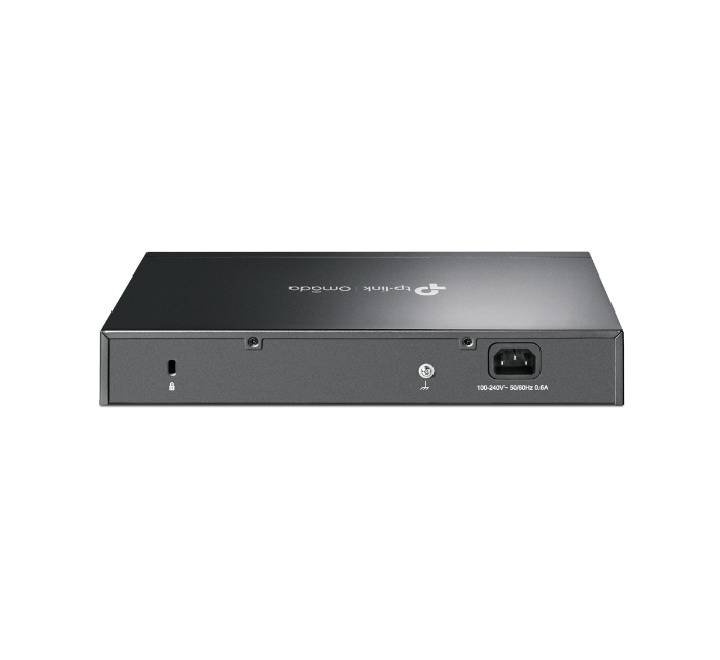

- Power Supply: 100–240 V~50/60 Hz, 0.6 A
- Dimensions: 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
- MANAGEMENT
- Omada App: Yes

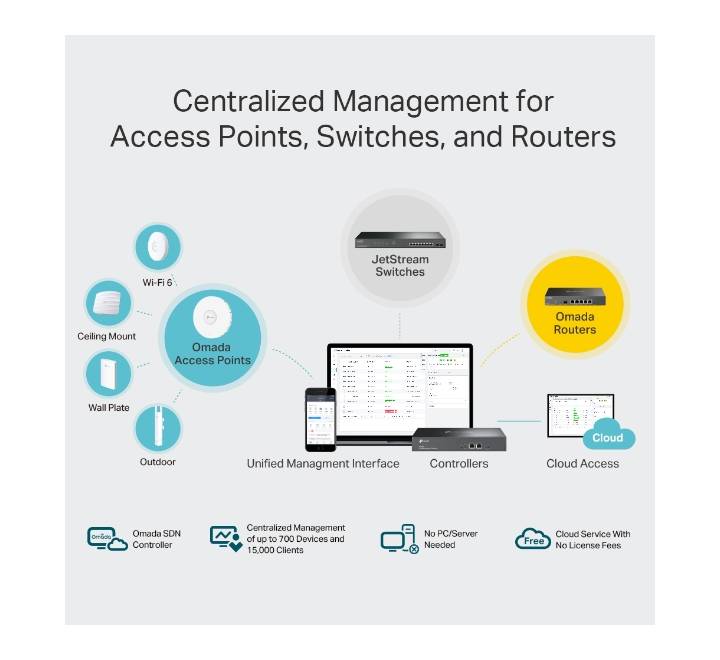

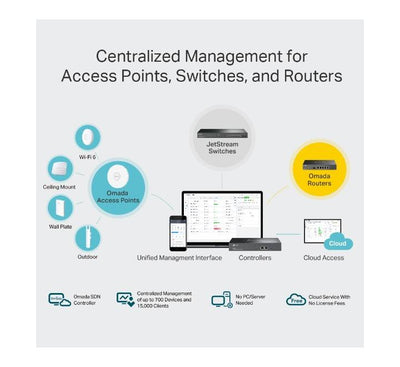

- Centralized Management
- Up to 500 Omada access points, 100 JetStream switches, and 100 Omada routers*
- Up to 15,000 clients
- *Refer to www.tp-link.com/en/business-networking/all-omada/ to find all the models supported by OC300
- Cloud Access: Yes
- L3 Management: Yes
- Multi-site Management: Yes
- Management Features
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
- OTHERS
- Certification: CE, FCC, RoHS
- Package Contents
- Omada Hardware Controller OC300
- Quick Installation Guide
- Ethernet Cable
- Power Cord
- Rackmount Kit
- System Requirements: Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
- Environment
- Operating Temperature: 0–50 ℃ (32–122 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
