Description

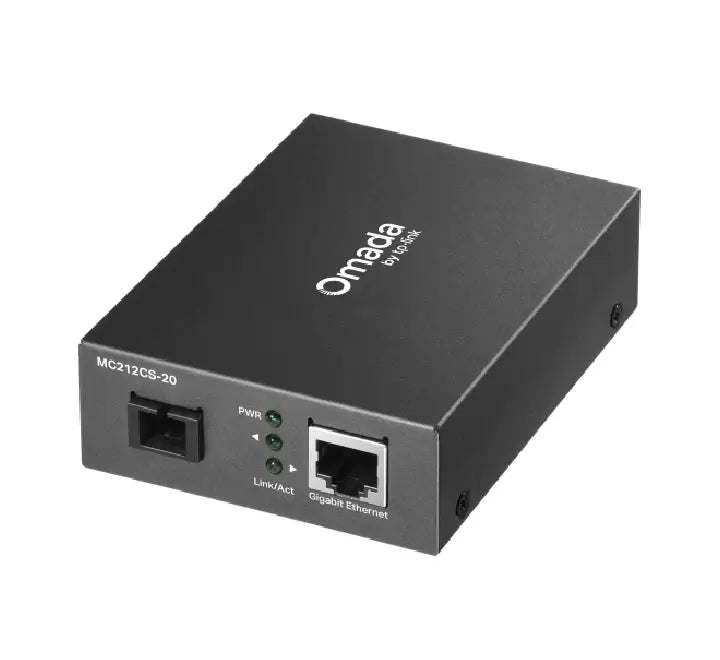

The TP-Link Omada MC212CS-20 is a high-performance Gigabit Media Converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media and vice versa. Utilizing WDM (Wave Division Multiplexing) technology, the MC212CS-20 sends and receives data over just one strand of fiber, saving you half the cabling costs.
Key Features:
- High-Speed Gigabit: 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX.
- WDM Technology: Transmits data at 1310nm and receives at 1550nm on a single-mode fiber core.
- 20km Range: Extend your network distance significantly for large campuses, warehouses, or remote site connections.
- Link Fault Pass Through: Minimizes losses caused by link failure by ensuring quick diagnostics across the fiber segment.
- Plug-and-Play: No software configuration required; works instantly upon connection.
Technical Specifications:
| Standards and Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3z |
| Interface | 1× Gigabit SC/UPC Port, 1× 10/100/1000M RJ45 Port |
| Wavelength | 1310nm TX, 1550nm RX |
| Network Media | Single-Mode Fiber (9/125 μm) |
| Max Distance | 20 km (12.4 miles) |
| Dimensions | 94.5 x 73 x 27 mm (3.7 x 2.9 x 1.1 in) |
