Maximize Your Network with the Omada 10G Enterprise Gateway

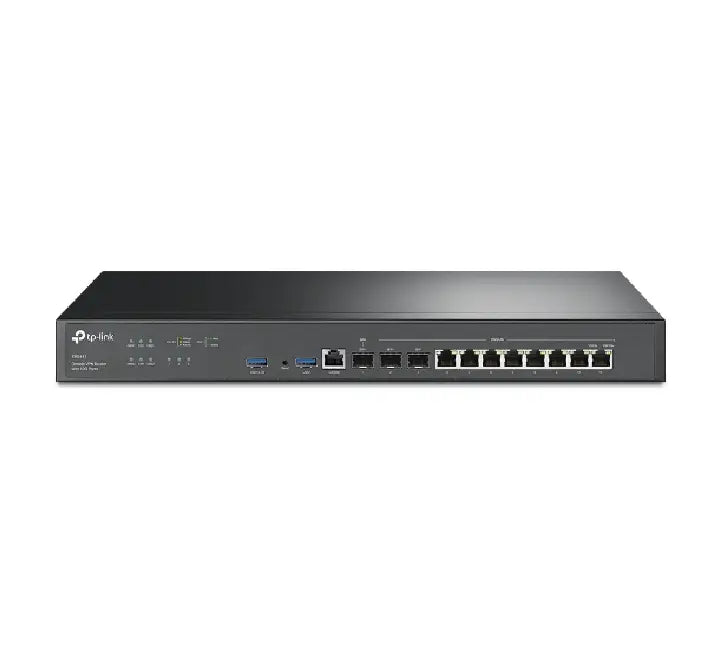

The TP-Link ER8411 is a high-performance Omada VPN Router designed for enterprise-level networking. Equipped with a powerful Quad-Core 2.2 GHz CPU and 4GB DDR4 RAM, it delivers lightning-fast 10G throughput and carrier-class reliability. With dual redundant power supplies and integrated Omada SDN management, it is the ideal choice for large-scale deployments like offices, schools, and hotels.
Key Features

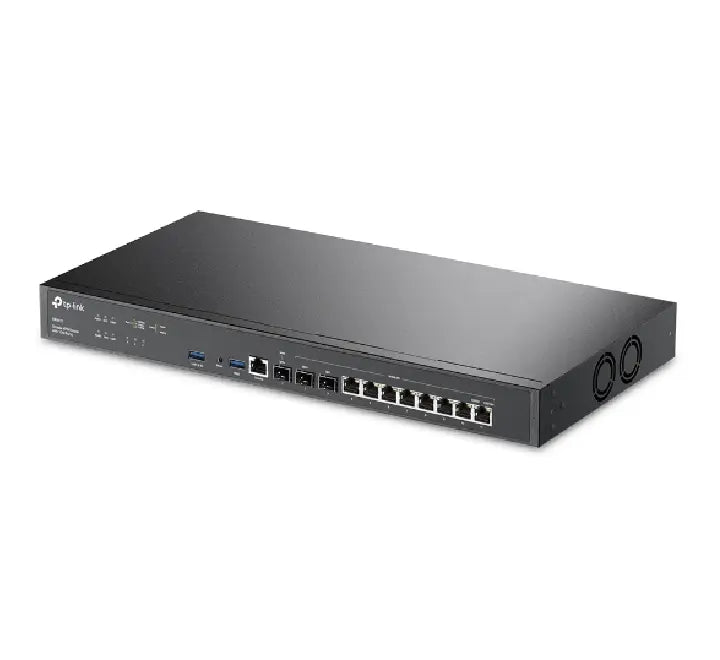

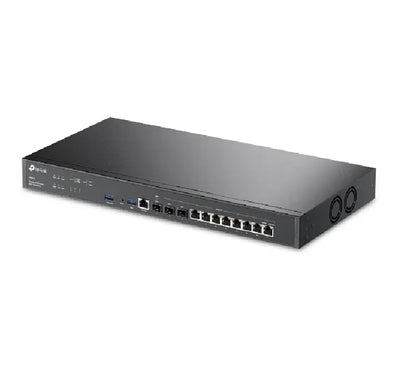

- Dual 10G SFP+ Ports: Includes 1× WAN and 1× WAN/LAN 10G SFP+ ports for high-bandwidth aggregation.
- Up to 10 WAN Ports: Supports SFP+, SFP, and RJ45 WAN ports with Multi-WAN Load Balancing to maximize your broadband utility.
- Centralized Cloud Management: Integrated into Omada SDN for Zero-Touch Provisioning (ZTP), Cloud Management, and Intelligent Monitoring.
- High-Security VPN: Supports enterprise-standard SSL, IPSec, PPTP, L2TP, OpenVPN, and WireGuard for secure site-to-site connectivity.

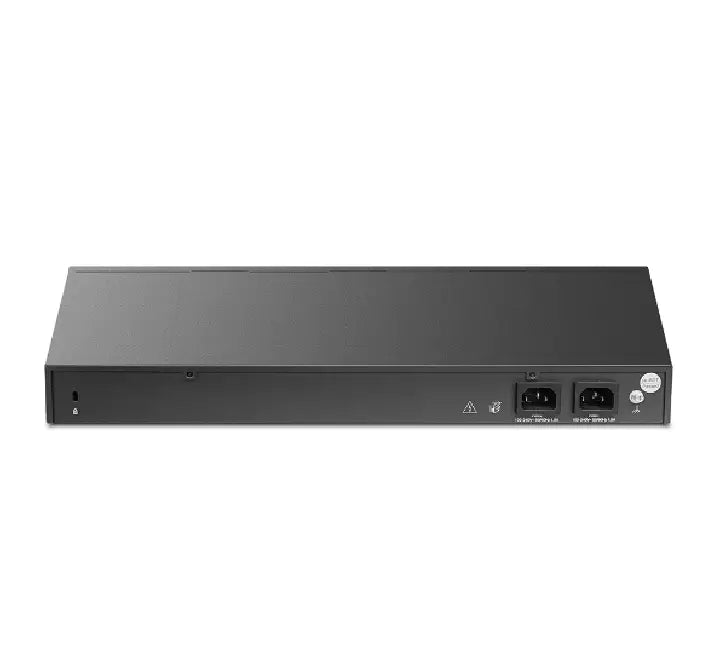

- Redundant Power Supplies: Dual AC power modules ensure continuous operation and reliability.
- Advanced Security: Features Deep Packet Inspection (DPI), IPS/IDS, DoS Defense, and IP/MAC/URL filtering for world-class protection.
Technical Specifications
| Category | Specification |
|---|---|
| Processor | Quad-Core 2.2 GHz CPU |
| Memory | 4 GB DDR4 |
| Interface | • 1× 10G SFP+ WAN Port • 1× 10G SFP+ WAN/LAN Port • 1× Gigabit SFP WAN/LAN Port • 8× Gigabit RJ45 WAN/LAN Ports |
| USB Ports | 2× USB 3.0 Ports (supports 4G/3G Modem backup) |
| Concurrent Sessions | 2,300,000 |
| VPN Throughput | IPsec: 2900+ Mbps | SSL: 1000+ Mbps |
| Power Supply | Dual Redundant Power Supplies (100–240 VAC) |
| Dimensions | 440 × 220 × 44 mm (Rack Mountable) |
