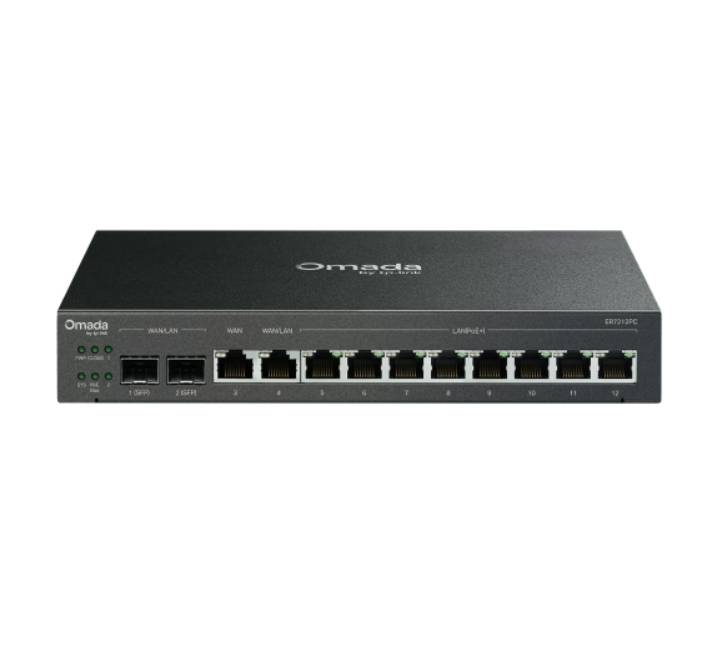

TP-Link ER7212PC Omada 3-in-1 Gigabit VPN Router

Brand: TP-Link
SKU: ER7212PC

Warranty: 2 Years

K635,000

See the description below.or write a review to earn points.

Add to Wishlist

Description

TP-Link ER7212PC Omada 3-in-1 Gigabit VPN Router

  • 3-in-1 Router: Integrates router, PoE+ output, and Omada centralized management ability altogether. Up to 10 EAPs can be centrally managed.
  • Professional Hardware: Dual-Core CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.
  • Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.
  • 110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*.
  • Highly Secure VPN: Supports up to 20 x LAN-to-LAN IPsec VPN, 16 x OpenVPN, and 16 x L2TP/PPTP VPN connections.
  • Easy Installation: Fanless and compact design for desktop and wall mounting.
  • Robust Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.
  • Centralized Management: On-premises management to locally monitor and manage devices securely or monitor and manage devices with Omada app or Web UI.
  • SECURITY
  • Access Control: Source/Destination IP Based Access Control
  • Filtering: URL Filtering
  • ARP Inspection -
  • Attack Defense
  • TCP/UDP/ICMP Flood Defense
  • Block TCP Scan (Stealth FIN/Xmas/Null)
  • Block Ping from WAN
  • HARDWARE FEATURES
  • Standards and Protocols
  • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
  • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
  • Interface
  • 2 Gigabit SFP WAN/LAN ports
  • 1 Gigabit WAN port
  • 1 Gigabit LAN/WAN port
  • 8 Gigabit LAN ports
  • Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
  • EIA/TIA-568 100Ω STP (Max 100 m)
  • 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
  • EIA/TIA-568 100Ω STP (Max 100 m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
  • Fan Quantity: Fanless
  • Button: Reset Button
  • Power Supply: 53.5VDC/2.43A Adapter
  • PoE Budget: 8 ports PoE+ output, 110 W PoE Budget
  • Flash: 8Mb Nor + 4 GB EMMC
  • DRAM: 1 GB DDR3
  • LED: PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
  • Dimensions ( W x D x H ): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
  • Protection: 4 kV surge protection
  • Enclosure: Steel
  • Mounting: Desktop/Wall-mount
  • Max Power Consumption
  • 133.2W with PoE Max
  • 13.88W without PoE
  • PERFORMANCE
  • Concurrent Session: 24,980
  • New Sessions /Second: 1,900
  • NAT (Static IP): 935.5 Mbps / 942.1 Mbps
  • NAT(DHCP): 940.2 Mbps / 941.7 Mbps
  • NAT(PPPoE): 913.1 Mbps / 935.2 Mbps
  • NAT (L2TP): 545.0 Mbps / 912.7 Mbps
  • NAT (PPTP): 523.0 Mbps / 912.8 Mbps
  • IPsec VPN Throughput (AES256): 168.5 Mbps
  • IPsec VPN Throughput AES256: 168.5 Mbps
  • OpenVPN 34 Mbps
  • L2TP VPN Throughput
  • Unencrypted: 845.3 Mbps
  • Encrypted: 333.2 Mbps
  • PPTP VPN Throughput
  • Unencrypted: 1012.6 Mbps
  • Encrypted: 401.4 Mbps
  • 66 Byte Packet forwarding rate 154,069 pps / 156,977 pps
  • 1,518 Byte Packet forwarding rate: 81,193 pps / 81,193 pps
  • BASIC FUNCTIONS
  • WAN Connection Type
  • Static IP
  • Dynamic IP
  • PPPoE
  • PPTP
  • L2TP
  • MAC Clone: Modify WAN MAC Address
  • DHCP
  • DHCP Server
  • DHCP Address Reservation
  • Multi-IP Interfaces
  • Multi-Net DHCP
  • IPv6: support
  • VLAN: 802.1Q VLAN
  • IPTV: IGMP v2/v3 Proxy
  • ADVANCED FUNCTIONS
  • ACL: IP/Port/Protocol/Domain Name Filtering
  • Advanced Routing
  • Static Routing
  • Policy Routing
  • Bandwidth Control
  • IP/Port-based Bandwidth Control
  • Load Balance
  • Intelligent Load Balance
  • Application Optimized Routing
  • Link Backup
  • Online Detection
  • NAT
  • Multi-Net NAT
  • Virtual Server
  • NAT-DMZ
  • FTP/H.323/SIP/IPSec/PPTP ALG
  • UPnP
  • Session Limit: IP-based Session Limit
  • VPN
  • SSL VPN
  • IPsec VPN
  • 20 IPSec VPN Tunnels
  • LAN-to-LAN, Client-to-LAN
  • Main, Aggressive Negotiation Mode
  • AES128, AES192, AES256 Encryption Algorithm
  • IKE v1/v2
  • SHA1, SHA2 Authentication Algorithm
  • NAT Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • Perfect Forward Secrecy (PFS)
  • PPTP VPN
  • PPTP VPN Server
  • PPTP VPN Client (10)
  • 16 Tunnels
  • PPTP with MPPE Encryption
  • L2TP VPN
  • L2TP VPN Server
  • L2TP VPN Client (10)
  • 16 Tunnels
  • L2TP over IPSec
  • OpenVPN
  • OpenVPN Server
  • OpenVPN Client (10)§
  • 16 OpenVPN Tunnels
  • AUTHENTICATION
  • Web Authentication
  • No Authentication
  • Simple Password
  • Hotspot (Local User / Voucher / SMS / Radius)
  • External Radius Sever
  • External Portal Sever
  • MANAGEMENT
  • Omada App: Yes
  • Centralized Management: Management of up to 2 Omada switches, and 10 Omada access points
  • Cloud Access: Yes
  • Service Dynamic DNS (Dyndns, No-IP)
  • Maintenance
  • Web Management Interface
  • Remote Management
  • Export & Import Configuration
  • SNMP v1/v2c/v3
  • Syslog Support
  • Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
  • Management Features
  • Automatic Device Discovery
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Reboot Schedule
  • Captive Portal Configuration
  • Management of up to 2 Omada switches and 10 Omada access points
  • OTHERS
  • Certification: CE, FCC, RoHS
  • Package Contents
  • ER7212PC
  • Power Adapter
  • Power Cord
  • Quick Installation Guide
  • System Requirements
  • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
  • MAC OS, NetWare, UNIX or Linux
  • Environment
  • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
  • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
  • Operating Humidity: 10% to 90% non-condensing
  • Storage Humidity: 5% to 90% non-condensing
