TP-Link ER706W Omada AX3000 Gigabit VPN Router – Enterprise Wireless Gateway
Upgrade your small-to-medium business network with the TP-Link ER706W Omada AX3000 Gigabit VPN Router. Combining a high-performance gateway and high-speed Wi-Fi 6 into a single device, it delivers lightning-fast wireless speeds up to 3.0 Gbps (2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz). Engineered for reliability, it features seamless multi-site connectivity, smart load balancing, and enterprise-grade VPN encryption to safeguard your data.
Product Demonstration & Setup
Key Features
- AX3000 Dual-Band Wi-Fi 6: Experience blazing-fast performance with up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz channels.

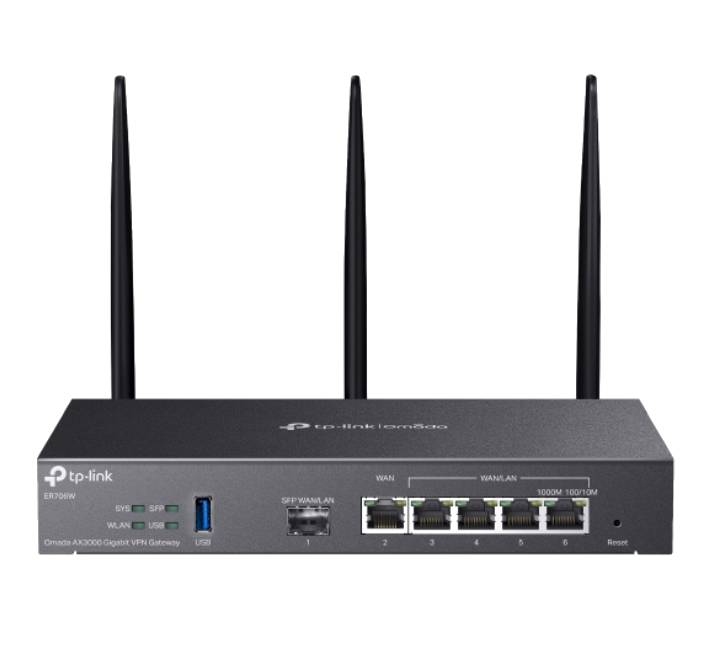

- 6× Gigabit Ethernet Ports: Equipped with 1× Gigabit SFP WAN/LAN port and 5× Gigabit RJ45 ports for versatile, ultra-fast wired networking.
- Up to 5× Multi-WAN Load Balancing: Distribute traffic streams dynamically across multiple internet lines to maximize bandwidth and ensure uptime.
- Centralized Omada Cloud Management: Seamlessly configure and manage your entire ecosystem locally or via the cloud using the web browser interface or the intuitive Omada App.
- Enterprise-Grade Security VPN: Fully supports industry-standard secure protocols, including IPSec, SSL, WireGuard, PPTP, OpenVPN, and L2TP.
- Omada Mesh & Seamless Roaming: Pair effortlessly with compatible Omada Access Points (EAPs) to eliminate dead zones without running extra cables.
Technical Specifications
| Specification | Details |
|---|---|
| Wi-Fi Standards | IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6) |
| Signal Rate | 5 GHz: Up to 2402 Mbps | 2.4 GHz: Up to 574 Mbps |
| Hardware Interface | • 1× Gigabit SFP WAN/LAN port • 1× Gigabit WAN port • 4× Gigabit LAN/WAN ports • 1× USB 3.0 port (supports USB LTE dongles) |
| Memory & Flash | 512 MB DDR4 RAM / 128 MB NAND Flash |
| Antennas | 2× 3 dBi (2.4 GHz) & 3× 4.5 dBi (5 GHz) detachable external antennas |
| VPN Support | SSL, IPsec, WireGuard, OpenVPN, PPTP, L2TP |
| Advanced Security | SPI Firewall, DoS/DDoS Defense, IP/MAC/URL Filtering, Access Control |
| Dimensions (W x D x H) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
