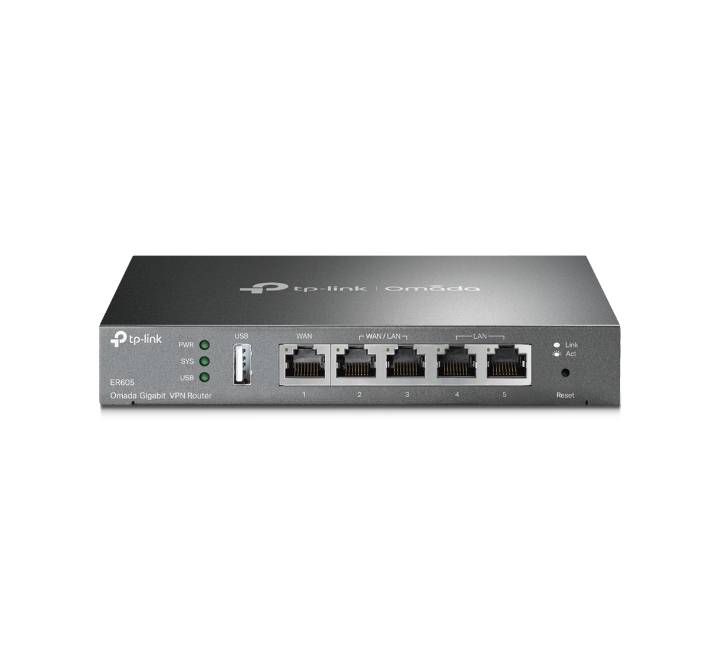

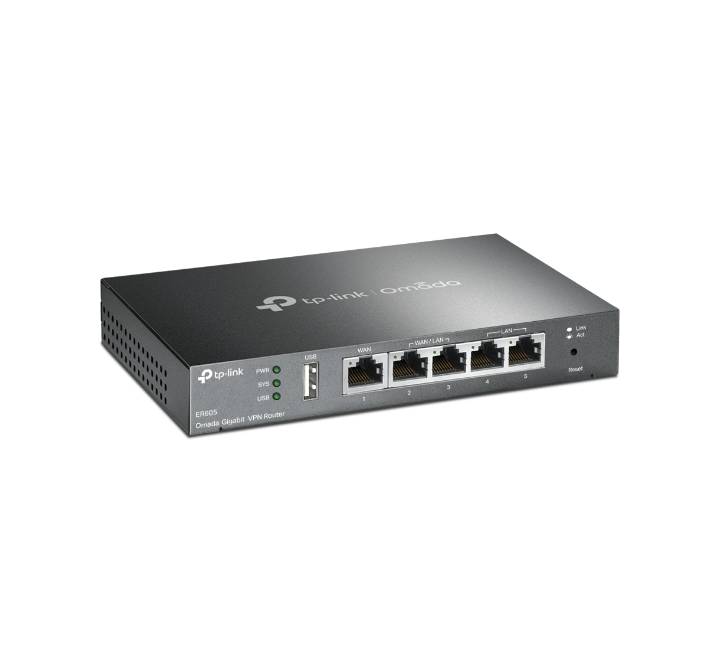

TP-Link ER605 (TL-ER605) V2 Omada Gigabit VPN Router

TP-Link ER605 (TL-ER605) V2 Omada Gigabit VPN Router

• Integrated into Omada SDN: Zero-Touch Provisioning***, Centralized Cloud Management, and Intelligent Monitoring.

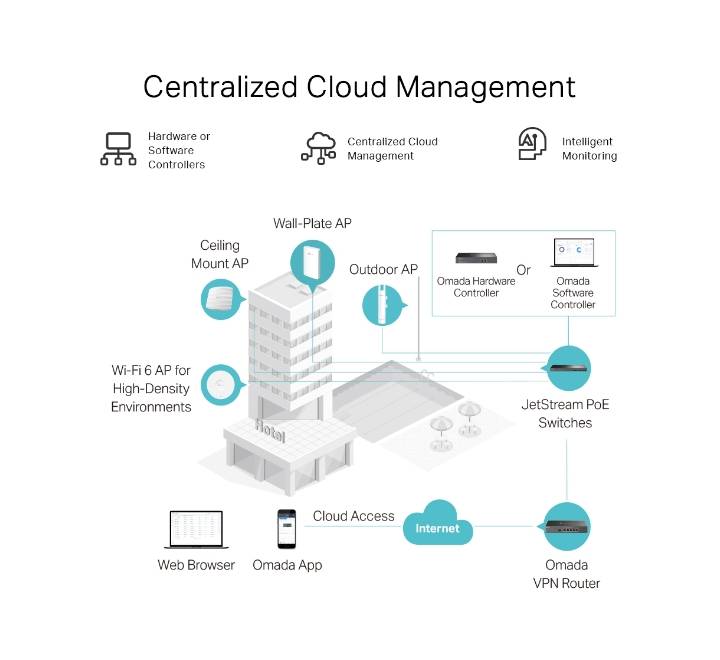

• Centralized Management: Cloud access and Omada app for convenience and easy management.
• Five Gigabit Ports: High-speed wired connectivity.

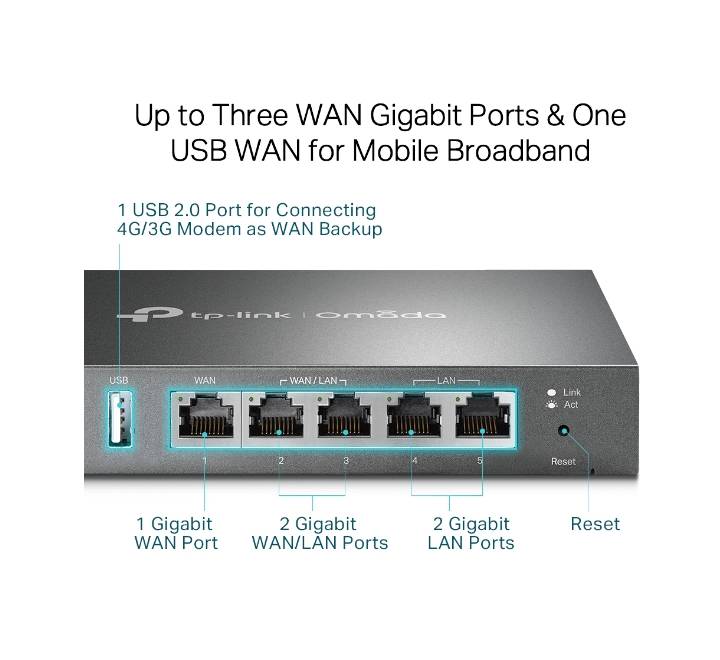

• Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
• One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.‡
• Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
• Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.
• SECURITY
• Access Control Source/Destination IP Based Access Control
• Filtering
• WEB Group Filtering§
• URL Filtering
• Web Security§
• ARP Inspection
• Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding
• Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
• HARDWARE FEATURES
• Standards and Protocols
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN
• Interface
• 1 Gigabit WAN port
• 2 Gigabit LAN/WAN ports
• 2 Gigabit LAN ports
• 1 USB2.0(supports USB LTE dongle‡)
• Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
• Fan Quantity: Fanless
• Button: Reset Button
• Power Supply: External 12V/1A DC Adapter
• PoE Budget -
• Flash: 128 MB NAND
• DRAM: 256 MB DDR
• LED: PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
• Dimensions ( W x D x H ): 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
• Protection: 4 kV surge protection
• Enclosure: Steel
• Mounting: Desktop/Wall-mount
• Max Power Consumption: 7.94 W
• PERFORMANCE
• DPI Throughput
• TCP: 905 Mbps;
• UDP: 788 Mbps
• Concurrent Session: 150,000
• New Sessions /Second: 2,600
• NAT (Static IP)
• Upload: 945.77 Mbps
• Download: 938.79 Mbps
• Bi-Directional: 1808.29 Mbps
• NAT(DHCP)
• Upload: 945.54 Mbps
• Download: 945.66 Mbps
• Bi-Directional: 1802.77 Mbps
• NAT(PPPoE)
• Upload: 939.71Mbps
• Download: 939.43 Mbps
• Bi-Directional: 1788.54 Mbps
• NAT (L2TP)
• Upload: 815.55 Mbps
• Download: 835.59 Mbps
• Bi-Directional: 903.13 Mbps
• NAT (PPTP)
• Upload: 813.23 Mbps
• Download: 850.91 Mbps
• Bi-Directional: 894.41 Mbps
• IPsec VPN Throughput
• ESP-SHA1-AES256: 259.78 Mbps
• ESP-SHA256-AES256: 260.81 Mbps
• ESP-SHA384-AES256: 37.65 Mbps
• ESP-SHA512-AES256: 38.32 Mbps
• OpenVPN
• 21.70 Mbps
• L2TP VPN Throughput
• Unencrypted: 640.99 Mbps
• Encrypted: 77.31 Mbps
• PPTP VPN Throughput
• Unencrypted: 759.55 Mbps
• Encrypted: 75.80 Mbps
• SSL VPN Throughput -
• 66 Byte Packet forwarding rate
• Upload/Download: 954.50 Mbps
• Bi-Directional: 1130.00 Mbps
• 1,518 Byte Packet forwarding rate
• Upload/Download: 997.50 Mbps
• Bi-Directional: 1965.00 Mbps
• BASIC FUNCTIONS
• WAN Connection Type
• Static
• Dynamic IP
• PPPoE(supports MRU Configuration)
• PPTP
• L2TP
• MAC Clone: Modify WAN/LAN MAC Address†
• DHCP
• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
• IPv6: StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
• VLAN: 802.1Q VLAN
• IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
• ADVANCED FUNCTIONS
• Advanced Routing
• Static Routing
• Policy Routing
• RIP§
• OSPF§
• Bandwidth Control: IP-based Bandwidth Control
• Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection
• NAT
• One-to-One NAT
• Multi-Net NAT
• Port Forwarding
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
• Session Limit: IP-based Session Limit
• VPN
• IPsec VPN
• 20 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256, SHA2-384 and SHA2-512 • Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1 Authentication Algorithm, SHA2 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
• PPTP VPN
• PPTP VPN Server
• PPTP VPN Client (10) **
• 16 Tunnels
• PPTP with MPPE Encryption
• L2TP VPN
• L2TP VPN Server
• L2TP VPN Client (10) **
• 16 Tunnels
• L2TP over IPSec
• OpenVPN
• OpenVPN Server
• OpenVPN Client (10)§
• 16 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
• AUTHENTICATION
• Web Authentication
• No Authentication
• Simple Password*
• Hotspot（Local User / Voucher*/ SMS*/ Radius*）
• External Radius Sever
• External Portal Sever*
• LDAP§
• MANAGEMENT
• Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Service Dynamic DNS: (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
• Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
• Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
• Management Features
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• OTHERS
• Certification: CE, FCC, RoHS
• Package Contents
• ER605
• Power Adapter
• RJ-45 Ethernet Cable
• Quick Installation Guide
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux
• Environment
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
