Description

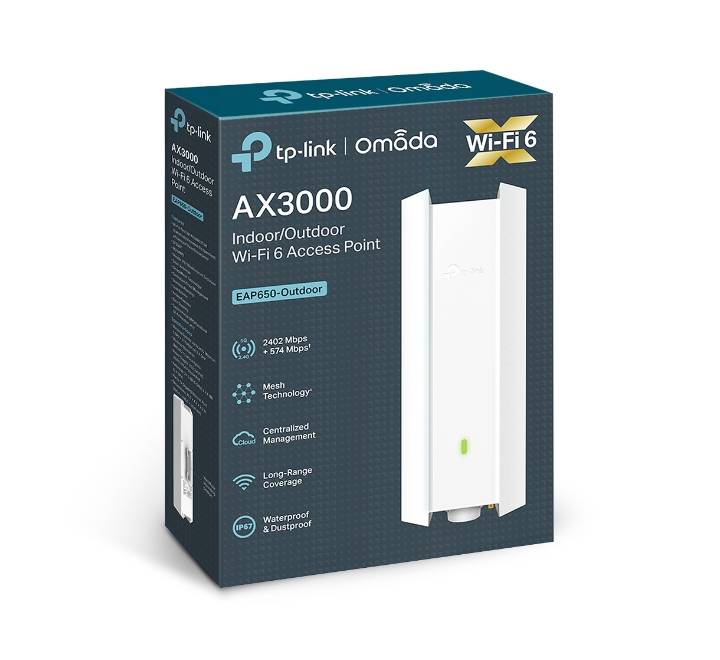

Bring enterprise-grade, lightning-fast connectivity to your exterior environments with the TP-Link Omada EAP650-Outdoor AX3000 Wireless Dual-Band Wi-Fi 6 Access Point. Engineered to withstand the harshest outdoor elements, this high-performance access point delivers exceptional dual-band aggregate speeds up to 3.0 Gbps. Powered by advanced Wi-Fi 6 technologies and seamlessly integrated into the Omada Software Defined Networking (SDN) platform, it provides ultra-reliable, long-range wireless coverage for commercial venues, pools, parks, outdoor dining, and sprawling estates.
Key Features & Benefits
- Blazing-Fast AX3000 Wi-Fi 6 Speeds: Delivers up to 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band for buttery-smooth data transfers and heavy 4K streaming.
- 160 MHz Bandwidth Channel: Doubles the data transmission capacity during peak traffic hours on a single stream using HE160 capabilities, minimizing latency.
- Rugged IP67 Weatherproof Enclosure: Completely dust-tight and resilient against moisture, heavy rain, vibrations, shocks, and extreme temperatures ranging from -30°C to 70°C. Also boasts 6KV lightning and 15KV ESD protection.
- Omada SDN Centralized Cloud Management: Zero-Touch Provisioning (ZTP) enables total centralized management of your entire network infrastructure locally or via the cloud using the intuitive web UI or Omada App.
- Smart Omada Mesh & Seamless Roaming: Easily extends wireless coverage to hard-to-wire areas without the mess of additional cabling while keeping users seamlessly connected as they walk across the property.
- Flexible Power Over Ethernet (PoE): Supports standard 802.3at PoE+ and 48V Passive PoE for flexible, unconstrained outdoor installation (Passive PoE adapter included).
Official Overview & Deployment Tutorial
Technical Specifications
| Specification Class | Technical Data Details |
|---|---|
| Interface | 1 × Gigabit Ethernet (RJ-45) Port (Supports IEEE 802.3at PoE & 48V Passive PoE) |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6) |
| Signal Rates | 5 GHz: Up to 2402 Mbps | 2.4 GHz: Up to 574 Mbps |
| Antennas | Internal Omni Antennas (2.4 GHz: 2× 4 dBi; 5 GHz: 2× 5 dBi) |
| Max Power Consumption | 14.7 W (For US/FCC) | 12.5 W (For EU) |
| Dimensions (W x D x H) | 280.4 × 106.5 × 56.8 mm (11.0 × 4.2 × 2.2 in) without mount |
| Weatherproof Rating | IP67 Certified Enclosure |
| Advanced Wireless Tech | 1024-QAM, OFDMA, MU-MIMO, Omada Mesh, Seamless Roaming, Band Steering, Beamforming |
| Wireless Security | WPA3-Personal/Enterprise, Captive Portal (SMS, Voucher), Rogue AP Detection, 802.1X |
| Mounting Options | Pole or Wall Mounting (Installation hardware kits fully included) |
