Description

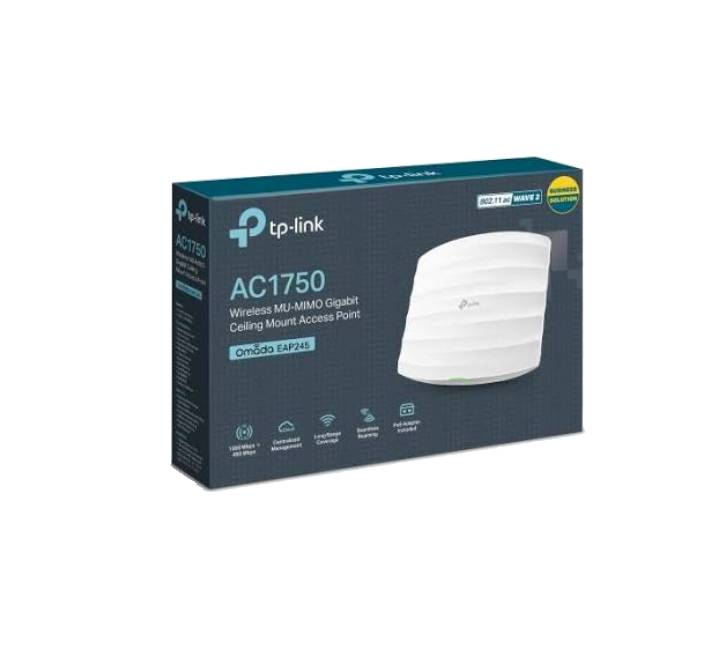

TP-Link EAP245 AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
- Brand: TP-Link
- Model: EAP245
- Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.†
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.*
- PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter sold separately) for flexible installations.
- Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.*
- Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.
- HARDWARE FEATURES
- Interface: 2 × Gigabit RJ45 Ports (One port supports IEEE802.3at PoE, another port supports Passive PoE Out)
- Physical Security Lock: Yes
- Button: Reset
- Power Supply
- 802.3at PoE
- 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter included.)
- Power Consumption
- EU: 15.2 W
- US: 16.3 W
- Dimensions ( W x D x H ): 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
- Antenna Type
- Internal Omni
- 2.4 GHz: 3× 3.5 dBi
- 5 GHz: 3× 4 dBi
- Mounting: Ceiling/Wall Mounting (Kits included)
- WIRELESS FEATURES
- Coverage: 140㎡(1500 ft²)§
- Concurrent Clients: 220+***
- Wireless Standards: IEEE 802.11ac/n/g/b/a
- Frequency: 2.4GHz and 5GHz
- Signal Rate
- 5 GHz:Up to 1300 Mbps
- 2.4 GHz:Up to 450 Mbps
- Wireless Functions
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- Seamless Roaming*
- Omada Mesh*
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
- Wireless Security
- Captive Portal Authentication*
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP / WPA / WPA2-Enterprise,
- WPA-PSK / WPA2-PSK
- MANAGEMENT
- Omada App: Yes
- Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
- OTHERS
- Certification: CE, FCC, RoHS
- Package Contents
- 5 EAP245 Access Points
- 5 Mounting Kits
- 1 Installation Guide
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
- Environment
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
