Description

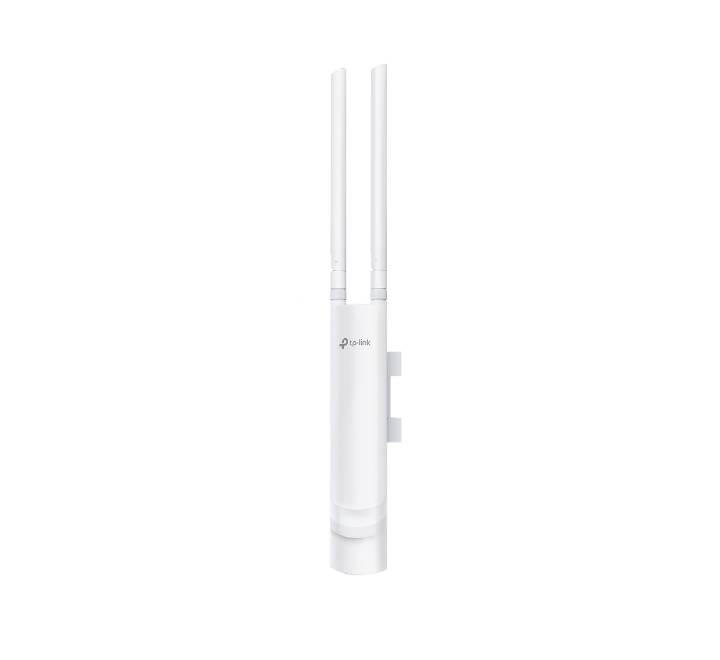

TP-Link EAP225-Outdoor AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
- Ideal for Outdoor Environment: IP65 weatherproof enclosure for outdoor Wi-Fi applications.
- Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1167 Mbps Wi-Fi speeds.†
- Long-Range Coverage: Dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO technology.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Omada Mesh Technology: Enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient.*
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.*
- PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
- HARDWARE FEATURES

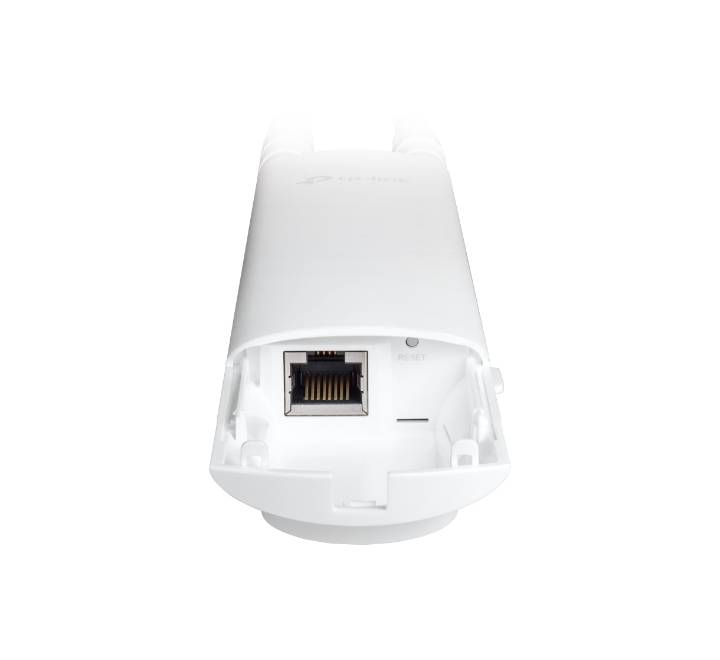

- Interface: 1× Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE)
- Button: Reset
- Power Supply
- 802.3af/at PoE (Alternative A)
- 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
- Power Consumption: 10.5 W
- Dimensions ( W x D x H ):
- 215.7×45×37.7 mm (without antenna & mounting kit)
- 403.8×90.7×55.2 mm (with antenna & mounting kit)
- Antenna
- 2.4 GHz: 2× 3 dBi
- 5 GHz: 2× 4 dBi
- Weatherproof Enclosure: IP65

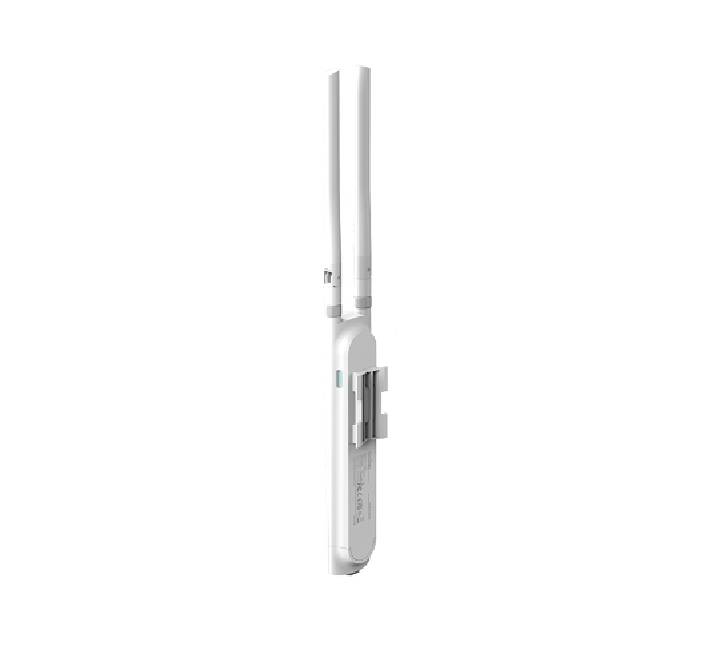

- Mounting: Pole/Wall Mounting (Kits included)
- WIRELESS FEATURES
- Concurrent Clients: 220+**
- Wireless Standards: IEEE 802.11a/b/g/n/ac
- Frequency: 2.4GHz, 5GHz
- Signal Rate
- 802.11ac: 5G:6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78 Mbps to 300 Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 5.5, 11Mbps
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Wireless Functions
- Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control （Adjust Transmit Power on dBm）
- QoS(WMM)
- MU-MIMO
- Seamless Roaming*
- Omada Mesh*
- Airtime Fairness
- Beamforming
- Band Steering
- Load Balance
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
- Wireless Security
- Captive Portal Authentication*
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- Transmission Power
- CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
- FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)
- MANAGEMENT
- Omada App: Yes
- Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Email Alerts: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c
- System Logging Local/Remote Syslog: Yes
- SSH: Yes
- Web-based Management: Yes
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
- OTHERS
- Certification: CE, FCC, RoHS

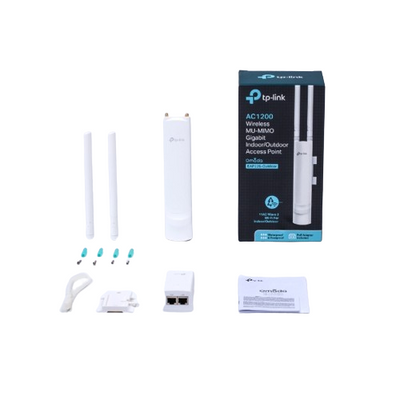

- Package Contents
- Access Point EAP225-Outdoor
- Passive PoE Adapter
- Power Cord
- Mounting Kits
- Installation Guide
- Waterproof Ruber Insert
- Waterproof Antenna
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
- Environment
- Operating Temperature: -30–70 ℃ (-22–158 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
