Description

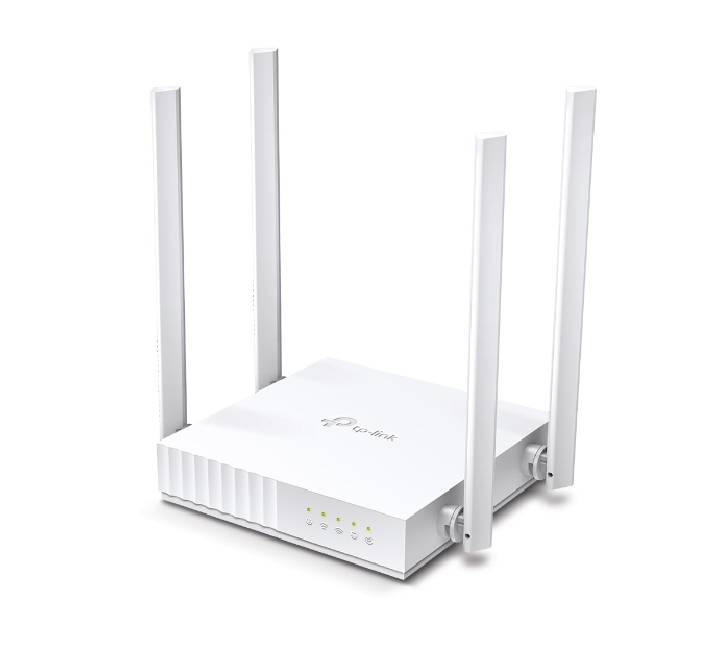

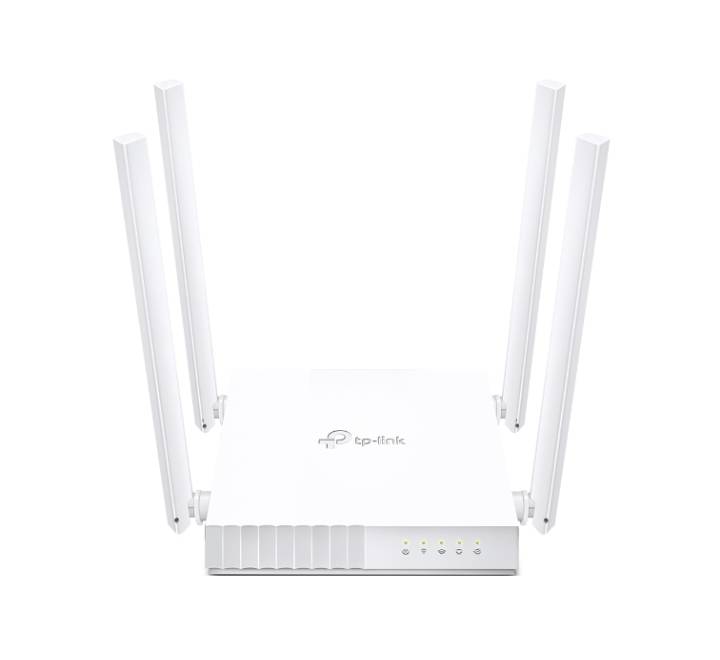

TP-Link Archer C24 AC750 Dual-Band Wi-Fi Router
- High-Speed Wi-Fi—AC750 dual-band is ideal for HD video streaming, high-speed downloading.
- Far-Reaching Coverage—4× antennas deliver far-reaching Wi-Fi and reliable connections.
- Multi-Mode 3 in 1—Supports Router, Access Point, and Range Extender to add flexibilities.
- Parental Controls—Manages when and how connected devices can access the internet.
- WPA3 Security—Brings new capabilities to improve cybersecurity in personal networks.
- Guest Network—Provides separate access for guests while securing the host network.
- Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
- IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).
- Compact and Mountable—Designed to conserve space and complement any décor.
- SECURITY
- Network Security
- SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway
- Guest Network
- 1× 5 GHz Guest Network
- 1× 2.4 GHz Guest Network
- WiFi Encryption
- WPA
- WPA2
- WPA-PSK
- WPA2-PSK
- WPA3-Personal encryption
- WIRELESS
- Standards
- Wi-Fi 5
- IEEE 802.11ac/n/a 5 GHz
- IEEE 802.11n/b/g 2.4 GHz
- WiFi Speeds: AC750
- 5 GHz: 433 Mbps (802.11ac)
- 2.4 GHz: 300 Mbps (802.11n)
- WiFi Range
- Bedroom Houses
- 4× Fixed Antennas
- Multiple antennas form a signal-boosting array to cover more directions and large areas
- WiFi Capacity
- Medium
- Dual-Band
- Allocate devices to different bands for optimal performance
- Working Modes: Router Mode
- Access Point Mode
- Range Extender Mode
- HARDWARE

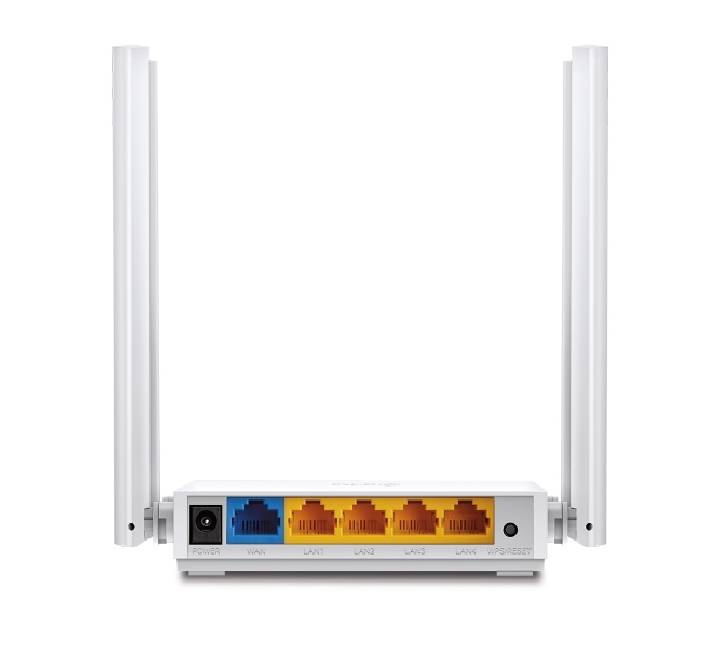

- Ethernet Ports: 1× 10/100 Mbps WAN Port
- 4× 10/100 Mbps LAN Ports
- Buttons WPS/Reset Button
- Power: 9 V ⎓ 0.6 A
- SOFTWARE
- Protocols
- IPv4
- IPv6
- Parental Controls
- URL Filtering
- Time Controls
- WAN Types
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
- Quality of Service: QoS by Device
- NAT Forwarding
- Port Forwarding
- Port Triggering
- DMZ
- UPnP
- IPTV
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
- DHCP
- Address Reservation
- DHCP Client List
- Server
- DDNS
- NO-IP
- DynDNS
- Management
- Tether App
- Webpage
- Check Web Emulator>
- OTHER
- System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
- Cable or DSL Modem (if needed)
- Subscription with an internet service provider (for internet access)
- Certifications: FCC, CE, RoHS
- Environment
- Operating Temperature: 0℃~40℃ (32℉ ~104℉)
- Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- TEST DATA
- WiFi Transmission Power CE:
- <20dBm(2.4GHz)
- <23dBm(5GHz)
- WiFi Reception Sensitivity
- 5GHz:
- 11a 54M: -76dBm;
- 11ac VHT20 MCS8: -70dBm
- 11ac VHT40 MCS9: -65.5dBm
- 11ac VHT80 MCS9: -61.5dBm
- 2.4GHz:
- 11g 54M: -76dBm11n; HT20 MCS7: -74dBm;
- 11n HT40 MCS7: -71dBm
- PHYSICAL
- Dimensions (W×D×H): 4.5 × 4.2 × 1.0 in
- (115 × 106.7 × 24.3 mm)
- Package Contents
- Wi-Fi Router Archer C24
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
