Ultimate Efficiency for Next-Gen High-Performance Builds

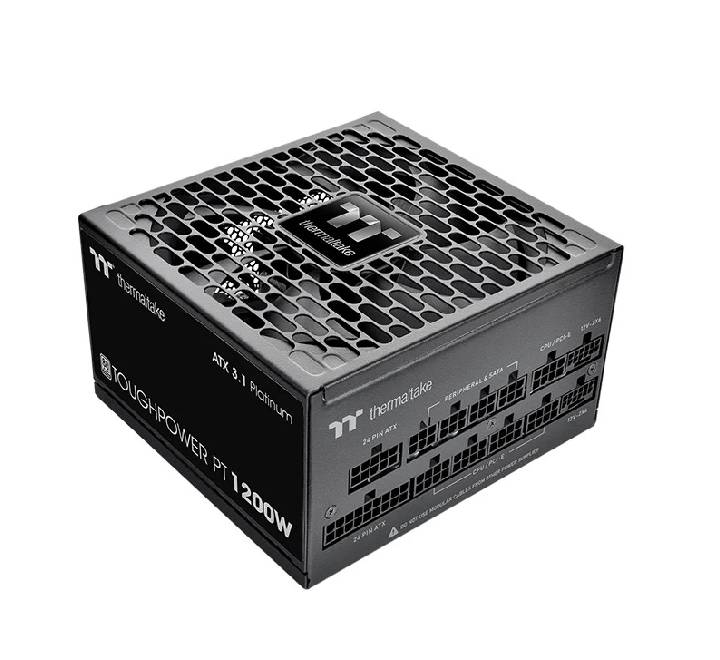

The Thermaltake Toughpower 1200W Platinum Power Supply (Model: PS-TPP-1200FNFAPE-1) is engineered to deliver unwavering, ultra-efficient power to high-end gaming rigs and professional workstations. Designed to strictly comply with the Intel ATX 3.1 standard and equipped with native PCIe Gen 5.1 (12V-2x6 12+4pin) connectors, this power supply provides direct, safe power delivery for modern power-hungry GPUs like the NVIDIA RTX 40 & 50 series without requiring awkward adapter dongles.
Featuring 80 PLUS® Platinum certification with up to 92% efficiency, 100% high-quality 105°C Japanese electrolytic capacitors, and an ultra-quiet 135mm hydraulic bearing cooling fan, the Toughpower 1200W ensures optimal thermal performance and ultra-low electrical ripple noise under maximum loads.
1200W*Active PFC*Main Power Connector (24 Pin)(x1) * ATX 12V 8 PIN/4+4 PIN (x1) * SATA 5 PIN (x4) *PCI-E 6+2 PIN (x2)*Peripheral (4 Pin) (x4)*Floppy Adapter (x1)
Key Features
- Intel ATX 3.1 & PCIe Gen 5.1 Ready: Built to handle up to 2x total power excursions and 3x GPU power excursions, fully compatible with next-gen graphic cards.
- 80 PLUS® Platinum Certified: Delivers up to 92% operational efficiency under typical loads, reducing energy loss and waste heat.
- 100% Japanese 105°C Capacitors: Crafted with premium industrial-grade capacitors for supreme reliability, stability, and long product longevity.

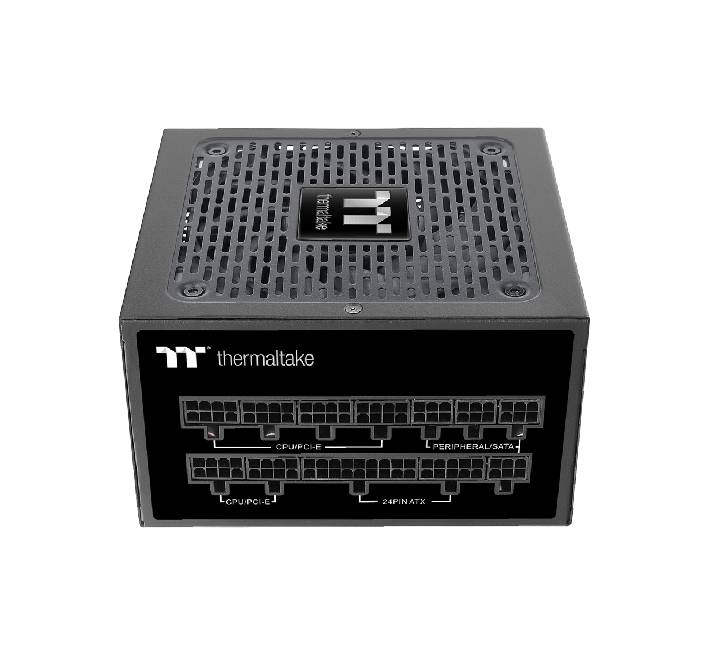

- Fully Modular Low-Profile Flat Cables: Simplifies cable routing, improves internal chassis airflow, and ensures clean cable management.
- 135mm Quiet Hydraulic Bearing Fan: Engineered for superior thermal performance while keeping operational acoustic noise extremely low.
- Strong Single +12V Rail & DC-to-DC Design: Guarantees clean, steady power regulation to critical system components like CPU and GPU.
- Industrial Safety Protections: Full suite of built-in hardware safeguards including OVP, OCP, UVP, OPP, SCP, and OTP.
Technical Specifications
| Part Number (P/N) | PS-TPP-1200FNFAPE-1 |
| Wattage | 1200W |
| Form Factor | ATX 3.1 |
| Efficiency Rating | 80 PLUS® Platinum Certified (115Vac input) |
| Dimensions (W x H x D) | 150mm x 86mm x 140mm |
| Cooling System | 135mm Hydraulic Bearing Fan |
| Capacitors | 100% Japanese 105°C / 221°F Electrolytic Capacitors |
| Input Voltage / Current | 100 - 240Vac / 15A - 10A Max |
| Input Frequency | 50Hz - 60Hz |
| PFC / Hold-Up Time | Active PFC / >17ms at 80% load |
| MTBF | 100,000 hrs minimum |
| Safety Protections | OVP, OCP, UVP, OPP, SCP, OTP |
