Description

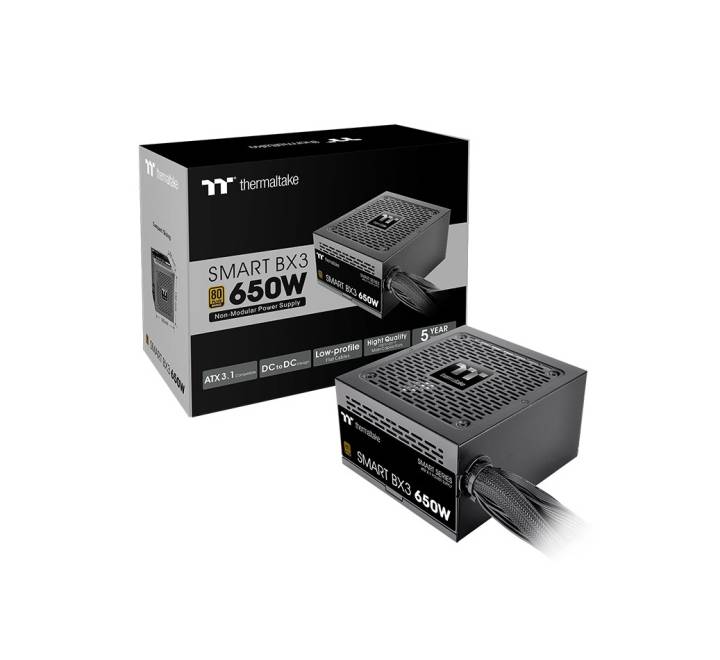

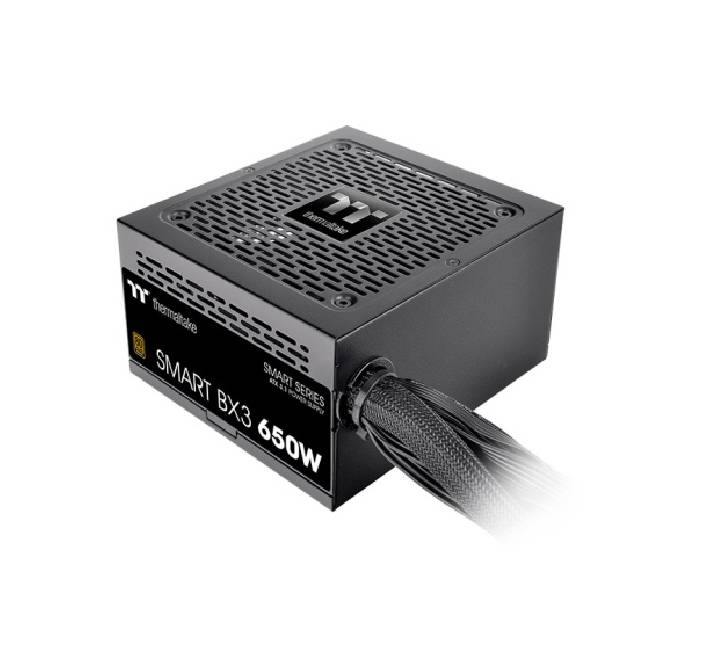

Thermaltake Smart BX3 650W 80 PLUS Bronze ATX 3.1 Power Supply
Build a reliable, efficient, and budget-friendly gaming system with the Thermaltake Smart BX3 650W Power Supply. Compliant with the latest ATX 3.1 standards, the Smart BX3 series is engineered to support up to 200% power excursion and deliver excellent low-load efficiency. Rated with 80 PLUS Bronze certification, a high-quality 105°C main capacitor, and a DC-to-DC circuit design, this PSU provides stable voltage regulation and long-lasting durability for modern mid-range gaming builds.
Key Features
- ATX 3.1 Specifications Ready: Meets updated power standards, supporting up to 200% total power excursion and improved low-load energy utilization.
- 80 PLUS Bronze Certified Efficiency: Delivers up to 85% efficiency at typical loads, reducing wasted energy and heat output.
- 120mm Fluid Bearing Fan with Smart Zero Fan Mode: The 120mm silent fan stays quiet during low system loads and ramps up cooling only when necessary to minimize noise.
- High-Quality 105°C/221°F Main Capacitor: Premium Japanese/industrial main capacitor enhances overall durability and power delivery stability.
- DC to DC Circuit & Single +12V Rail: Powerful single +12V rail design combined with DC-to-DC conversion ensures ultra-stable voltage regulation and broad hardware compatibility.
- Non-Modular Soft Flat Cables: Sleek, flexible black flat cables simplify wire routing and improve chassis airflow.
- Industrial-Grade Hardware Protections: Full suite of safeguards including OCP, OVP, UVP, OPP, OTP, and SCP.
Technical Specifications
| Brand | Thermaltake |
|---|---|
| Model | Tt PS-SPD-0650NNSABE-7 PSU |
| Max Output Capacity | 650 Watts |
| Efficiency Certification | 80 PLUS Bronze (115V Input) |
| Form Factor Standard | ATX 3.1 |
| Modularity | Non-Modular (Soft Flat Black Cables) |
| Cooling System | 120mm Fluid Bearing Fan (with Smart Zero Fan mode) |
| Input Voltage / Frequency | 100V – 240V~ / 50Hz – 60Hz |
| PFC Type | Active PFC |
| Connectors Included | 1x Main Power (24-pin) 2x ATX 12V (4+4 pin) 2x PCIe (6+2 pin) 4x SATA (5-pin) 4x Peripheral (4-pin Molex) |
| Built-in Protections | OCP, OVP, UVP, OPP, OTP, SCP |
| Dimensions (W x H x D) | 150 mm x 86 mm x 140 mm |
