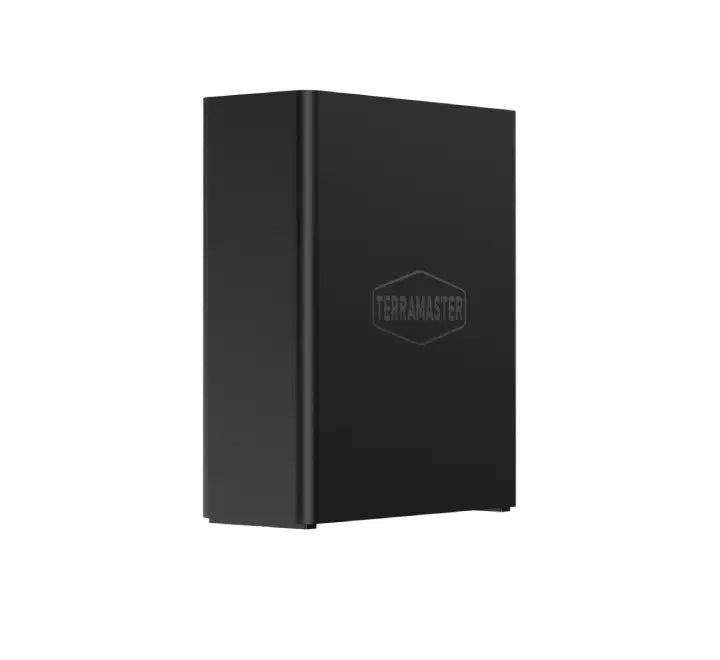

Transform your data management and content creation workflow with the TerraMaster F8 SSD 8-Bay All-NVMe NAS Enclosure. Designed for high-performance demands, video editing, virtualization, and ultra-quiet home or office media servers, this palm-sized, all-flash NAS delivers lightning-fast speed, high efficiency, and whisper-quiet operation.
Key Features
- 8-Bay High-Speed NVMe Storage: Supports up to 8x M.2 2280 NVMe PCIe SSDs, giving you up to 64TB of lightning-fast raw capacity in a compact form factor.
- 10GbE Ultra-Fast Connectivity: Equipped with a built-in 10GbE RJ-45 network interface to eliminate bandwidth bottlenecks and drastically speed up file transfers and 4K media streaming.
- Powerful x86 Processing: Powered by an Intel 4-Core processor, delivering low power consumption alongside smooth hardware transcoding and encryption performance.
- Ultra-Quiet Convection Cooling: Features active upper and lower convection cooling with quiet system fans and dedicated SSD heat sinks, maintaining noise levels under 19 dB(A) during standby.
- Ultra-Compact Design: Roughly the size of a standard paperback book, making it exceptionally portable and easy to place on desks, entertainment centers, or bookshelves.
- Advanced TOS 6 OS & Comprehensive Backup: Supports Btrfs and EXT4 file systems, TRAID/RAID configurations, Time Machine, Cloud Sync, Duple Backup, and snapshot protection.
Technical Specifications
| Category | Specification |
|---|---|
| Processor Model | Intel Quad-Core (Max burst up to 3.4 GHz) |
| System Memory | 8 GB DDR5 SODIMM (Expandable up to 32 GB) |
| Drive Bays / Slots | 8x M.2 2280 NVMe PCIe 3.0 Slots |
| Max Internal Storage | 64 TB (8 TB x 8 SSDs) |
| Network Interface | 1 x 10GbE RJ-45 Ethernet Port |
| Expansion Ports | 3 x USB 3.2 Host Ports (10Gbps), 1 x HDMI 2.0b |
| Supported RAID Types | TRAID, TRAID+, Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| File Systems | Internal: Btrfs, EXT4 | External: EXT3, EXT4, NTFS, FAT32, HFS+, Btrfs |
| Noise Level | 19.0 dB(A) in standby mode |
| Dimensions (H x W x D) | 177 x 60 x 140 mm |
| Color Variant | Black |
Official Product Guide & Installation
Learn how to set up your TerraMaster F8 SSD NAS with this official M.2 NVMe installation guide:
Frequently Asked Questions (FAQ)
Q1: What drives are supported by the TerraMaster F8 SSD 8-Bay All-NVMe NAS Enclosure (Black)?
The TerraMaster F8 SSD supports up to 8 M.2 2280 M-Key NVMe PCIe 3.0 SSDs, offering maximum capacity up to 64TB. Standard 2.5-inch or 3.5-inch SATA HDDs/SSDs are not supported on this all-flash device.
Q2: Does the TerraMaster F8 SSD NAS support 10GbE network speeds?
Yes. The unit comes with a built-in 10GbE RJ-45 copper Ethernet port that provides actual read/write transfer speeds up to 1020 MB/s when paired with 10G-compatible network hardware.
Q3: Is tools required to install SSDs into the TerraMaster F8 SSD?
No, the TerraMaster F8 SSD features a drawer-style tool-free design with push-lock mechanism, enabling rapid drive installation in less than 2 minutes.
Q4: How quiet is the TerraMaster F8 SSD 8-Bay All-NVMe NAS Enclosure (Black)?
Because NVMe SSDs have no moving mechanical parts and the NAS features silent convection fans, standby noise levels stay below 19 dB(A), making it ideal for quiet desktop, studio, or living room setups.
Q5: Is the TerraMaster F8 SSD available in other colors?
This specific listing is for the standard Black variant of the TerraMaster F8 SSD 8-Bay All-NVMe NAS Enclosure.
