Description

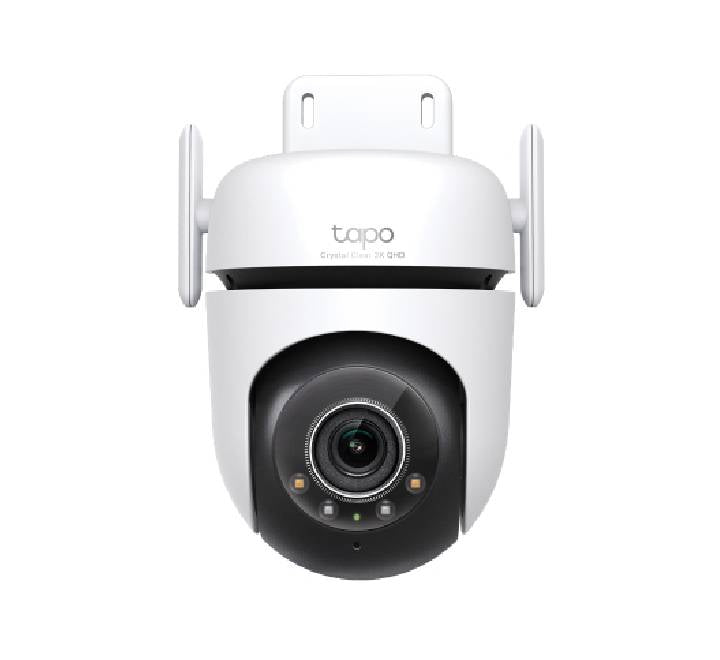

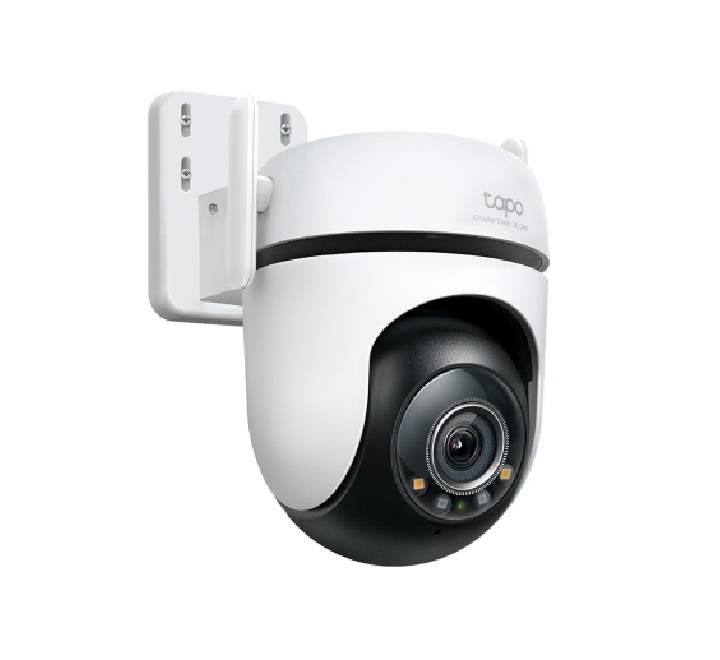

TP-Link Tapo C520WS Outdoor Pan/Tilt Security Wi-Fi Camera

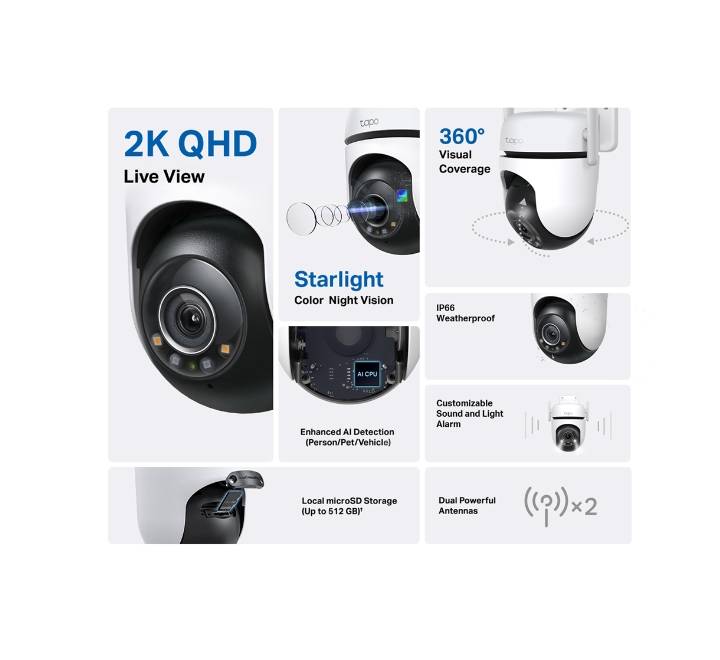

- 2K QHD Live View-Adopting a 2560 × 1440 resolution, Tapo C520WS provides 1.7 × more pixels and delivers sharper images than 1080p.
- Starlight Color Night Vision-Adopting an F1.6 large-aperture lens and starlight sensor, Tapo C520WS captures more light and has higher photosensitivity, thus rendering brighter colors under lower light conditions than full-color night vision cameras with an F2.2 lens and ordinary sensor.
- 360° Visual Coverage- Provides 360° horizontal & 130° vertical viewing range, enabling you to focus on more vital areas and eliminate blind spots.
- Free Person/Pet/Vehicle Detection-Smart AI identifies people, pets, and vehicles, notifying users as needed.
- Customizable Sound and Light Alarm-Record your own audio as an alarm to extend your usages. The ultra-bright and adjustable light is also supported to frighten unwanted visitors away.
- Secure Local & Cloud Storage-Save recorded videos to a microSD card† or by using Tapo Care** cloud services.
- IP66 Weatherproof-Offers excellent waterproof and dustproof performance for outdoor scenarios.
- Wired/Wireless Networking-Connect your camera to the network through WiFi or Ethernet for more flexible installation.
- CAMERA
- Image Sensor: 1/3” Progressive Scan CMOS Starlight Sensor
- Lens
- Focal Length: 3.2 mm
- Aperture: F1.6
- Field of View: 112° (Diagonal), 95°(Horizontal), 53°(Vertical)
- Motion Range
- Pan Mechanical Range: 340° (360° Pan Coverage)
- Tilt Mechanical Range: 60° (130° Tilt Coverage)
- Night Vision
- 850 nm IR LED (98 ft / 29.9 m)
- Full-Color Night Vision
- Lighting: 2× Built-in Spotlights
- Interface & Button
- 1× Ethernet Port
- 1× RESET Button
- 1× MicroSD Card Slot (Up to 512GB)
- VIDEO & AUDIO
- Maximum Resolution: 2K QHD 4MP (2560 × 1440 px)
- Frame Rate: 15/20/25/30 fps (Default 15 fps)
- Digital Zoom: 12x
- Video Compression: H.264
- Live View: Yes
- Image Enhancement
- 3DNR
- WDR
- Audio Input & Output: Built-in Microphone and Speaker
- Audio Communication: Two-Way Audio with Noise Cancellation
- Siren Volume: 93 dB (Level measured at 4-inch/10-cm distance)
- STORAGE
- Local Storage
- MicroSD Card Slot on Camera (Up to 512 GB)
- General Information about using MicroSD Cards >
- Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)
- DETECTION AND NOTIFICATIONS
- AI Detection
- Motion Detection
- Person Detection
- Pet Detection
- Vehicle Detection
- Line-Crossing Detection
- Tamper Detection
- Activity Zones: Yes
- Output Notification
- System Notification
- System Notification with Snapshot (Tapo Care Services)
- NETWORK
- Network Connectivity: Connect via Wi-Fi or Ethernet
- Wireless Connectivity: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
- Ethernet Port: 1× 10/100 Mbps RJ45 Port on Camera
- RTSP: Yes
- ONVIF: Yes
- SECURITY
- Security
- On-Device Machine Learning
- 128-bit AES Encryption with SSL/TLS
- WPA/WPA2-PSK
- POWER
- Power Source: 9V DC Power Adapter
- Input Voltage: 100-240 V, 50/60 Hz
- Output Voltage: 9 V, 0.85 A (DC Power)
- GENERAL
- Smart Integration: Google Assistant, Amazon Alexa
- Weather Resistance: IP66
- System Requirements: Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher
- Mounting Option
- Ceiling-Mounted
- Wall-Mounted
- Pole-Mounted (Pole-Mounting loops required but not included)
- Operating Temperature: -30℃~60℃
- Storage Temperature: -40℃~60℃
- Operating Humidity: 10%~90% RH, Non-condensing
- Storage Humidity: 0~90% RH, Non-condensing
- Dimensions: 4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm)
- Package Contents
- Tapo C520WS Camera
- Power Adapter
- Mounting Anchors
- Mounting Screws
- Bracket Screws
- Mounting Template
- Mounting Bracket
- Waterproof Seal
- Waterproof Cable Attachments
- Quick Start Guide
- Certifications: CE, FCC, RoHS, RCM
