Description

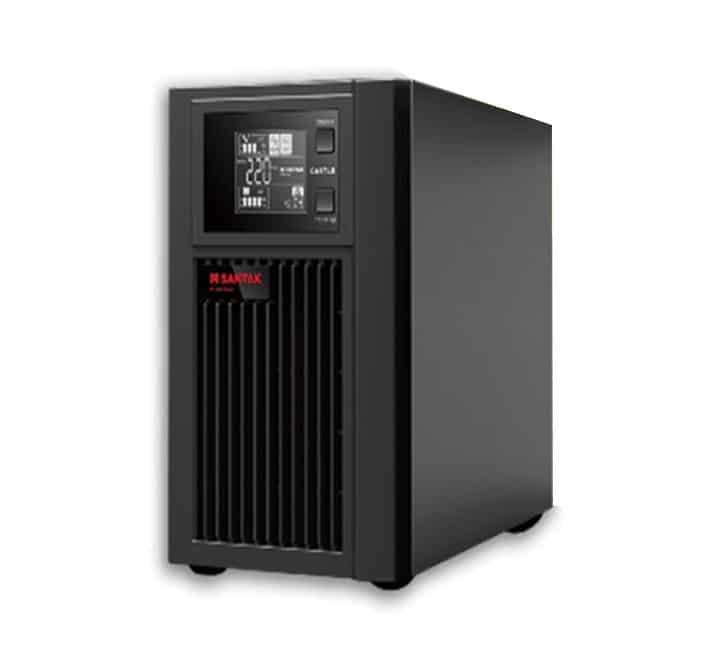

Defend your high-value computer servers, medical instruments, and networked storage hardware against erratic grid issues with the professional Santak Castle 2K Online UPS (C2K UNI). Built utilizing high-performance true online double-conversion architecture, this robust tower uninterruptible power supply ensures a steady pure sine wave output by isolating attached devices from raw electrical irregularities. Boasting a zero-millisecond transfer delay, a high-quality physical LCD screen, and versatile multi-format Universal output sockets, it prevents sudden system failure and critical data corruption during unpredictable power spikes and blackouts.
Key Features
- True Online Double-Conversion: Constantly filters and regenerates pure electrical waves, providing an absolute 0ms transfer time from mains line to battery reserve when unexpected blackouts happen.
- Enhanced Power Output (1800W): Offers a 2000VA capacity paired with an optimized 0.9 output power factor, meaning it can deliver more actual wattage to handle power-heavy enterprise server loads safely.
- Versatile C2K UNI Universal Sockets: Equipped with multi-standard Universal output receptacles on the rear panel, accommodating various electrical plug designs without the need for adapters.
- High-Quality LCD Multi-View Screen: Displays live diagnostics at a glance, including system operational mode, current load percentages, real-time battery charge levels, input/output voltage metrics, and internal system fault indicators.
- Wide Operating Input Range (100V - 300V): Tolerates severe grid instability and brownout valleys without drawing down internal battery power, maximizing your overall battery lifespan.
- Intelligent Expansion Slot Capability: Features an open communication port layout supporting optional network configurations like SNMP Management Cards (NMC), CMC, or AS400 dry contact relay cards for remote LAN monitoring.
Technical Specifications
| Component Specifications | Technical Parameters |
|---|---|
| Brand & Model Series | Santak Castle Series - Castle 2K UNI (Tower Type) |
| Nominal Capacity | 2000 VA / 1800 Watts (Output Power Factor: 0.9) |
| UPS Topology | True Online Double-Conversion Architecture |
| Input Mains Voltage Range | 100 VAC – 300 VAC (Single Phase with Ground) |
| Input Frequency Range | 40 Hz – 70 Hz (Auto-Sensing, Generator Compatible) |
| Input Power Factor | ≥ 0.99 at nominal mains condition |
| Output Voltage Regulation | 220V / 230V / 240VAC (Tight ± 1% regulation) |
| Output Waveform | Pure Sine Wave (< 1% THDv with pure linear loads) |
| Transfer Intermission Time | Mains Mode to Battery Mode: 0 ms | Inverter Mode to Bypass Mode: 4 ms (typical) |
| Output Receptacles | 4x Multi-Standard UNIVERSAL Sockets |
| Battery Cell Parameters | 4x Internal Maintenance-Free Sealed Lead-Acid (VRLA) 12V / 9Ah Batteries (48VDC loop) |
| Backup Standby Run Time | > 3.5 Minutes at full 100% load | ~10 Minutes at half 50% load |
| Recharger Turnaround | 4 Hours required back up to 90% total system volume capacity |
| Inverter Energy Efficiency | Inverter/Line Mode: > 91% | ECO Power Saving Mode: 97% |
| System Communications | Built-in RS232 Interface Port + 1x Open Intelligent Slot for expansion cards |
| Operational Environment | Temperature: 0 - 40°C | Noise level less than 40dB at a 1-meter front boundary radius |
| Dimensions & Weight | 190 x 399 x 327 mm (W x D x H) | Net Weight: Approx. 17.4 kg |
