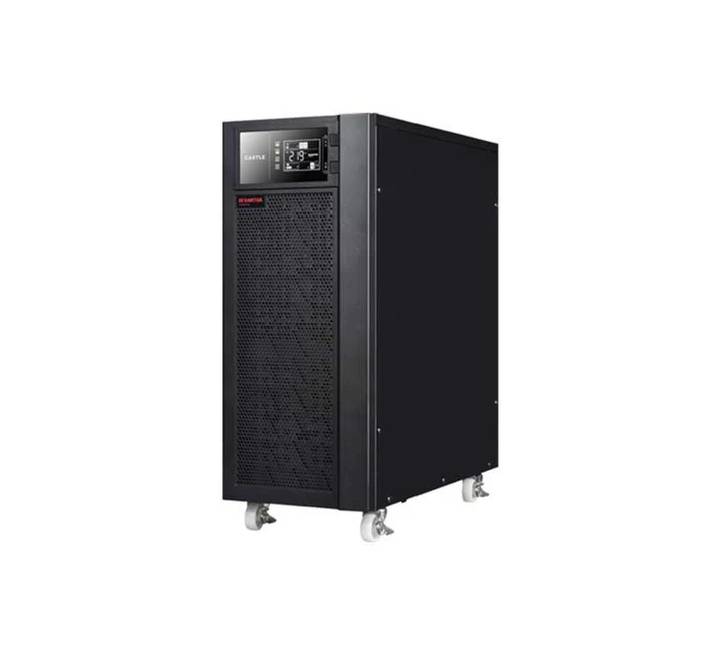

SANTAK Castle 10KS Online UPS (C10KS UNI) – 10kVA Heavy-Duty Long-Run Enterprise Protection
Defend your mission-critical infrastructure against unpredictable local grid behavior with the heavy-duty SANTAK Castle 10KS Online UPS (C10KS UNI). Engineered for high-density server architecture, enterprise data systems, and sensitive laboratory devices, this professional-grade double-conversion online UPS delivers an impressive 10000VA / 9000W of clean, uninterrupted pure sine wave power.
As a premium "Long-Run Type" model, the C10KS UNI bypasses rigid runtime limitations by supporting customized, high-capacity external battery configurations. Tailor your external battery system to scale from standard emergency shut-down safety buffers up to extensive multi-hour operational windows.
Key Features & Performance Benefits
- High Power Capacity: Delivers a strong 10kVA / 9kW profile with a high 0.9 output power factor, offering up to 26% more structural load handling than legacy models.
- True Double-Conversion Design: Features an optimized online topology providing absolute isolation from line anomalies with a 0ms (zero millisecond) transfer time.
- Scalable Extended Runtime: Long-backup design relies on an external array of 16x 12V batteries, open to high-rate recharging options up to 4A for larger configurations.
- Dynamic LCD + LED Console: Real-time operations monitoring displays current load rating, overall battery capability, voltage input/output metrics, and active fault detection.
- Advanced Generator & Grid Synergy: Ultra-wide input voltage flexibility (120–275VAC) and extensive input frequency tolerance (40Hz–70Hz) provide seamless power matching with heavy facility generators.
Technical Specifications
| Parameter | Specifications |
|---|---|
| Brand & Model | SANTAK Castle 10KS (C10KS UNI) |
| Power Rating | 10000 VA / 9000 W |
| Topology Type | Online Double-Conversion (True Online) |
| Input Voltage Window | 120 ~ 275 VAC |
| Input Frequency | 40 Hz – 70 Hz (Single Phase with Ground) |
| Nominal Output Voltage | 220 VAC (±1% stationary regulation) |
| Waveform Quality | Pure Sine Wave (THDV <2% linear load) |
| Efficiency Mode | Up to 94% Line Mode / Up to 98% ECO Mode |
| Battery Configuration | 16 Pcs × 12V External Battery System (User Customized) |
| Max Charging Current | High rate 4A charger capacity |
| Communications Interface | RS232 Standard (Optional slots for NMC Webcard, Modbus, Dry Contact) |
| Physical Footprint | 212 mm × 500 mm × 420 mm (W × H × D) |
| Net Weight | 16 kg |
| Warranty | 3 Years |
