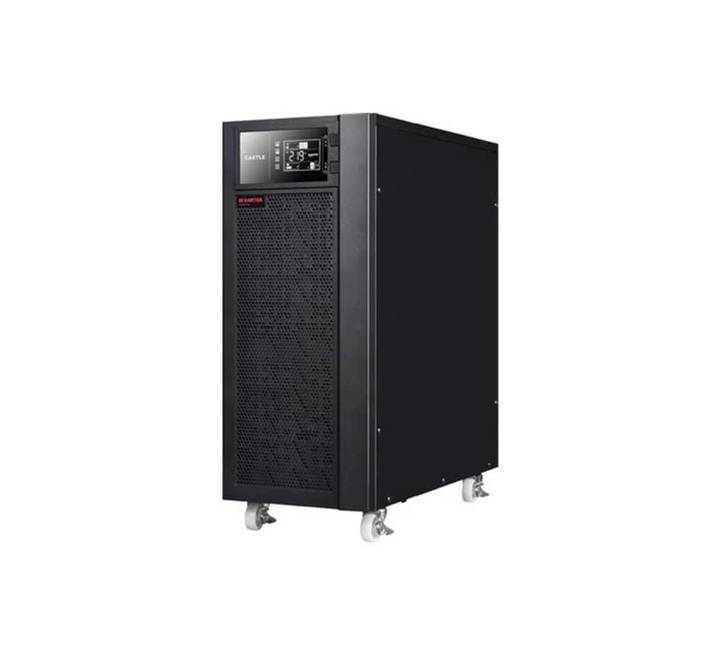

SANTAK Castle 10K Online UPS (C10K UNI) – 10kVA All-in-One Enterprise Power Protection
Shield your sensitive hardware architectures and server arrays against local voltage instabilities, spikes, and blackouts with the SANTAK Castle 10K Online UPS (C10K UNI). Tailored for enterprise environments, branch data centers, and critical network installations across Myanmar, this tower-type double-conversion UPS delivers a massive 10000VA / 9000W load rating of true pure sine wave energy.
Unlike long-run alternatives, the C10K UNI is engineered as a Standard Type System. It features a completely integrated interior chassis housing 16 high-performance 12V 9Ah batteries, giving you a dense, self-contained, out-of-the-box power buffer without requiring extra battery cabinets or external layouts.
Key Features & Performance Benefits
- All-in-One Standard Type: Built-in 16-piece 12V 9Ah high-discharge internal battery array cuts out physical layout hassles and streamlines hardware maintenance.
- Online Double-Conversion Infrastructure: Separates critical operations completely from incoming utility grid anomalies, boasting a true 0ms (zero millisecond) transfer runtime.
- High Power Density Profile: Optimized 10kVA capacity built around a 0.9 output power factor, providing safe and massive utility delivery for heavy enterprise servers.
- Clear LCD + LED Interface: Keeps IT managers up to date instantly by rendering real-time metrics including load levels, exact remaining battery reserves, voltage, and line statuses.
- Robust Voltage Range Compatibility: Features a wide input threshold (120–275VAC) designed specifically to handle erratic facility power grids and work seamlessly with backup generators.
Technical Specifications
| Parameter | Specifications |
|---|---|
| Brand & Model | SANTAK Castle 10K (C10K UNI) |
| Power Rating | 10000 VA / 9000 W |
| UPS Type | Standard Type (With Internal Batteries Built-In) |
| Topology | Online Double-Conversion (True Online) |
| Input Voltage Tolerance | 120 ~ 275 VAC |
| Input Frequency Limits | 40 Hz – 70 Hz (Single Phase + Ground) |
| Nominal Output Voltage | 220 VAC (±1% statutory regulation) |
| Output Waveform | Pure Sine Wave |
| Internal Batteries | 16 Pieces × 12V 9Ah Sealed Lead-Acid (Internal) |
| Recharge Current | Standard system optimized current (1.2A ~ 2A) |
| Local Management Ports | RS232 Standard Interface (Optional USB / NMC Webcards) |
| Device Dimensions | 260 mm × 717 mm × 570 mm (W × H × D) |
| Net System Weight | Approx. 85 kg - 93 kg (Due to integrated battery bank mass) |
| Warranty | 3 Years |
