Description
Premium Sealed Backup Power Cell for Dependable UPS Systems

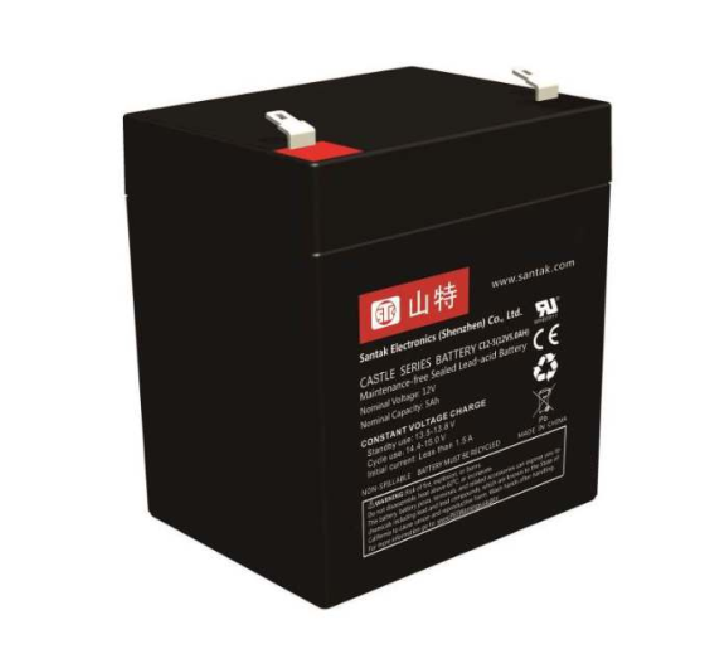

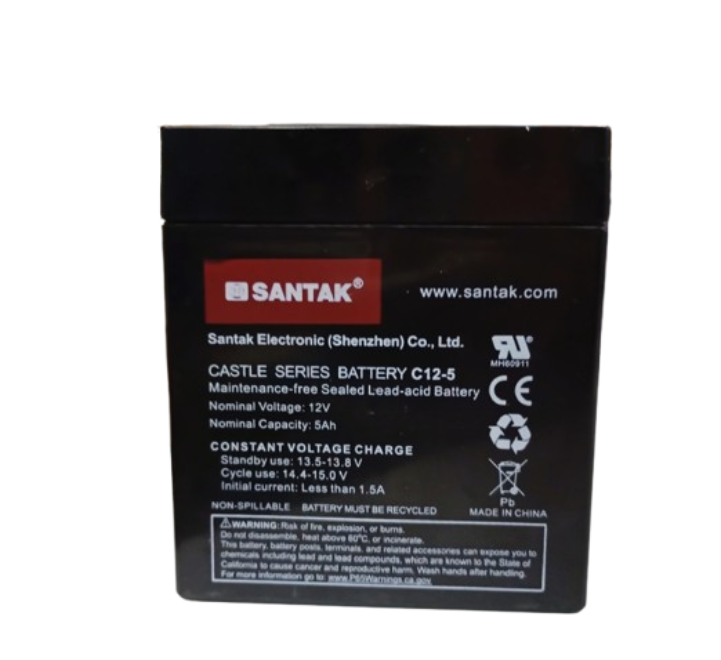

Breathe new life into your backup systems with the genuine Santak C12-5Ah 12V 5Ah UPS Replacement Battery. Engineered specifically to meet the high-rate discharge requirements of modern uninterruptible power supplies, emergency lighting, security setups, and medical electronics, this maintenance-free battery ensures peak standby performance. Built with advanced Valve Regulated Lead-Acid (VRLA) and Absorbent Glass Mat (AGM) technologies, the Santak C12-5Ah provides exceptional cyclic stability and heavy-duty current delivery without risk of dangerous acid leaks or gassing.
Key Features & Benefits
- Maintenance-Free Sealed Structure: The rugged VRLA spill-proof design completely eliminates the need for water replenishment or regular electrolyte leveling, giving you a safe, worry-free install.
- Advanced AGM Technology: Premium glass mat separators absorb internal acid completely, facilitating superior oxygen recombination efficiency and reducing self-discharge rates during long standby cycles.
- Heavy-Duty High-Rate Grid Design: Built using ultra-pure lead-calcium tin alloy grids that lower internal resistance, allowing the cell to rapidly deliver high-density power during critical power grid failures.
- Excellent Deep Discharge Recovery: Meticulously optimized to handle sudden deep discharges and bounce back efficiently to full charge capacity, maximizing overall system lifespan and durability.
- Robust, Flame-Retardant Casing: Housed in a heavy-duty, impact-resistant ABS plastic case that protects the internal active materials from severe vibrations, physical shocks, and high thermal strain.
- Versatile Positioning Capabilities: Because of its fully sealed structure, this battery can be mounted safely in multiple orientations (except continuously upside down) inside compact tower housings or desktop cabinets.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Santak Electronics |
| Model Number | C12-5AH |
| Battery Technology Type | Sealed Lead-Acid (SLA) / Valve Regulated Lead-Acid (VRLA) / AGM |
| Nominal Voltage | 12 Volts (12V DC) |
| Nominal Capacity | 5 Ah (at 20-Hour Rate to 1.75V per cell) |
| Terminal Type | Standard F1 Faston Terminals (0.187 in width / 4.75 mm) |
| Designed Floating Life | Up to 3–5 Years in standby float configurations (at 25°C) |
| Casing Material | High-Impact ABS Plastic |
| Dimensions (L x W x H) | 3.54 × 2.76 × 4.02 inches (90 × 70 × 102 mm) |
| Total Height (With Terminals) | 4.21 inches (107 mm) |
| Approximate Weight | 1.60 kg (3.53 lbs) |
