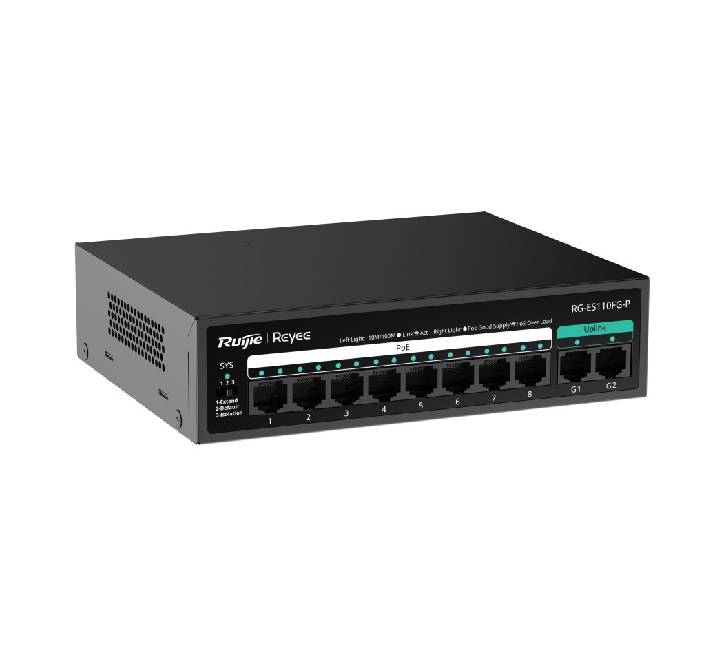

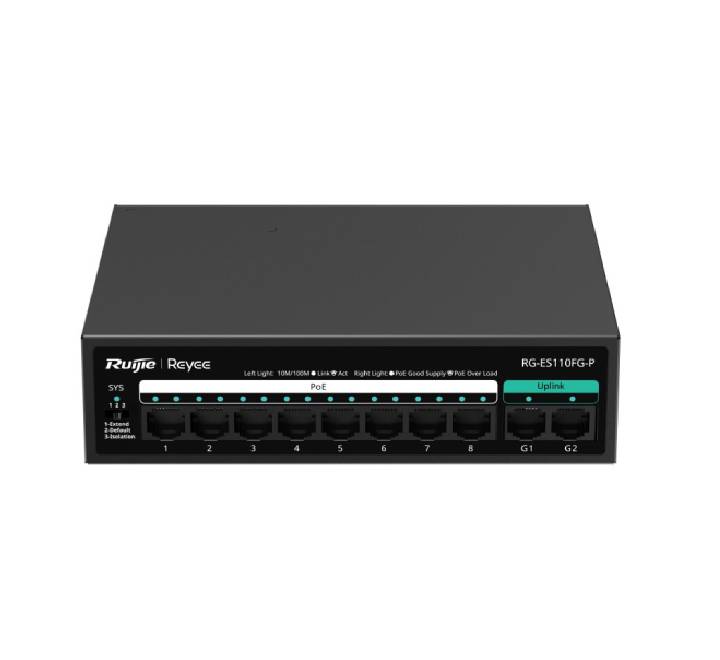

Ruijie Reyee RG-ES110FG-P 8-Port Unmanaged PoE Switch with 2 Gigabit Uplink Ports (110W Budget)
Upgrade your IP surveillance and high-bandwidth networking infrastructure with the Ruijie Reyee RG-ES110FG-P unmanaged PoE switch. Designed specifically for high-definition CCTV camera systems, wireless access points, and modern business networks, this switch combines 8 Fast Ethernet PoE+ ports (802.3af/at) with 2 Gigabit (10/100/1000 Mbps) Uplink ports to eliminate network bottlenecks when connecting to routers or NVRs.
Delivering a massive total power budget of 110W (up to 30W per port), the RG-ES110FG-P effortlessly powers demanding PTZ and night-vision IP cameras. Packed with intelligent hardware features like PoE Auto Recovery (PoE Watchdog), 250-meter long-distance extend mode, and 6kV surge protection, it offers unmatched reliability and silent 24/7 operation across office and commercial installations in Myanmar.
Key Features
- 2 High-Speed Gigabit Uplink Ports: Dual 10/100/1000 Mbps RJ45 uplink ports ensure maximum backbone data transfer speed to core routers and NVR recorders without traffic congestion.
- 110W Total PoE Power Budget: 8 PoE/PoE+ ports compliant with IEEE 802.3af/at standards support up to 30W output per port for high-consumption PoE devices.
- PoE Auto Recovery (PoE Watchdog): Automatically detects frozen or unresponsive IP cameras and restarts the corresponding port power to restore operation without manual intervention.
- 250m Extended Long-Distance Mode: Built-in DIP switch allows long-distance transmission over Cat5e/6 cabling up to 250 meters for remote perimeter cameras.
- Port Isolation & Security: Isolates downlink ports 1–8 from each other to prevent broadcast storms and unauthorized local data leaks while maintaining uplink access.
- Ruijie Cloud Network Visibility: Plug-and-play unmanaged simplicity with automatic topology visibility on the Ruijie Cloud app when paired with a managed upstream switch.
- Industrial Metal Casing & Silent Heat Dissipation: Fanless, rugged metal housing ensures whisper-quiet, uninterrupted continuous operation in control rooms and offices.
Technical Specifications
| Category | Specification |
|---|---|
| Model Version | RG-ES110FG-P |
| Total Port Count | 8 Ports (8x 10/100Mbps Downlink + 2x 10/100/1000Mbps Gigabit Uplink) |
| PoE Standard & Budget | IEEE 802.3af/at | 110W Total Budget (Up to 30W per port) |
| Switching Capacity & Forwarding | 5.6 Gbps Switching Capacity | 4.17 Mpps Forwarding Rate |
| DIP Switch Modes | Default Mode, Extend Mode (Up to 250m @ 10Mbps), Port Isolation Mode |
| Intelligent Features | PoE Auto Recovery (PoE Watchdog), Hardware Flow Control |
| Surge Protection & ESD | Service Port: ±4 kV | Power Connector: ±6 kV (Common Mode) |
| Housing & Thermal Design | Rugged Metal Enclosure | Fanless Passive Heat Dissipation |
| Dimensions & Weight | 166 x 132.6 x 43 mm | 0.97 kg (Unit) / 1.22 kg (Package) |
