Description

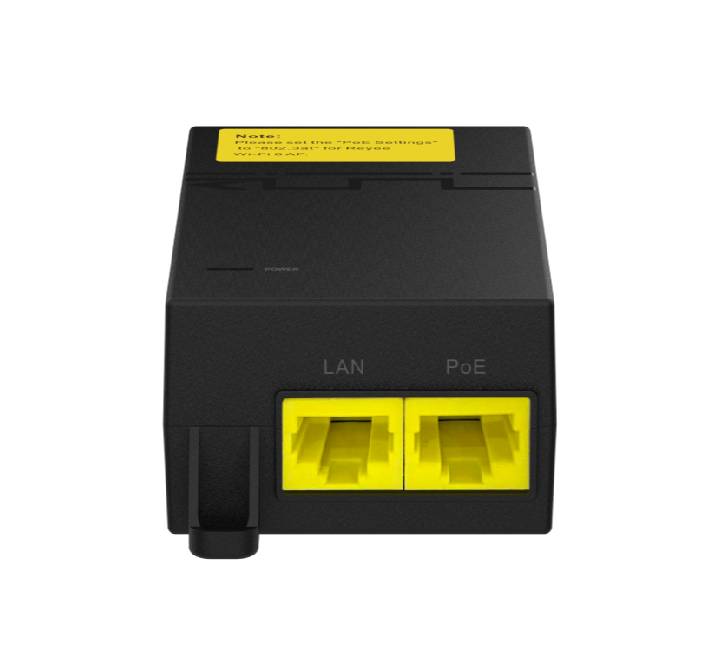

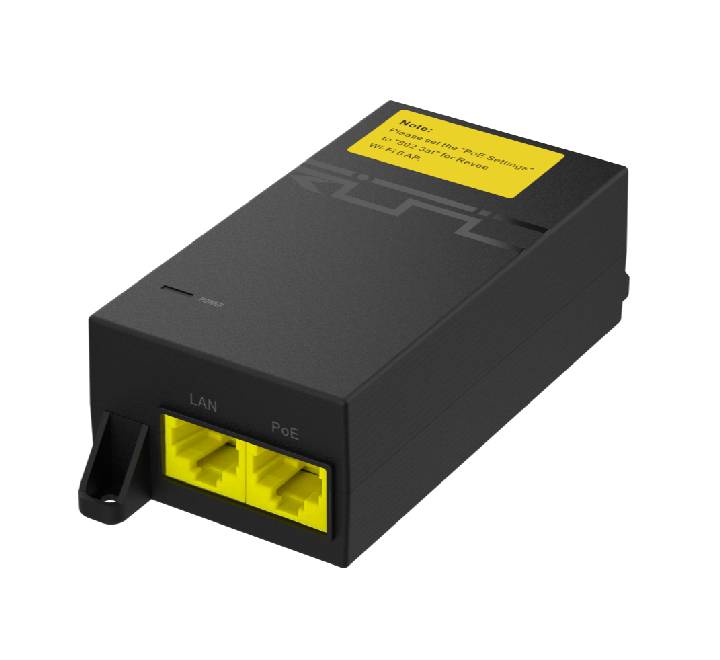

Ruijie Reyee RG-PoE-AT30 1-Port Gigabit Passive PoE+ Injector (52V 31.2W)
Deliver reliable power and high-speed data transmission over standard Ethernet cabling with the Ruijie Reyee RG-PoE-AT30. Designed to power high-demand networking hardware, this high-performance Gigabit PoE injector delivers a stable 52V DC output up to 31.2W—making it the ideal solution for powering Wi-Fi 6 access points, PTZ IP security cameras, and VoIP telephony systems.
Equipped with a 1000Base-T Gigabit LAN port, the RG-PoE-AT30 guarantees full network data throughput without bottlenecking your connection. Featuring high-level 2000A surge discharge protection and a compact, lightweight footprint, it provides dependable, continuous power for home, office, and commercial networking setups across Myanmar.
Key Features
- High 31.2W Power Output: Supplies 52V DC at 0.6A to comfortably power power-hungry wireless access points and surveillance equipment.
- Gigabit Speed Transmission (1000Base-T): Full 10/100/1000 Mbps throughput ensures zero data loss or speed degradation across your network.
- 2000A Heavy-Duty Surge Protection: Built-in 2000A (8/20 µs) discharge current guards connected devices against sudden power surges and lightning spikes.
- 2-Pair Power Architecture: Efficiently routes power over Pins 4,5 (+) and Pins 7,8 (-) using standard UTP network cables up to 100 meters.
- Compact & Easy Installation: Lightweight 145g design with plug-and-play convenience allows quick setup in tight enclosures or wall cabinets.
- Wide Temperature Adaptability: Engineered to operate smoothly between -10°C and +45°C for reliable 24/7 continuous operation in tropical climates.
Watch Overview & Unboxing
Technical Specifications
| Category | Specification |
|---|---|
| Model Version | RG-POE-AT30 |
| PoE Output & Power | Passive PoE, 52V DC @ 0.6A (31.2W Max) |
| Network Interface | 1x 1000Base-T RJ45 Data IN, 1x 1000Base-T RJ45 PoE OUT |
| Input Voltage Rating | 100-240V AC @ 50/60Hz, Max 0.7A |
| Power Pin Assignment | 2-Pair Powering: Pins 4, 5 (+) & Pins 7, 8 (-) |
| Surge Protection | Max Discharge Current: 2000A (8/20 µs) |
| Operating Temperature | -10°C to +45°C (14°F to 113°F) |
| Dimensions & Weight | 95.2 x 52.2 x 33.2 mm | 145 grams |
