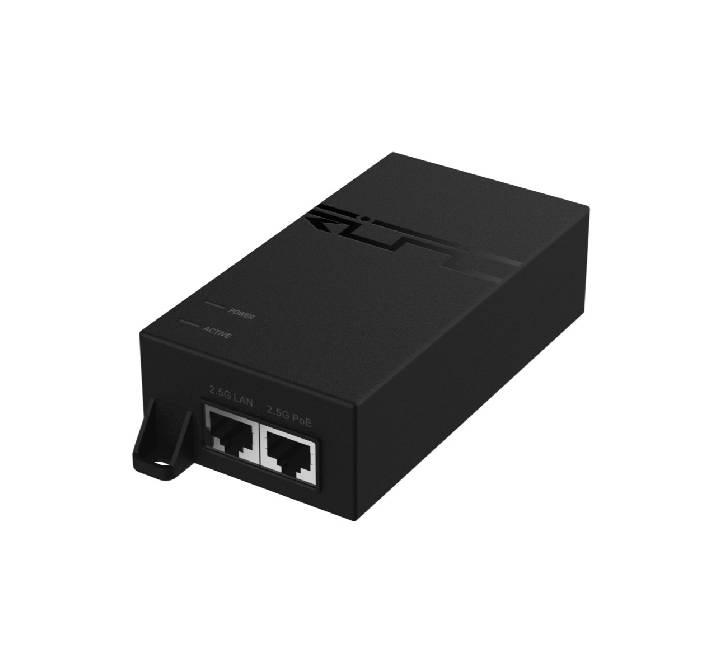

Ruijie Reyee RG-POE-50-60W-MG | Multi-Gigabit 2.5G High-Power 60W PoE Injector
Unlock full Multi-Gigabit performance for high-power network devices with the Ruijie Reyee RG-POE-50-60W-MG 2.5G PoE Injector. Specially engineered for high-bandwidth deployments across Myanmar—including corporate offices, surveillance systems, hotels, and enterprise Wi-Fi 6 / Wi-Fi 7 networks in Yangon and Mandalay—this high-capacity power adapter eliminates bandwidth bottlenecks and delivers simultaneous power and data over a single Ethernet cable.
Equipped with 2 x 2.5G RJ45 shielded ports (1x Data IN, 1x PoE Out), the RG-POE-50-60W-MG supplies up to 60 Watts of Hi-PoE power (56V DC) using advanced 4-pair power delivery. It is the perfect solution for powering hungry network endpoints such as Wi-Fi 7 enterprise access points, PTZ speed dome cameras, outdoor wireless bridges, and VoIP terminals without needing dedicated electrical outlets or upgrading non-PoE switches.
Key Features & Advantages
- Multi-Gigabit Speed (2.5 Gbps Throughput): Built with adaptive 10/100/1000/2500 Mbps RJ45 ports to support ultra-fast Wi-Fi 6 / Wi-Fi 7 access point backhauls without network throttling.
- High Power Output (60W Hi-PoE / 802.3bt): Delivers up to 60.48W output (56V DC, 1.08A) via 4-pair power transmission (Pins 1,2,4,5+ / Pins 3,6,7,8-) for heavy-duty hardware.
- Long-Distance Transmission: Transmits simultaneous high-speed data and DC power reliably over standard Category 5e/6/6A copper Ethernet cables up to 100 meters (328 feet).
- Enterprise Electrical Protection: Integrates 65V active clamping protection, differential and common mode surge suppression, and shielded RJ45 sockets to block electromagnetic interference.
- Plug-and-Play Simplicity: Requires zero software setup or manual configuration—automatically detects and delivers precise required voltage to connected endpoints safely.
- Compact & Durable Chassis: Includes a sturdy flame-retardant housing with a standard 3-pole C6 inlet, engineered for continuous 24/7 commercial operation.
Product Unboxing & Overview
Technical Specifications
| Model Name | Ruijie Reyee RG-POE-50-60W-MG |
| Ethernet Data Transfer Rate | 10 / 100 / 1000 / 2500 Mbps (2.5G Multi-Gigabit) |
| Network Interfaces | 1 x 2.5G Data IN Port (RJ45 Shielded) | 1 x 2.5G PoE Out Port (RJ45 Shielded) |
| Maximum Output Power | 60 W (60.48 W Max Output) |
| Output Voltage & Current | 56 V DC @ 1.08 A |
| PoE Pin Assignment | 4-Pair Powering: Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-) |
| Compliance / Standards | IEEE 802.3bt / 802.3at / 802.3af Compatible |
| AC Input Voltage | 100 to 240 V AC @ 50/60 Hz (1.5A Max) |
| AC Connector Type | 3-pole Appliance Inlet Type C6 (3-Pin Power Cable) |
| Surge & Clamping Protection | Differential & Common Mode Protection | 65V Active Clamping Protection |
| Transmission Distance | Up to 100 meters (328 feet) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions & Weight | 137.4 mm × 62.3 mm × 32.6 mm | 225 g |
