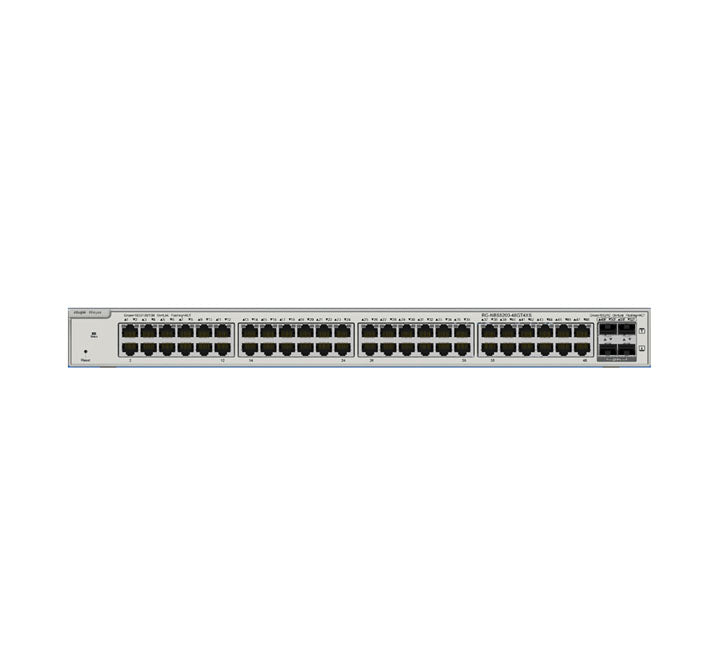

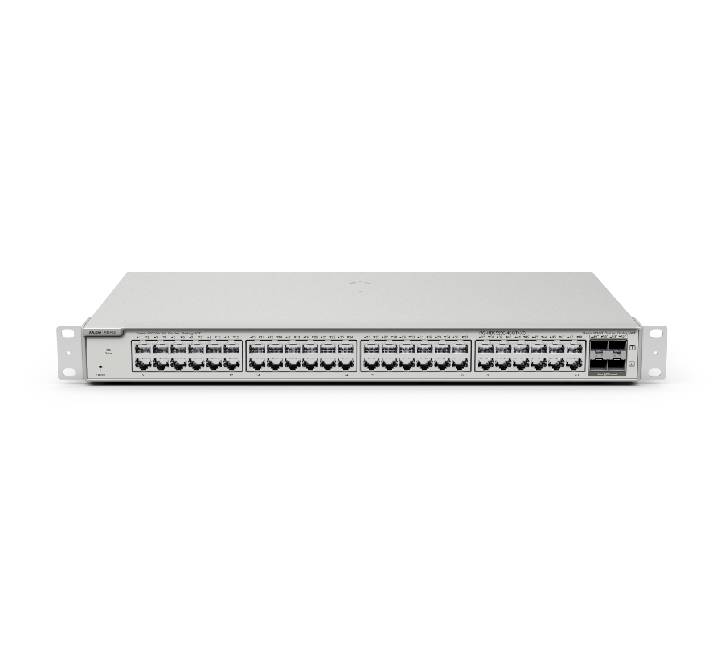

Ruijie Reyee RG-NBS5200-48GT4XS | 48-Port Enterprise Layer 3 Gigabit Cloud Managed Switch with 4x 10G SFP+ Uplinks
Empower your enterprise network core, multi-tenant commercial complexes, and data aggregation layers in Myanmar with the high-performance Ruijie Reyee RG-NBS5200-48GT4XS Layer 3 Cloud Managed Switch. Engineered for demanding corporate headquarters, multi-story hotels, educational campuses, and large-scale CCTV infrastructures in Yangon and Mandalay, this 1U rackmountable core/aggregation switch delivers massive switching bandwidth of 176 Gbps and a packet forwarding rate of 132 Mpps.
The RG-NBS5200-48GT4XS features 48 x Gigabit RJ45 Ethernet ports for ultra-dense terminal connectivity, plus 4 x 10GE SFP+ optical uplink slots for high-speed fiber backhaul connections. Packed with advanced Layer 3 enterprise routing capabilities (DHCP Server, Static Routes, RIP, OSPF), Virtual Stacking (VCS), 6 kV surge protection, and 100% free lifetime Ruijie Cloud management, it provides an unbeatable enterprise network backbone with zero recurring license fees.
Key Features & Advantages
- 48 Gigabit Ports + 4 x 10G SFP+ Fiber Uplinks: Provides 48 high-speed Gigabit RJ45 ports for local network distribution and 4 dedicated 10G SFP+ optical ports to eliminate server and core uplink bottlenecks.
- Advanced Layer 3 Dynamic Routing: Built-in support for hardware-level Layer 3 features including Static Routing, RIP, OSPF, and on-board DHCP Server functionality to assign IP addresses across distinct VLANs automatically.
- Massive Switching Performance (176 Gbps): Powered by an enterprise switching engine delivering 176 Gbps non-blocking capacity and 132 Mpps forwarding speed to maintain zero packet loss during peak traffic.
- Virtual Stacking & System Redundancy (VCS): Supports Virtual Stacking System (VCS) to combine multiple switches into a single logical unit for simplified centralized management and port redundancy.
- Enterprise-Grade Security & IP Camera Optimization: Features CPU Protect Policy, Network Loop Prevention (STP/RSTP/MSTP), Port Isolation, ACL security rules, and smart IP camera recognition to optimize video streams.
- Robust 6 kV Surge Protection: Built-in 6 kV surge suppression on all Ethernet service ports protects internal electronics from power surges and electrical strikes common in Myanmar.
- Free Lifetime Ruijie Cloud Remote Management: Remotely configure VLANs, monitor CPU/memory load, check real-time topology, and push batch firmware updates via the Ruijie Cloud App or Web dashboard with no licensing fees.
Technical Specifications
| Model Name | Ruijie Reyee RG-NBS5200-48GT4XS |
| Device Architecture | Enterprise Layer 3 Managed Non-PoE Switch |
| Total Physical Ports | 52 Ports (48x RJ45 Gigabit + 4x 10G SFP+ Optical Uplinks) |
| Gigabit Ethernet Ports | 48 x 10/100/1000BASE-T RJ45 Ports |
| 10G SFP+ Uplink Slots | 4 x 10GE SFP+ Slots (1G/10G Optical Auto-Negotiation) |
| Switching Fabric Capacity | 176 Gbps |
| Packet Forwarding Rate | 132 Mpps |
| Layer 3 Features | Static Routing, RIP, OSPF, DHCP Server, DHCP Relay |
| MAC Address Table | 16,000 Entries |
| VLAN Capability | 4,094 VLAN IDs (Voice VLAN, Port VLAN, 802.1Q Tagging) |
| Stacking Support | Virtual Stacking System (VCS) Supported |
| Jumbo Frame (MTU) | 9,216 Bytes |
| Surge Immunity Protection | Service Ports: 6 kV Common Mode | Power Connector: 6 kV |
| Management Protocols | Free Lifetime Ruijie Cloud App, Web GUI, SNMP v1/v2c/v3 |
| Form Factor & Hardware | 19-inch 1U Metal Chassis (Rackmount Brackets Included) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions & Package Weight | 440 mm × 267.5 mm × 43.6 mm | Package Weight: 2.9 kg |
