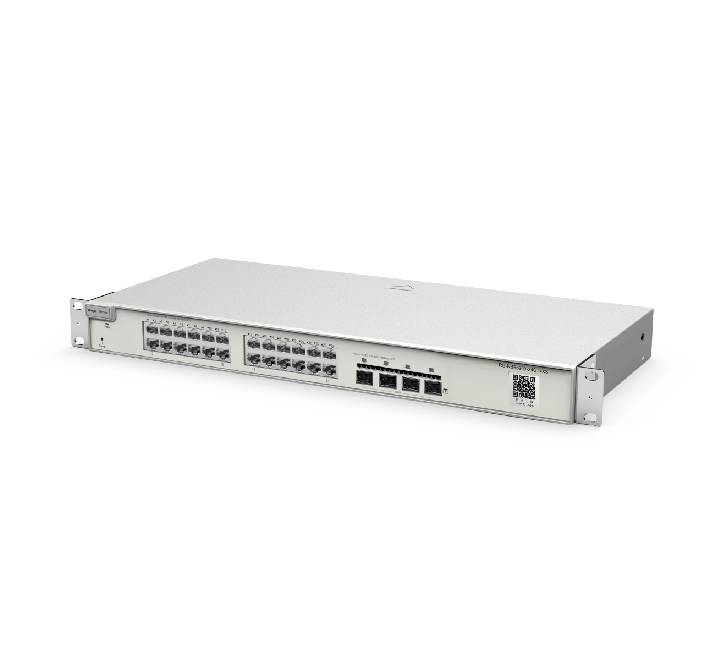

Ruijie Reyee RG-NBS5200-24GT4XS 24-Port Gigabit Layer 3 Cloud Managed Switch with 4x 10G SFP+ Uplinks
Build a high-speed, enterprise-grade core network backbone across your enterprise office, hotel, or commercial building in Myanmar with the Ruijie Reyee RG-NBS5200-24GT4XS Layer 3 cloud-managed switch. Equipped with 24 Gigabit (10/100/1000 Mbps) Ethernet ports and 4 high-speed 10 Gigabit (10G SFP+) fiber uplink ports, this switch ensures seamless data aggregation and eliminates backbone bottlenecks between distribution tiers and core servers.
Designed for performance and continuous operation, the RG-NBS5200-24GT4XS boasts a massive 128 Gbps switching capacity and 96 Mpps packet forwarding rate. Featuring hardware-level Layer 3 dynamic routing capabilities (OSPF/RIP), built-in DHCP server functionality, 6kV surge protection, and VCS virtual stacking support, it provides enterprise-grade reliability paired with lifetime free remote management via the Ruijie Cloud app.
Key Features
- 24 Gigabit RJ45 + 4x 10G SFP+ Fiber Uplinks: Delivers high-density Gigabit connectivity for local devices while providing ultra-fast 10 Gbps fiber uplinks to core switches and NVRs.
- Enterprise Layer 3 Dynamic Routing & DHCP Server: Built-in support for hardware static routing, dynamic routing protocols (OSPF/RIP), and onboard DHCP server capability to manage internal VLAN IP assignment directly.
- 128 Gbps Switching Capacity: High-performance architecture engineered with 96 Mpps forwarding speed and 512 MB RAM to process heavy network traffic effortlessly.
- VCS Virtual Stacking & Interconnect: Supports Virtual Stacking System (VCS) to combine multiple physical switches into a single logical device for unified administration and link redundancy.
- Robust 6 kV Surge Protection: Advanced hardware protection against voltage spikes and power fluctuations commonly encountered in commercial environments across Myanmar.
- Comprehensive Network Security: Equipped with ACL security policies, port isolation, IP-MAC-Port binding, and broadcast storm control to protect business assets from malicious attacks.
- Free Lifetime Ruijie Cloud Remote Control: Monitor link status, configure VLANs, review topology diagrams, and receive alert notifications anywhere, anytime using the Ruijie Cloud app.
Watch Product Unboxing & Features
Technical Specifications
| Category | Specification |
|---|---|
| Model Version | RG-NBS5200-24GT4XS |
| Network Interfaces | 24x 10/100/1000Base-T Ethernet RJ45 Ports + 4x 10GE SFP+ Fiber Uplink Slots |
| Switch Category | Layer 3 Cloud Managed Switch (Non-PoE) |
| Performance | 128 Gbps Switching Capacity | 96 Mpps Packet Forwarding Rate |
| Memory & Storage | 512 MB RAM | 256 MB Flash Storage |
| Layer 3 Features | Static Routing, OSPFv2/OSPFv3, RIP, DHCP Server, DHCP Relay, VCS Stacking |
| Surge Protection | ±6 kV Port Surge Protection | ±6 kV Power Supply Protection |
| Form Factor & Power | 1U 19-inch Metal Rackmount | Integrated AC 100–240V Power Supply (< 42W Max) |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) | MTBF: 400,000 Hours |
| Dimensions & Weight | 440 x 207 x 43.6 mm | Net Weight: ~2.4 kg |
