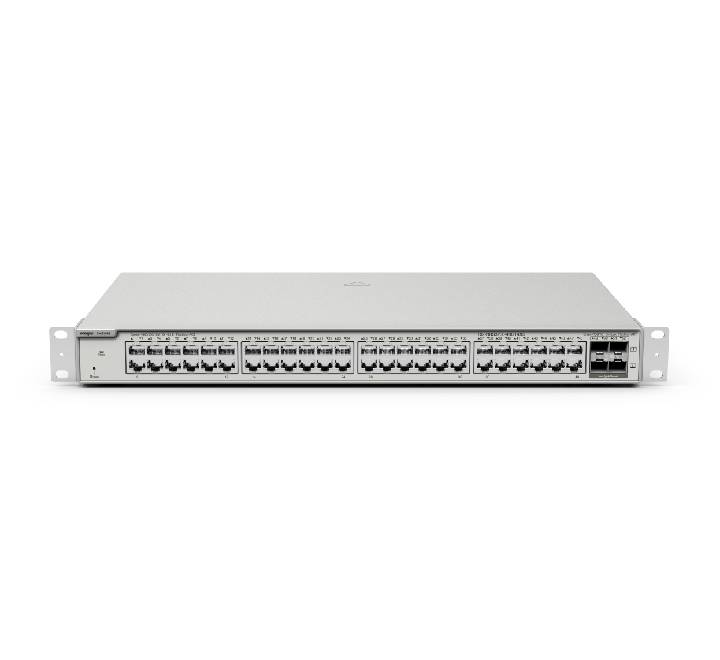

Ruijie Reyee RG-NBS3200-48GT4XS | 48-Port Layer 2+ Gigabit Cloud Managed Switch with 4x 10G SFP+ Uplinks
Future-proof your enterprise network core, data aggregation layers, and high-density office infrastructure in Myanmar with the Ruijie Reyee RG-NBS3200-48GT4XS Layer 2+ Cloud Managed Switch. Engineered for demanding corporate headquarters, multi-story hotels, educational institutions, and high-bandwidth CCTV networks in Yangon and Mandalay, this 1U rackmountable switch delivers massive switching bandwidth of 176 Gbps and a packet forwarding rate of 132 Mpps.
The RG-NBS3200-48GT4XS features 48 x Gigabit RJ45 Ethernet ports for ultra-dense terminal connectivity, plus 4 x 10GE SFP+ optical uplink slots for ultra-fast 10-Gigabit fiber backhaul connections. Equipped with advanced Layer 2+ networking protocols, IP camera recognition for video surveillance optimization, 6 kV surge protection, and free lifetime cloud remote management, it provides an unbeatable enterprise backbone without ongoing software licensing costs.
Key Features & Advantages
- 48 Gigabit Ports + 4 x 10G SFP+ Uplinks: Offers 48 high-speed Gigabit RJ45 ports for access layer connections and 4 dedicated 10G SFP+ optical ports to eliminate server and core uplink bottlenecks.
- Enterprise-Grade Throughput (176 Gbps): Powered by an advanced switching fabric supporting 176 Gbps switching capacity and 132 Mpps forwarding performance to handle heavy network traffic simultaneously.
- Smart IP Camera Recognition: Automatically identifies connected IP surveillance cameras, optimizing video data streams and preventing frame dropping on security recording servers.
- Comprehensive L2+ Network Control: Supports VLAN tagging (up to 4,096 VLANs), Link Aggregation (LACP), IGMP Snooping, Port Isolation, Loop Prevention (STP/RSTP), and ACL security policies.
- Enhanced Surge & Electrical Protection: Integrates 6 kV common-mode surge protection across all Ethernet ports and power lines, protecting hardware against severe electrical fluctuations in Myanmar.
- Free Lifetime Ruijie Cloud Management: Remotely monitor switch performance, configure VLANs, review topology maps, and update firmware via the Ruijie Cloud App or Web interface with zero subscription fees.
Technical Specifications
| Model Name | Ruijie Reyee RG-NBS3200-48GT4XS |
| Total Fixed Ports | 52 Ports (48x RJ45 Gigabit + 4x 10G SFP+ Optical Uplinks) |
| Gigabit RJ45 Ports | 48 x 10/100/1000BASE-T RJ45 Ports (Non-PoE) |
| 10G Optical Uplink Slots | 4 x 10GE SFP+ Optical Slots (1G/10G Auto-negotiation) |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 132 Mpps |
| MAC Address Table | 16,000 Entries |
| VLAN Capacity | 4,096 VLANs |
| Jumbo Frame (MTU) | 9,216 Bytes |
| Surge Protection | Service Ports: 6 kV Common Mode | Power: 6 kV Common & Differential |
| Management System | Ruijie Cloud App, Web Portal, SNMP v1/v2c/v3 (Free Lifetime) |
| Form Factor / Installation | Standard 19-inch 1U Rackmountable (Brackets Included) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions & Package Weight | 440 mm × 267.5 mm × 43.6 mm | Package Weight: 3.6 kg |
