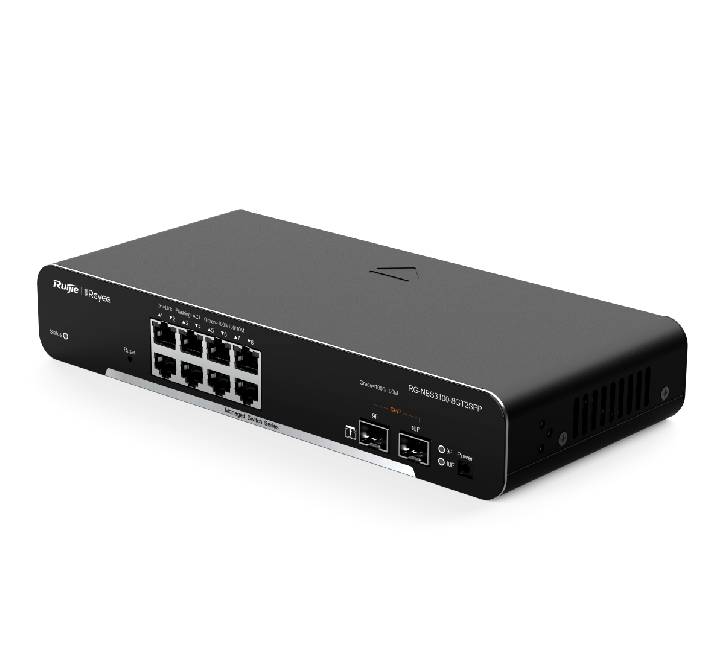

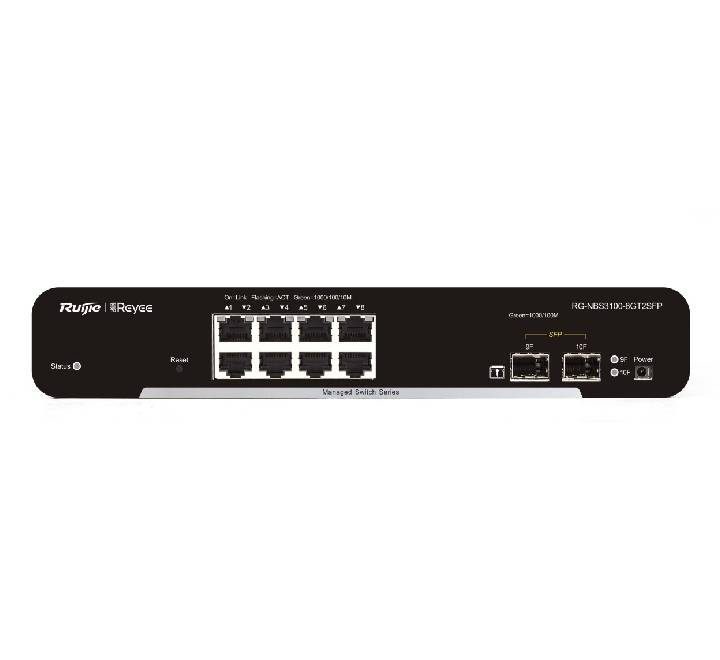

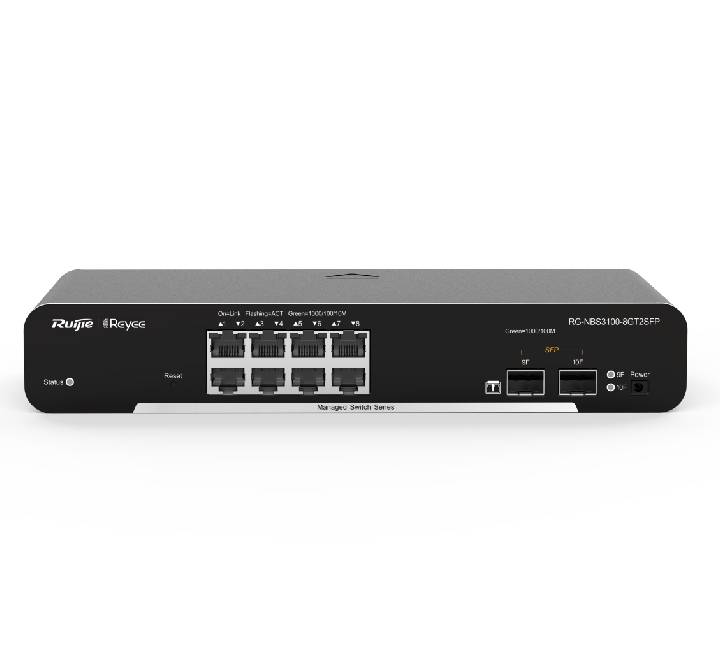

The Ruijie Reyee RG-NBS3100-8GT2SFP is a high-performance, enterprise-grade 10-Port Layer 2 Cloud Managed Non-PoE Switch tailored specifically for corporate backbones, branch offices, and professional IP surveillance networks across Myanmar. Featuring 8 Gigabit Ethernet ports alongside 2 dedicated high-speed SFP uplink slots, this switch introduces true enterprise-level stability, rigorous link aggregation parameters, and lifetime free cloud coordination to scaling business environments.
Key Features & Enterprise Capabilities
- High-Speed SFP Fiber Uplinks: Built with 2 SFP optical fiber module slots alongside 8 Gigabit Base-T ports, ensuring seamless long-distance trunk connections back to your central server room or provider node.
- Robust Layer 2 Processing Fabric: Engineered to process heavy concurrent loads effortlessly with a 20 Gbps switching capacity and a high-efficiency 14.88 Mpps packet forwarding speed.
- Intelligent Voice & CCTV Camera Optimization: Out of the box recognition algorithms dynamically identify connected IP cameras and VoIP hardware, instantly isolating traffic and rendering visual network maps within your app console.
- Advanced Defense and Network Isolation: Features robust MAC address filtering, broadcast/multicast storm control policies, DHCP Snooping, and up to 4,094 simultaneous VLAN allocations to prevent operational breaches.
- Industrial Surge & Lightning Shielding: Integrated ±6 kV surge suppression on all Ethernet service ports protects internal components against voltage spikes common in rural and urban Myanmar districts.
- Lifetime Free Ruijie Cloud Ecosystem: Monitor live port traffic metrics, manage configurations remotely, isolate looping segments via RLDP, and process firmware updates directly from your smartphone or laptop anywhere.
Why the RG-NBS3100-8GT2SFP Outperforms Standard Workgroup Switches
Unlike basic desktop or small office switches, the Ruijie Reyee NBS3100 series brings industrial resilience straight to your network edge. By natively integrating Link Aggregation Control Protocol (LACP), IT teams can bundle multiple physical connections into high-capacity logical pipes—boosting transmission bandwidth between your core framework and downstream endpoints.
Housed inside a premium, heavy-duty metal chassis, this switch relies entirely on a passive fanless thermal layout. This design guarantees completely silent operation for open desks or crowded retail hubs, eliminating the risk of mechanical fan failure in hot or dust-prone workspaces across Yangon and Mandalay regions.
Official Technical Specifications
| Specification Parameter | Official Engineering Metric |
|---|---|
| Brand / Product Series | Ruijie Networks / Reyee Real-Time Managed Series |
| Model Number | RG-NBS3100-8GT2SFP |
| Total Physical Port Count | 10 Ports (8 x RJ45 + 2 x SFP) |
| Ethernet Port Capacity | 8 x 10/100/1000Base-T Gigabit Access Ports |
| Optical Fiber Slots | 2 x 1GE SFP Uplink Slots |
| Power Over Ethernet (PoE) | Non-PoE Version (Built for raw data and fiber backhaul) |
| Switching Fabric Capacity | 20 Gbps Line-rate Switching |
| Packet Forwarding Rate | 14.88 Mpps Layer 2 Performance |
| MAC Address Table Size | 8,000 Entries (8K Architecture) |
| Packet Buffer Capacity | 4.1 Mbit High Dynamic Range |
| VLAN Allocation Limits | Supports up to 4,094 Concurrent IEEE 802.1Q VLAN IDs |
| Link Aggregation Groups | Up to 8 independent LACP groups (Max 8 interfaces per group) |
| Surge Shielding Protection | Service Interface: ±6 kV Common Mode | Power Input: ±6 kV |
| Cooling Matrix | Fanless Natural Passive Cooling (Zero Acoustic Noise) |
| Device Form Factor | Desktop or Compact Wall/Rack Mounting Support (Premium Metal Casing) |
| Physical Dimensions | 260 mm x 120 mm x 43.6 mm |
| Power Supply Architecture | Internal Fixed Switching Board: 100V AC to 240V AC, 50/60 Hz |
| Maximum Power Consumption | ≤ 11 Watts |
| Mean Time Between Failures | > 400,000 Continuous Hours (MTBF) |
| Official Product Warranty | 5-Year Limited Manufacturer Service Warranty |
Corporate Enterprise Sourcing & Wholesale Logistics
We provide original, factory-sealed enterprise network arrays at highly competitive rates for corporate project tenders and system integrators across Myanmar. Fast door-to-door delivery runs daily inside Yangon, Naypyitaw, and Mandalay. For regional deployment sites, secure delivery is fast-tracked through local highway terminal transport stations on the same business day your payment is cleared.
