Description
Engineered for High-Performance IP Surveillance & Business Networks

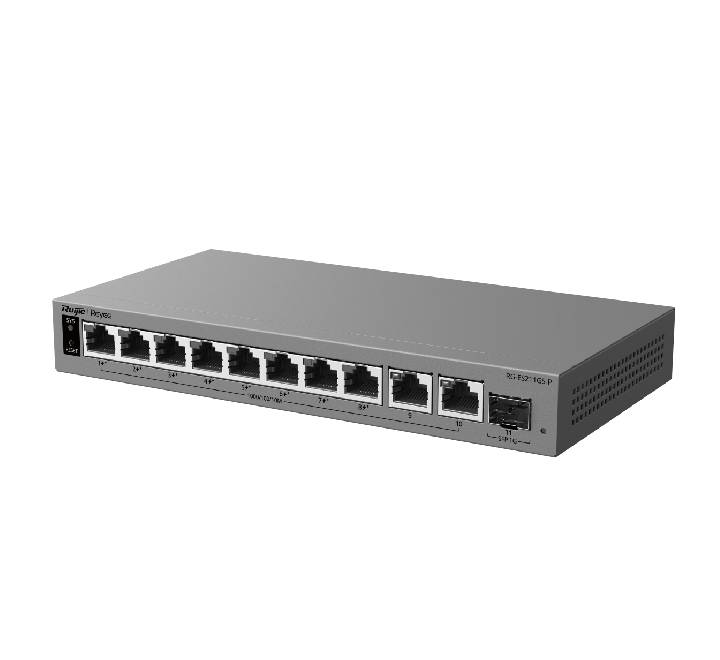

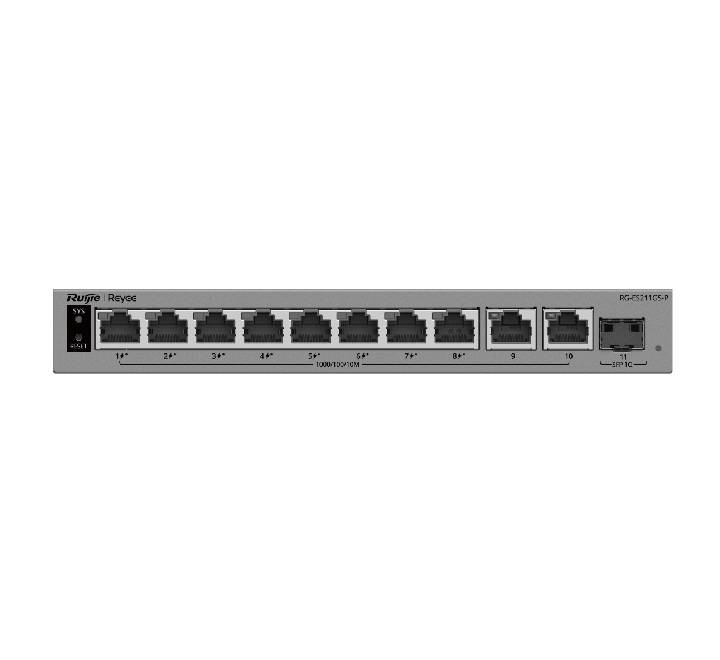

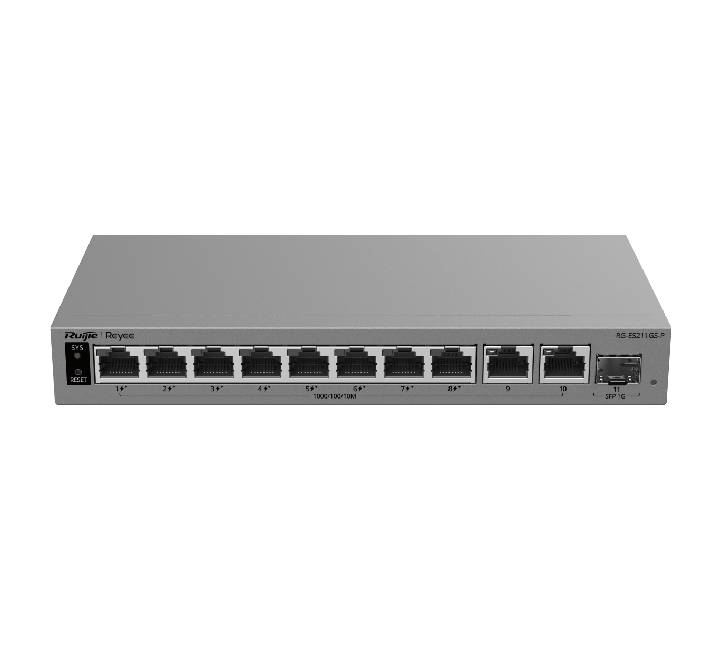

The Ruijie Reyee RG-ES211GS-P is an 10-port Gigabit Smart Cloud-Managed PoE Switch engineered for IP cameras, Wi-Fi access points, and office networks. Featuring 8 Gigabit PoE+ ports (120W total budget), 2 Gigabit Uplink ports, and 1 SFP optical uplink port, it provides high-speed, reliable connectivity with lifetime free cloud management.
Key Features & Highlights
- High Power 120W PoE Budget: 8 x Gigabit PoE/PoE+ ports (IEEE 802.3af/at) delivering up to 30W per port to power PTZ cameras, IP phones, and modern Wi-Fi 6 Access Points.
- Flexible Fiber Uplink (1 SFP + 2 RJ45): Equipped with 1 Gigabit SFP fiber port for long-distance building-to-building links and 2 Gigabit RJ45 ports for local NVR or router uplinks.
- Perpetual PoE Technology: Guarantees uninterrupted PoE power delivery to connected CCTV cameras and devices even when the switch undergoes firmware updates or reboots.
- IPC Recognition & Self-Healing: Automatically detects connected IP cameras, auto-generates network topology maps, and uses AI PoE Watchdog to reboot unresponsive cameras automatically.
- Lifetime Free Ruijie Cloud Management: Configure, monitor, and troubleshoot your network remotely via the Ruijie Cloud App or Web browser anytime, anywhere—with zero subscription fees.
- Industrial-Grade Surge Protection: Built with 6 kV surge protection on service ports and an energy-efficient fanless metal casing for 24/7 whisper-quiet operation in harsh environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Ruijie Reyee RG-ES211GS-P |
| Total Ports | 10 Ports (10 x RJ45 + 1 x SFP) |
| PoE Ports & Standard | 8 x 10/100/1000Base-T (IEEE 802.3af/at PoE/PoE+) |
| Uplink Ports | 2 x 10/100/1000Base-T RJ45 + 1 x 1000Base-X SFP Port |
| Total PoE Budget | 120 W (Max 30 W per port) |
| Switching Capacity | 22 Gbps |
| Forwarding Rate | 16.37 Mpps |
| MAC Address Table | 16,000 (16K) entries |
| VLAN Support | Up to 32 VLANs (IEEE 802.1Q) |
| Surge & ESD Protection | Service Port: 6 kV Common Mode | ESD: 8 kV Air / 6 kV Contact |
| Fan Design & Casing | Fanless (Silent Cooling), Durable Metal Shell |
| Dimensions (W x D x H) | 205 mm x 105 mm x 28 mm (8.07" x 4.13" x 1.10") |
| Weight | 0.45 kg (Product) / 1.19 kg (Package) |
| Management Platform | Ruijie Cloud App, Web GUI Management |
