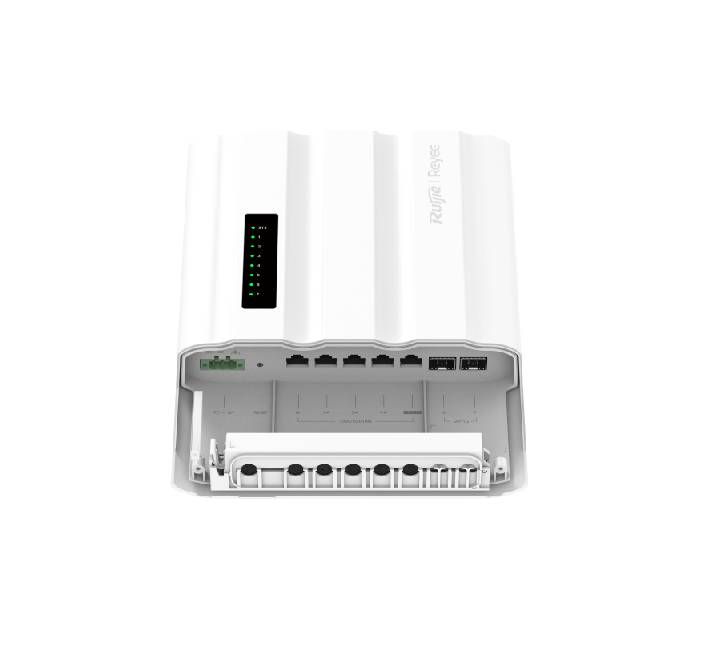

Ruijie Reyee RG-ES207GS-PI-OD is an all-in-one 7-Port Outdoor Gigabit Smart Cloud-Managed Switch engineered specifically for solar power systems, pole-mounted CCTV camera setups, and outdoor locations across Myanmar where direct AC electrical lines are unavailable.
Why Choose the Ruijie Reyee RG-ES207GS-PI-OD Outdoor Switch?
Deploying IP surveillance on high poles, perimeter fences, or off-grid solar sites in Myanmar often presents a severe power challenge. The Ruijie Reyee RG-ES207GS-PI-OD eliminates the need for 220V AC grid power at the installation point. Operating directly on 12V DC input or PoE In (up to 90W IEEE 802.3bt), it accepts power from a primary switch or solar battery bank and passes PoE power to up to 4 outdoor IP cameras while supporting 2 x SFP fiber uplinks for long-distance connectivity.
Key Features & Advantages
- Flexible PoE In / 12V DC Powering: Powers up via 802.3af/at/bt PoE Input on Port 5 or local 12V DC power—ideal for solar battery systems and remote poles.
- Up to 60W PoE Budget Output: Delivers up to 60W total PoE power (when receiving 90W PoE++ input) across 4 x IEEE 802.3af/at PoE/PoE+ output ports.
- 2 x SFP Fiber Uplink Ports: Supports ERPS ring topology and long-range optical links back to main control rooms or core switches.
- IP65 Weatherproof & Rugged Enclosure: Certified dustproof and water-jet resistant with an operating temperature range of -30°C to +65°C.
- ±8 kV Enhanced Surge Protection: Commercial-grade port lightning protection protects connected IP cameras from voltage spikes.
- Continuous CCTV Uptime: Features PoE Watchdog for automatic camera freeze detection/rebooting and Perpetual PoE to maintain power during switch maintenance.
- Free Lifetime Ruijie Cloud Management: Configure, monitor, and manage network health remotely via mobile app or web browser anywhere in Myanmar.
Watch Installation & Overview Guide
Technical Specifications
| Specification | Details |
|---|---|
| Model | RG-ES207GS-PI-OD |
| Total Ports | 5 × RJ45 Gigabit + 2 × 1GE SFP Optical Ports |
| PoE Output Ports | 4 × 10/100/1000Base-T (IEEE 802.3af/at PoE/PoE+ Out) |
| Power Input Options | Port 5 IEEE 802.3af/at/bt PoE In OR 12V DC Power Terminal |
| PoE Output Budget | 60W (with 90W PoE++ In) / 40W (with 60W PoE++ In) / 19W (with 30W PoE+ In) |
| Switching Capacity | 14 Gbps |
| Forwarding Rate | 10.42 Mpps |
| Ingress Protection Rating | IP65 Waterproof & Dustproof Casing |
| Surge Protection | ±8 kV (PoE Ports) / ±2 kV (Power Input) |
| Operating Temperature | -30°C to +65°C (-22°F to 149°F) |
| Cloud Management | Ruijie Cloud App, Web GUI, SON Auto-Discovery |
Frequently Asked Questions
Q: What is the difference between RG-ES207GS-AC-OD and RG-ES207GS-PI-OD?
A: The AC-OD model requires direct 100-240V AC line power. The PI-OD model accepts power via PoE In (IEEE 802.3af/at/bt) or 12V DC power input, making it ideal for solar power poles and sites without AC power lines.
Q: How much PoE power can the RG-ES207GS-PI-OD output to cameras?
A: The output budget depends on the power source: 60W when receiving 90W PoE++ input, 40W when receiving 60W PoE++ input, and 19W when receiving 30W PoE+ input.
Q: Can I use this switch for off-grid solar CCTV installations in Myanmar?
A: Yes! It can run directly off a 12V DC battery/solar charge controller setup while providing regulated PoE power to connected outdoor cameras.
