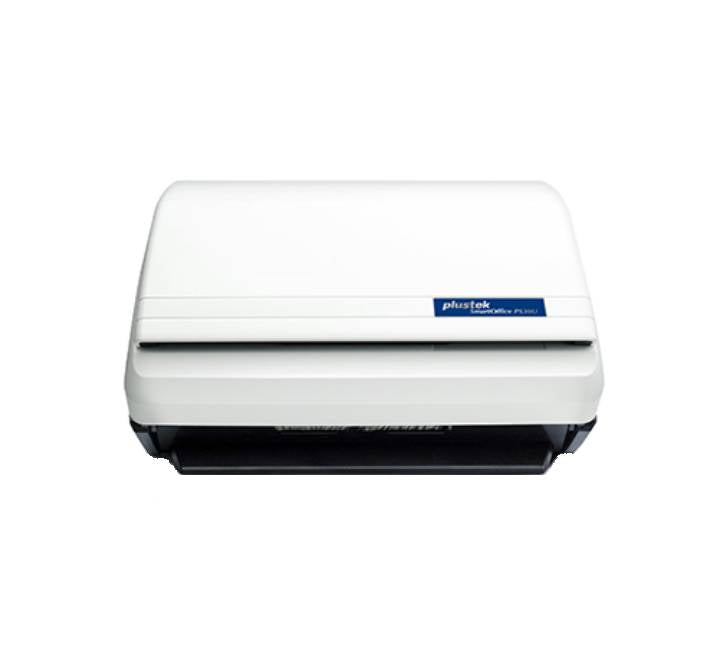

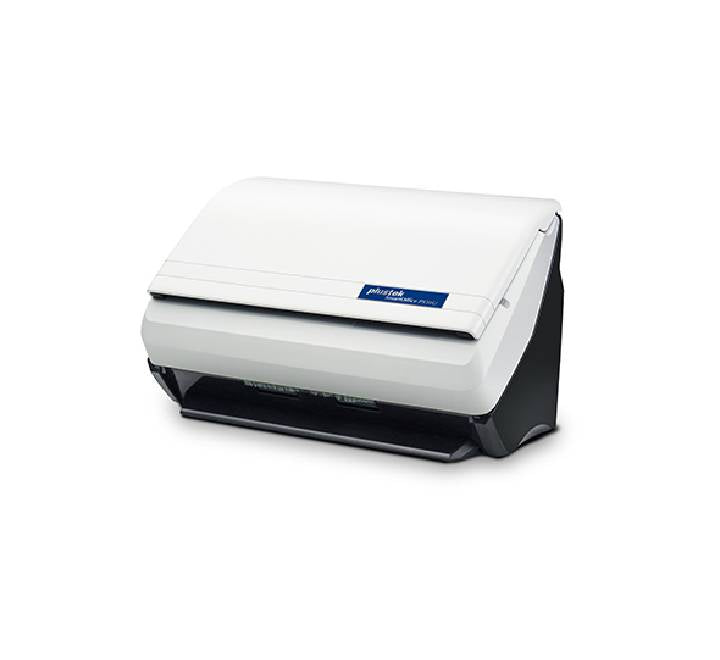

Plustek SmartOffice PS30U Office Scanner

Plustek SmartOffice PS30U Office Scanner

• Brand: Plustek

• Model: PS30U

• Color: White

• Image Sensor: CIS x 2 (Duplex Scanner)

• Light Source: LED

• Optical Resolution: 600 dpi

• Interpolated Resolution: 1200 dpi

• Hardware Resolution: 600 x 1200 dpi
  Scan Modes

• Color: Input 48-bit, Output 24-bit

• Grayscale: Input 16-bit, Output 8-bit

• Black & White: 1-bit
  ADF Capacity

• 50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 5mm (0.2").

• 20 sheets (Business Cards).

• Plastic Card, Max. thickness under 1.2 mm.

• Note: Maximum ADF capacity varies, depending upon paper weight.
  Scanning Speed ( ADF )

• 30 ppm/ 60 ipm (Grayscale mode, 200 & 300 dpi, A4 Portrait)

• 30 ppm/ 60 ipm (B&W mode, 200 & 300 dpi, A4 Portrait)

• 30 ppm/ 60 ipm (Color mode, 200 & 300 dpi, A4 Portrait)

• Note: Results may vary depending upon your scanning application, computer processor and system memory.
  Scanning Area (W x L)

• Max: 216 x 5080 mm | [us] Max: 8.5” x 200”

• Min: 13.2 x 13.2 mm | [us] Min: 0.52” x 0.52”

• Acceptable Paper Sizes (W x L)

• Max: 220 x 5080 mm (8.66” x 200”)

• Min: 63.5 x 50.8 mm (2.5” x 2”)

• Acceptable Paper Weight (Thickness): 50 to 105 g/㎡ (14 to 28 Lbs)

• Multi-feed Detection: With ultrasonic technology

• Daily Duty Scan ( Sheets ): 4,000

• Roller Lifetime (Scans): 300,000

• Pad Lifetime (Scans)    : 50,000
  Action Button

• 3 Buttons: Up, Down, Scan.

• 9 Function Keys. All Customizable.

• Power Supply: 24 Vdc/ 0.75 A

• Interface: USB 2.0 Type B

• Net Weight: 1.66 kg | [us] 3.66 lbs

• Dimensions (W x D x H): 263 x 128 x 148 mm | [us] 10.36" x 5.02" x 5.83"

• Protocol: TWAIN Compliant
  Operating System

• Windows 7 / 8 / 10 /11

• Linux compatibility is only available for system integrators. Please contact sales@plustek.com for more info.
  Hardware Requirements

• 3.2 GHz CPU processor or higher[1]

• [1]Windows Recommended: 3.2 GHz Intel® Core™ i7 Processor with 4 CPU Cores or higher

• 4 GB RAM minimum (Recommended: 8 GB or more)

• 6 GB of hard-disk space for program installation

• Display dimensions of 1024x768 or greater
  Bundled Software

• Plustek DocAction

• Plustek DocTWAIN

• Plustek MacAction
  Plustek ICA

• Built-in OCR

• Plustek OCR (For Windows)
  (Powered by ABBYY® FineReader®)

• Plustek DocOCR (For Mac)

• Warrranty: 1 Year (Parts & Service)
