Description
Heavy-Duty Enterprise Power Protection for Maximum Infrastructure Uptime

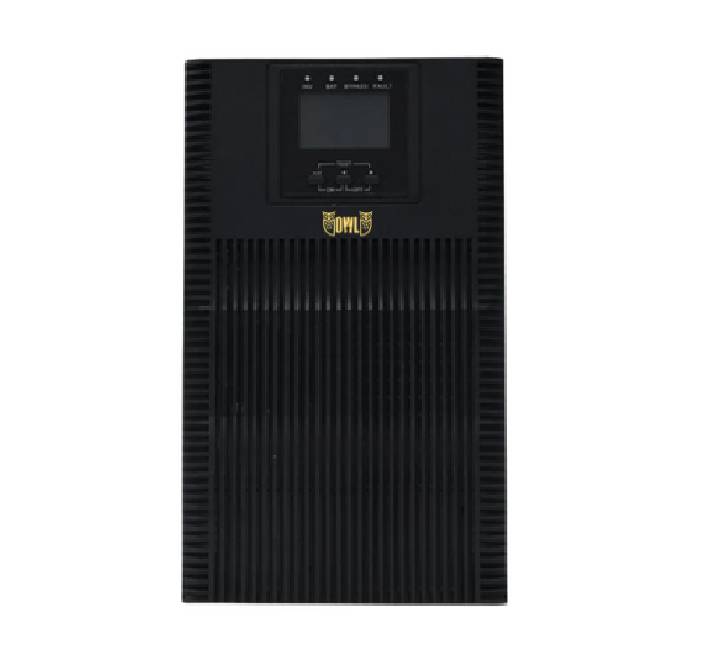

The OWL T3K Tower Type High-Frequency Online UPS (3000VA / 3kVA) is a heavy-duty, professional-grade uninterruptible power supply engineered to safeguard critical enterprise infrastructure. Delivering an impressive 2700 Watts of continuous, pure sine wave power, this true online double-conversion UPS completely isolates high-end corporate servers, large networking switches, surveillance control rooms, and medical equipment from severe power fluctuations, brownouts, and unexpected grid blackouts with zero interruption.
Key Features
- High-Capacity 2700W Load Output: Featuring a robust 0.9 power factor, it provides elite power density to keep complex server stacks and high-draw processing hardware active safely.
- True Online Double-Conversion Topology: Isolates connected electronics from the main grid entirely by converting raw AC to DC, and back to pristine, stable AC current under all conditions.
- Zero Transfer Delay (0ms): Ensures an instantaneous, flicker-free switchover from utility grid power to the internal battery bank, preventing any system crashes or database corruptions.
- Digital Smart LCD Control Dashboard: Comprehensive front-facing monitor interface provides immediate metrics on system load levels, structural temperature, remaining battery backup runtime, and voltage parameters.
-
Advanced DSP & Power Factor Correction: Leverages Digital Signal Processing (DSP) technology combined with input power factor correction (>99%) to maximize power efficiency and performance stability.
- True online double-conversion technology
Output power factor is 1, kVA/kW
High efficiency, AC to AC 95%
Auto fan speed adjustment
Wide input voltage range, 110Vac to 300Vac
Emergency power off function (EPO)
Generator compatible
LCD display & LED indicator
Battery cold start
ECO mode operation for energy saving (ECO)
Digital charging design, Adjustable from 1-4A
Smart RS232/USB port with monitoring software (optional)
Intelligent slot, support optional SNMP / RS485 / AS401 card
DSP (Digital Signal Processing) technology guarantees high performance
Advanced PFC (Power Factor Correction) technology, input PF>99%
-
Input
RatedVoltage: 208/220/230/240Vac,L+N+PE
VoltageRange: 110~300Vac
FrequencyRange: 50/60±6Hz
PowerFactor: ≥0.99
THDi: ≤4%(linear load);≤5%(non-linear load)
-
Output
RatedVoltage: 208/220/230/240Vac,L+N+PE
Voltage Regulation: ±1%
Frequency: 50/60Hz±0.1%
-
Efficiency
Line Mode: 95.5%
Battery Mode: 91.5%
-
Battery
Type: Sealed lead acid maintenance free
NominalVoltage: 72/96VDC
BatteryNumber: 9Ah*6pcs
ChargeCurrent: 1A(1-4A)
Charging Mode: Two/Three-period charging
-
Physical
Dimensions(W*D*H)mm: 190*418*322
Weight(kg): 23.5
Technical Specifications
| Specification Category | Product Details |
|---|---|
| Model Name & SKU | OWL T3K (Tower Type High-Frequency Online Series) |
| Power Capacity Rating | 3000 VA / 2700 Watts (0.9 Output Power Factor) |
| Circuit Architecture | True Online Double-Conversion (High Frequency) |
| Input Voltage Window | 110 Vac – 300 Vac (Protects against extreme grid voltage drops) |
| Output Waveform | Pure Sine Wave Output (Total Harmonic Distortion THDv ≤ 2%) |
| Transfer Runtime | 0 ms (Absolute instantaneous switchover from Line to Battery Mode) |
| Frequency Adaptability | 50Hz / 60Hz Automatic Auto-Sensing Frequency Synchronization |
| Battery Configurations | High-capacity Built-in Sealed Lead-Acid (VRLA) Maintenance-Free Batteries |
| Efficiency Optimization | Up to 95% AC-to-AC Eco-Mode Optimization efficiency |
| Intelligent Connectivity Ports | Smart RS232 Panel / USB Interface / Extension Slot for Optional SNMP Card Management |
| Thermal Dissipation | Automated Smart Multi-Speed Cooling Fan System |
